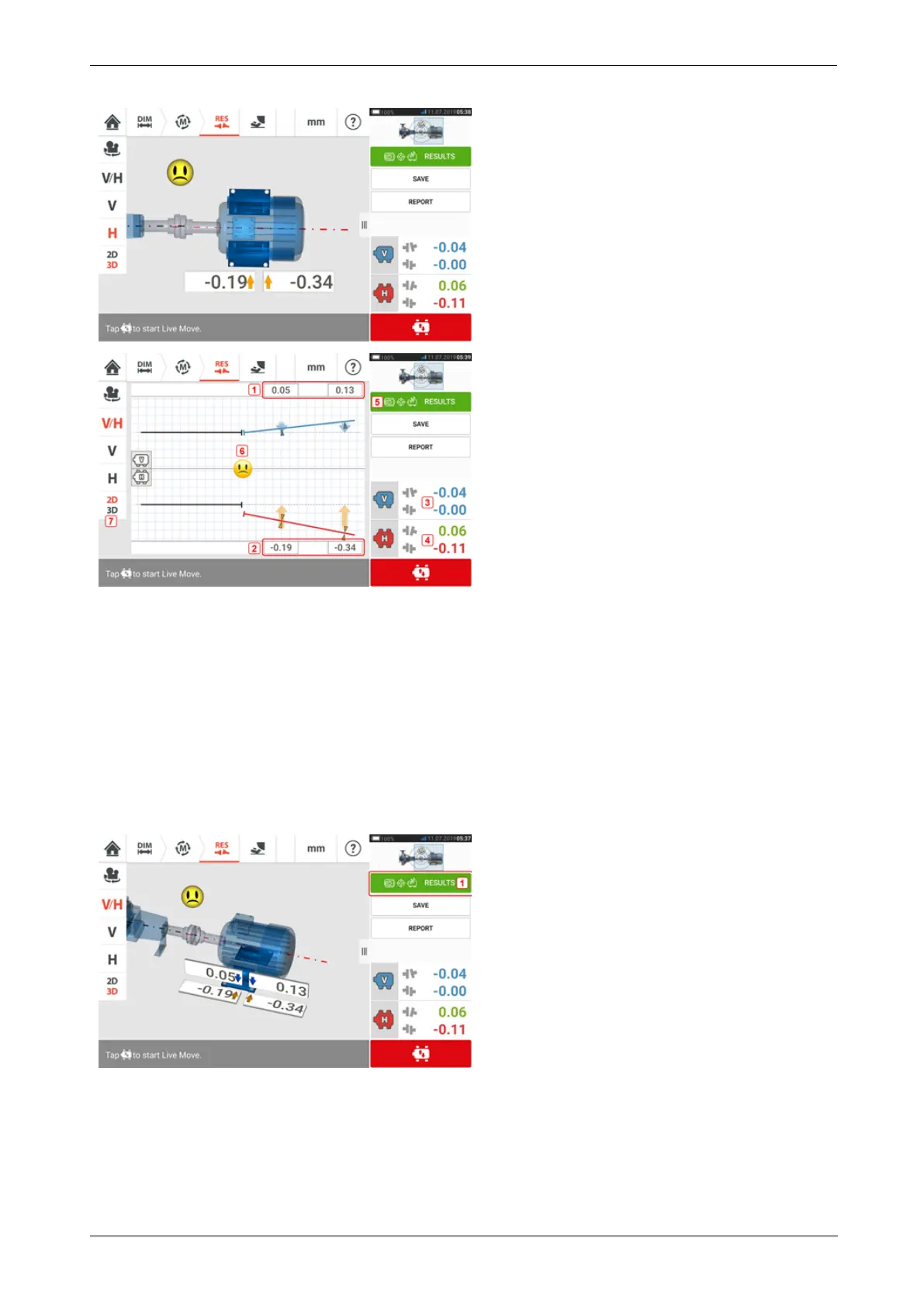

l (1) Vertical foot position results
l (2) Horizontal foot position results
l (3) Vertical coupling results
l (4) Horizontal coupling results
l (5) Selected results mode
l (6) Alignment condition tolerance symbol
l (7) Horizontal and Vertical foot results in 2-D
Results options
Alignment results may be displayed in three different options. To access the available options,
tap 1.
74 Version:2.3
On-board help
