l (2) Location where asset is positioned
l (3) Asset (Machine)ID
l (4) Name of operator
l (5) Any other machine relevant notes
l (6) Date is set automatically
l (7) In this case, "Results as found" has been activated
The following elements are also found on the "Generating report" screen.
l
(8) Tap to preview the asset measurement report
l
(9) Tap to save the asset measurement report as PDF to the rugged device.

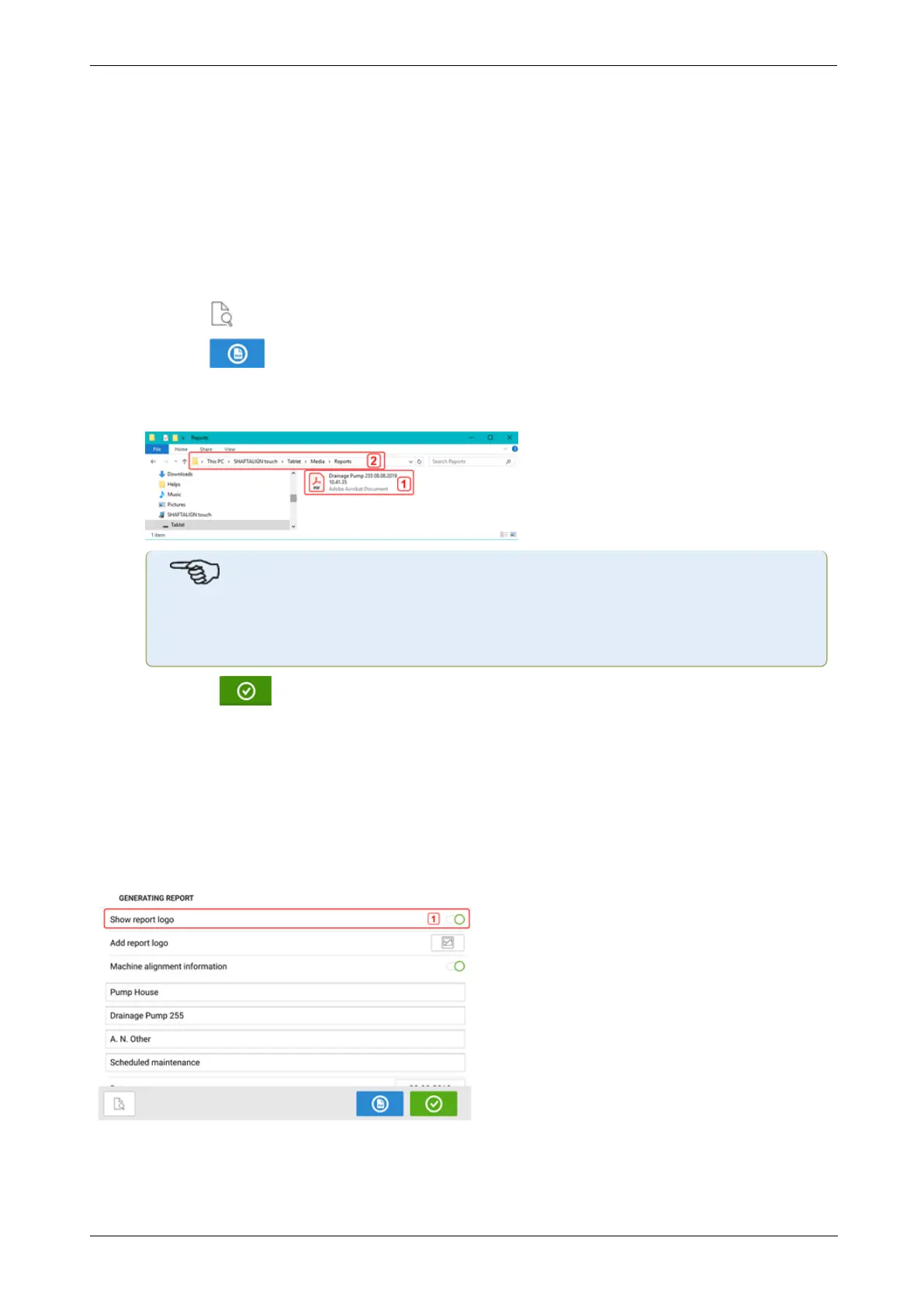

The report as a PDF (1) may be accessed by connecting the rugged device to a PC. The
report is located in the folder "Reports" which is accessed via
"SHAFTALIGNtouch\Tablet\Media\Reports".
l
Note
The generated PDF report saved together with the asset may also be accessed via
the software platform ARC 4.0 in "Asset Attachments".
l
(10) Tap to save any information entered, and then exit the "Generating report"
screen
Report logo
The desired report logo must initially be saved within the rugged device before it can be added
to the measurement report. The following image formats are supported: png, bmp, jpg and
jpeg
Note: Adding a new logo to the report logo gallery is only possible if the item "Show report
logo" is activated (1).
l With the rugged device device connected to a PC and access allowed, save the desired
logo in the folder "Logos" which is accessed via
