User defined tolerances

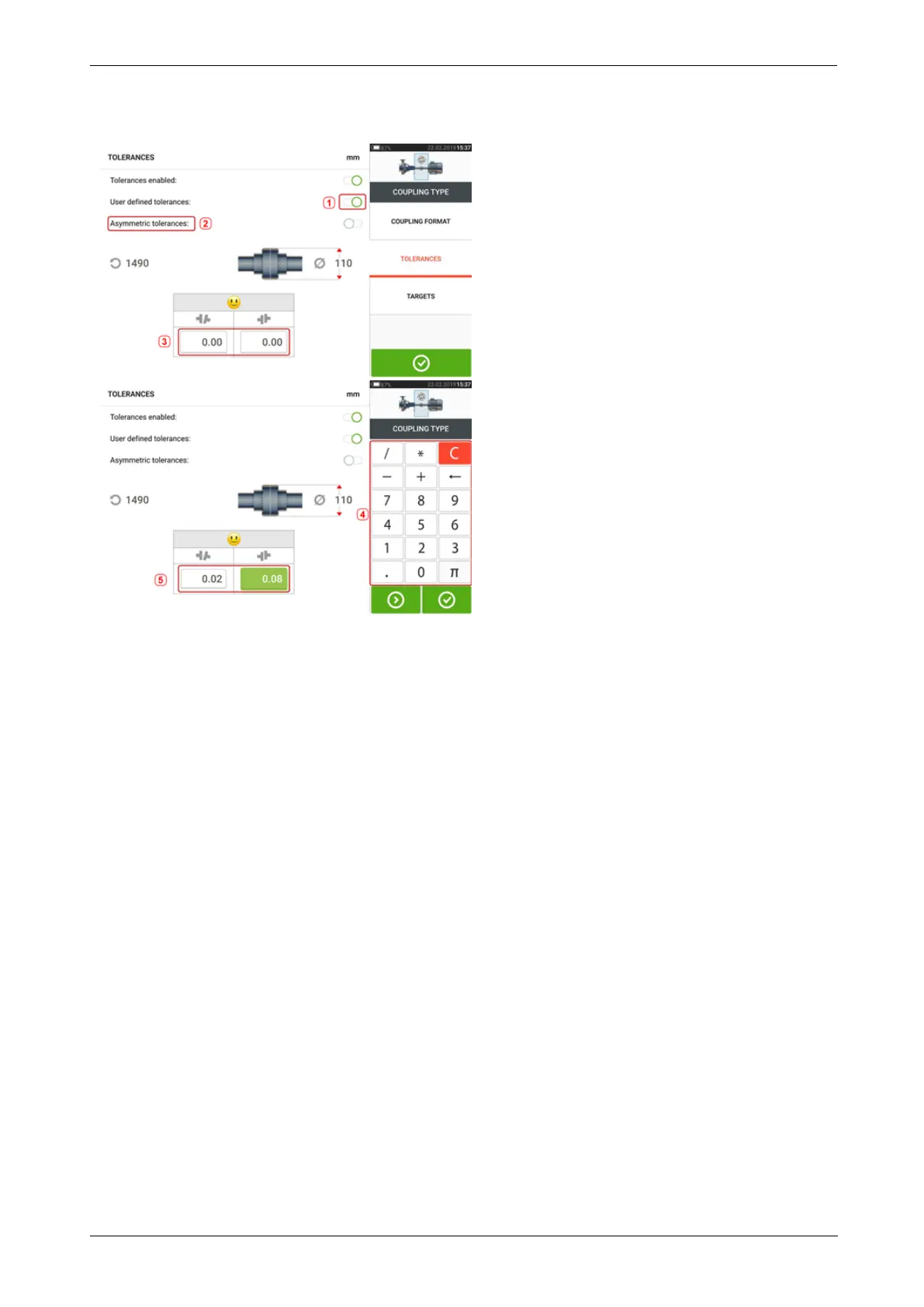

Swipe the icon (1) to the right to enable user defined tolerances. Asymmetric tolerances (2)
can be activated only when user defined tolerances are enabled. In asymmetric tolerances,
the tolerance values for the two coupling planes are not the same. Tap (3) to edit user defined
tolerances using the onscreen keyboard (4). The edited values are then displayed (5).
