NOTE: The ignition switch must be on for the
high beams to work.
Marker Lights
Turn the headlight switch clockwise to past the off
position. See Fig. 5.6.
Marker Interrupt
The marker interrupt switch, located in the right-hand
switch pod of the steering wheel, temporarily flashes
the marker lights. See
Fig. 5.7.
AUX
HIGH
DRL
OVRD
UTLY
LAMP
FOOT
WELL
DOME
DOME
REAR
DOME
REAR
DOME
LWR
LAMP
LWR
LAMP
01/05/2012 f611155
1 2 3 4 5 6
7 8 9 10 11
1. Auxiliary High Beam Light Switch
2. DRL Override Switch
3. Utility Light Switch
4. Cab Foot Well Light Switch
5. Panel Lights Switch
6. Rear Cab Dome Light Switch
7. Rear Cab Dome Light Switch
(mounted in sleeper)
8. Sleeper Rear Dome Light Switch,
Driver Side
9. Sleeper Rear Dome Light Switch,
Passenger Side
10. Sleeper Reading Light Switch,
Driver Side
11. Sleeper Reading Light Switch,
Passenger Side

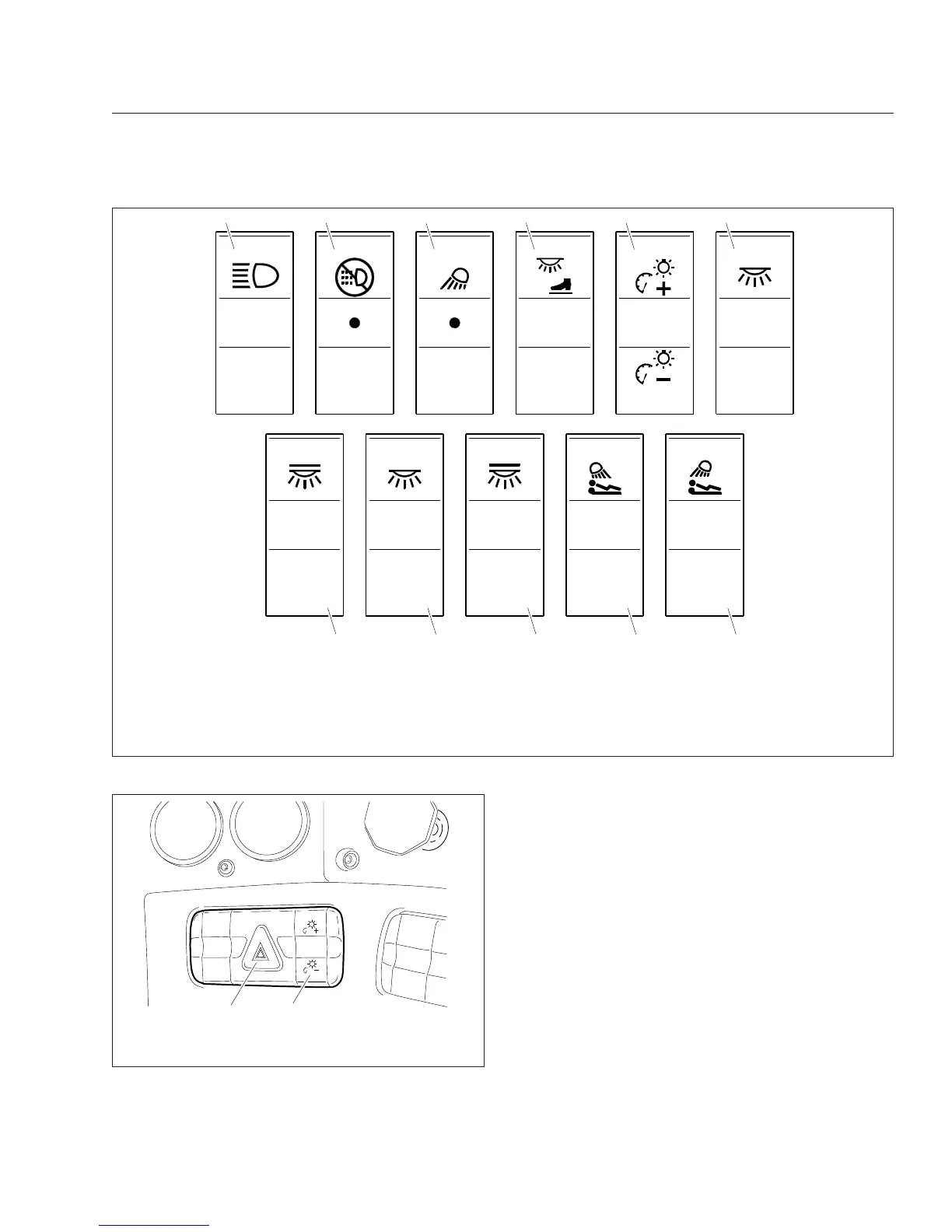

Fig. 5.4, Dash-Mounted and Sleeper-Control Light Switches
03/20/2007
1
f610855
2
1. Hazard Warning
Switch
2. Panel Lights Dimmer
Switch
Fig. 5.5, Master Module
Driver Controls
5.4
