4
23
Left odometer
cable
Rear left wire sensor
& bumper cables
Rear right wire
sensor cable
Ri
g
ht odometer
cable
Drive motors
cable

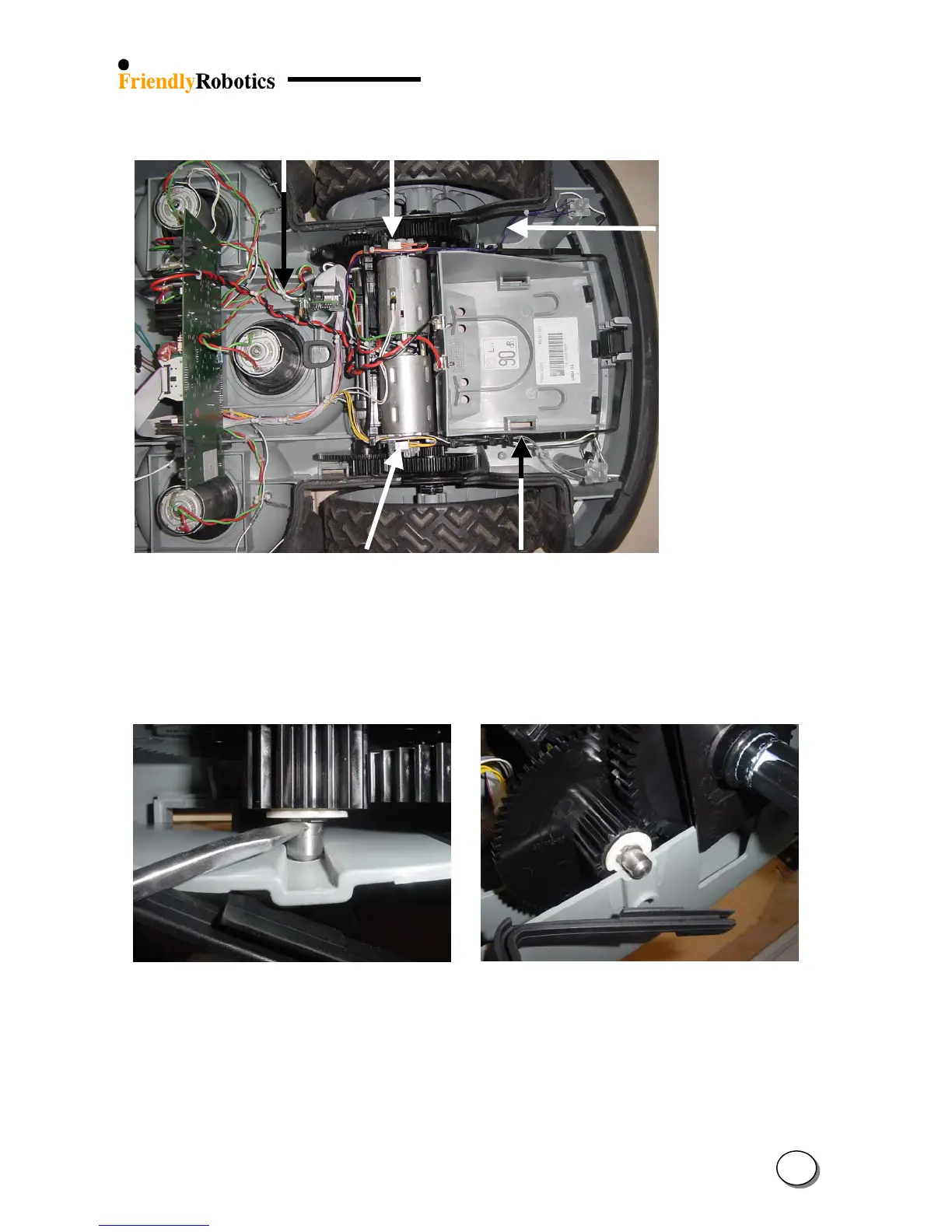

Figure 4.2.6.1.1
Cable around
the gear case
K. Place the ground clearance adjustment lever on top of the rear bumper from the chassis.
L. Insert a wide flat screwdriver between the left base wall and the short shaft bushing and pry
them apart, as illustrated in Figure 4.2.6.1.2. Lift the shaft out of the hole and place the end of
the short shaft on the base wall, as illustrated in Figure 4.2.6.1.3.
Figure 4.2.6.1.2 Figure 4.2.6.1.3
Removing the short shaft out of its position Short shaft on the base wall
M. Repeat step L for the right side of the short shaft.
N. Lift the gear case out of the base.
O. Take the new gear frame and position it around the battery cavity.
