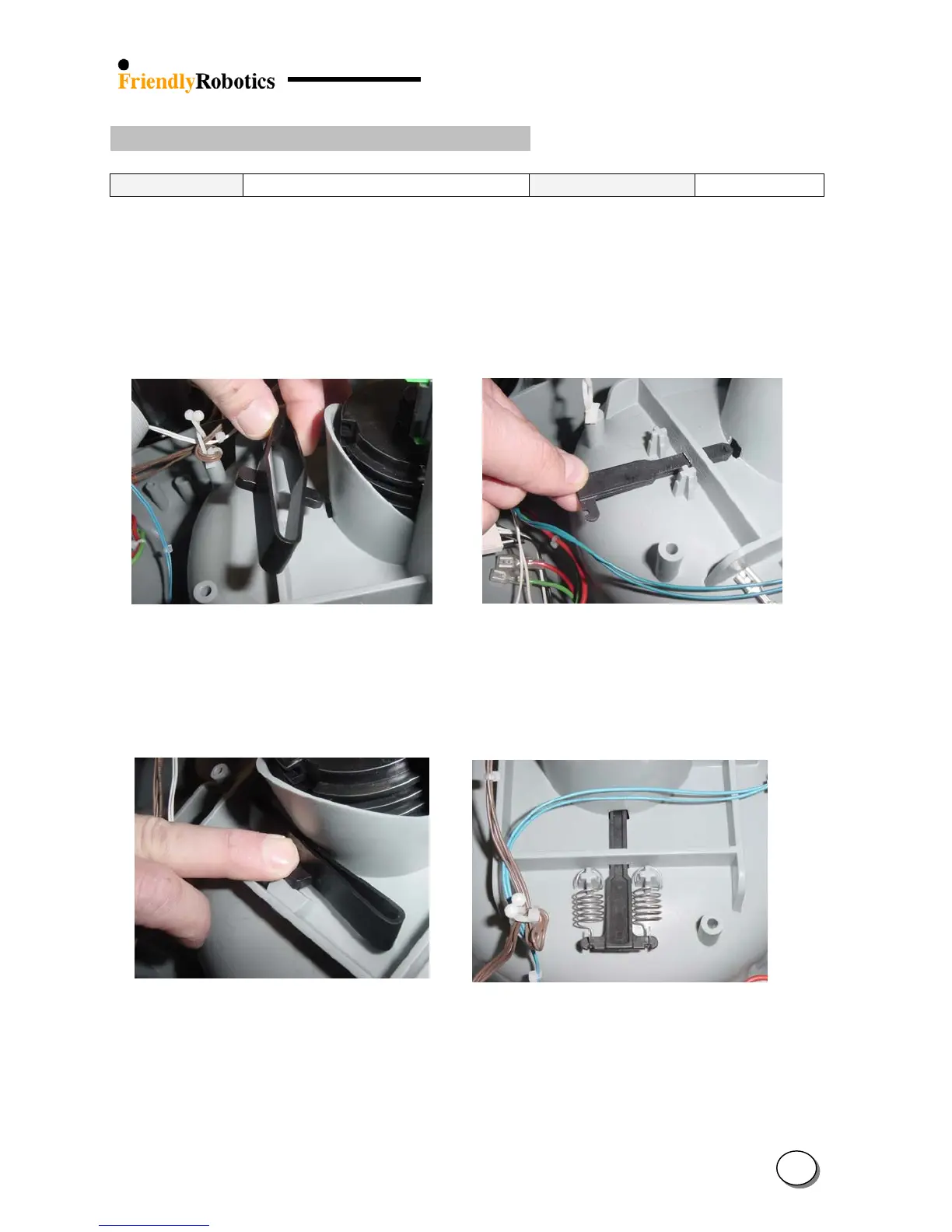

4.2.12 Front wheel spring/locker replacement
Required tools: Wide flat screwdriver Procedure duration: 10 minutes
NOTE: Read Service Bulletin #RL0536-05 - Front Wheel Detent Change (Section 7.1) before
starting this procedure.
A. Remove the Power Pack from the Robomow.
B. Remove the cover, as outlined in section 4.2.1.
C. Locate the broken spring clip / stopper and remove it from its place.
D. Insert the new part, as illustrated in the Figures below:
Figure 4.2.12.1
Insertion of the first
side of a s
rin
cli
Figure 4.2.12.2
Insertion of the front
wheel sto
er to it
lace
E. Squeeze the old configuration spring clips as illustrated in Figure 4.2.12.3 below.
F. Add the two springs (in the new configuration) the secure the stopper in its place, as illustrated
in Figure 4.2.12.4.
Figure 4.2.12.3
Proper attachment of the Thermistor
to the Drive motor shading
Figure 4.2.12.4
Proper position of the front
wheel stopper with the springs
G. Rotate the front wheel height adjustment and verify it “clicks” into place every turn.
H. Return the cover as outlined in section 4.2.2.
I. Complete the General Test as outlined in section 5.1.
