Friendly Robotics robomower RL800 - Robomow Layout and Main Components

1.1 Robomow layout and main components
1.1.1 Robomow top view
8
9
10
2
Charging contacts
(for Charging
Station
)
SPP0026A
Knobby drive wheel
MSB0099A
Smooth drive wheel
MSB0078A
Manual Controllers
MSB0112A (tones)
MSB0114A (speech)
MSB0118A (ESBC050B+)
MSB0119A (Enhanced)
Manual Controlle
r
holder assembly
MSB0105B
Operation lamp
cover
S
PP
003
2A
Front Bumper
MSB0106B
RL Model Stickers
RL350 – STC0057A
RL800 – STC0051A
RL550 – STC0048A
RL850 – STC0049A
RL1000 – STC0056A
1
RL Yellow Cover GEN0094A
RL Green Cover GEN0227A
Left
Side
Right
side
7
2
6
5
4
3
Power Pack
UNT0009A
Rear
Rear Bumper
MSB0107A

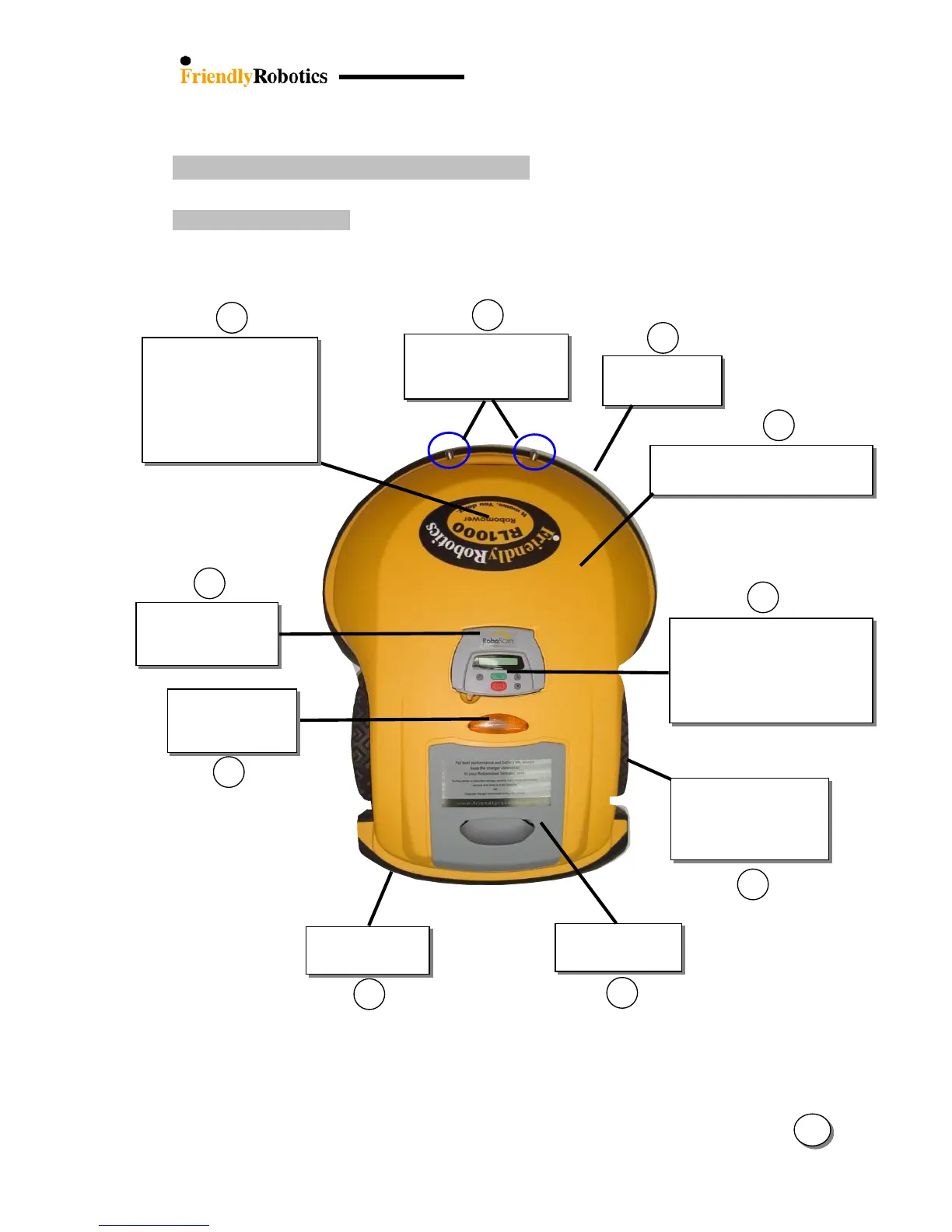

Figure 1.1.1 Top view
