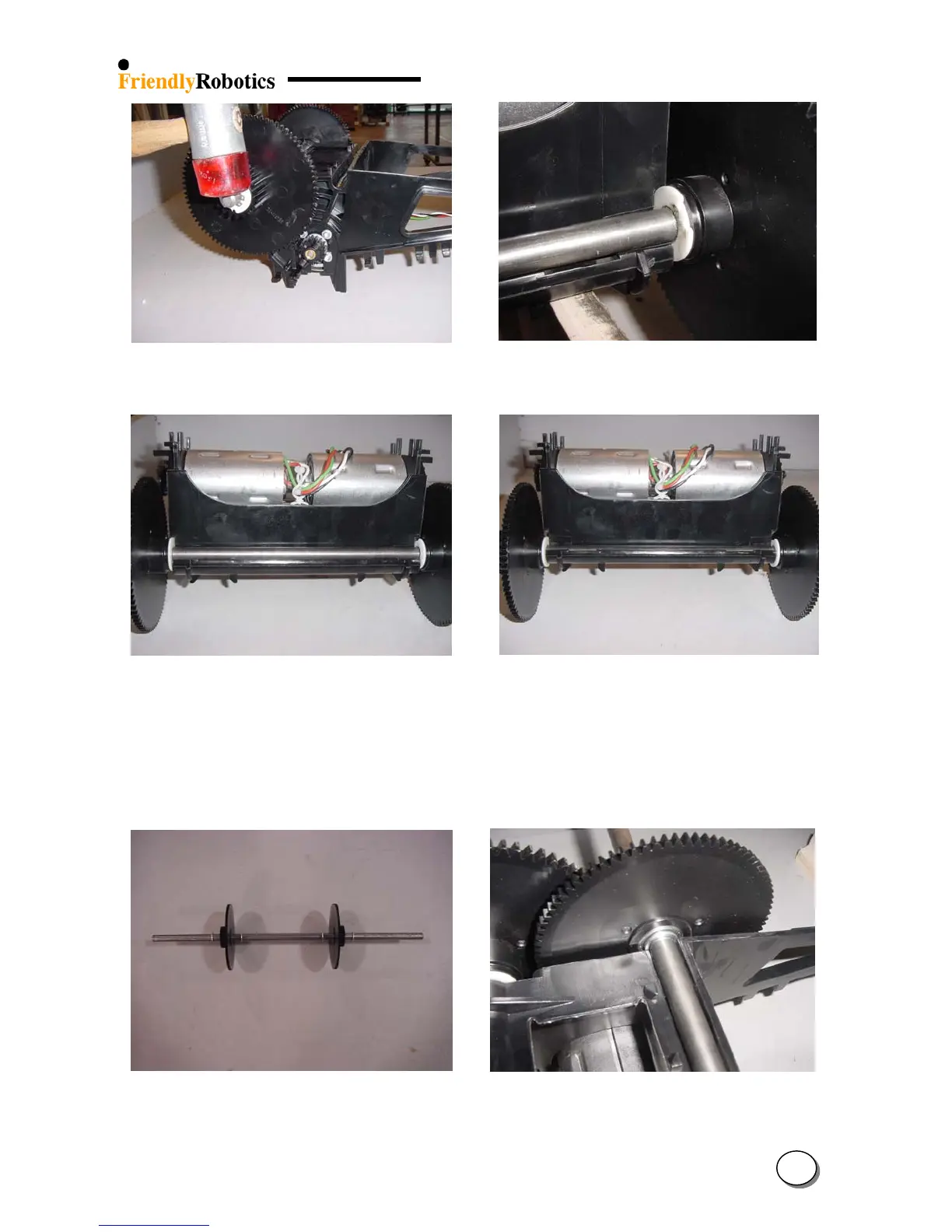

Figure 4.2.6.4.5 Figure 4.2.6.4.6
Extracting the long shaft out of a gearbox Short shaft placement in the gear frame groove
Figure 4.2.6.4.7 Figure 4.2.6.4.8
Short shaft placement Short shaft placement
K. Take the long shaft, 2 gears and 4 rings and place them on the long shaft, 2 rings between the
gears and 2 rings outside the gears, as illustrated in Figure 4.2.6.3.9.
L. Place the long shaft in its groove in the frame. Make sure both rings are outside the frame, as
illustrated in Figure 4.2.6.3.10.
Figure 4.2.6.4.7 Figure 4.2.6.4.8
Long shaft composition Long shaft placement in the gear frame
4
29
