Service Bulletin #RL0536-04
Technical Service Bulletin
Date: September 20, 2005
Product Model: RL500/550/800/850
Serial Range: IRL03010000 and onwards
Part Number: GEN0094A
Countries Affected: All
RL Top Cover (GEN0094A) Water Drain Changes
A modified top cover was introduced in 2003 to accommodate changes in the water drain
routing. This modification will not be included on the supplied spare part GEN0094A.
RL Top Cover spare part (GEN0094A) is received as shown in Figure1. If you are servicing a
Robomower with a S/N
IRL02340100 and older use the Top Cover as received without
modifications.
If the S/N is
IRL0301… and onwards, follow the modifying instructions below:
1. Cut an opening in the plastic as shown in Figure 2, to allow water to drain.
2. Note that the opening is done on the circular side of the extension.

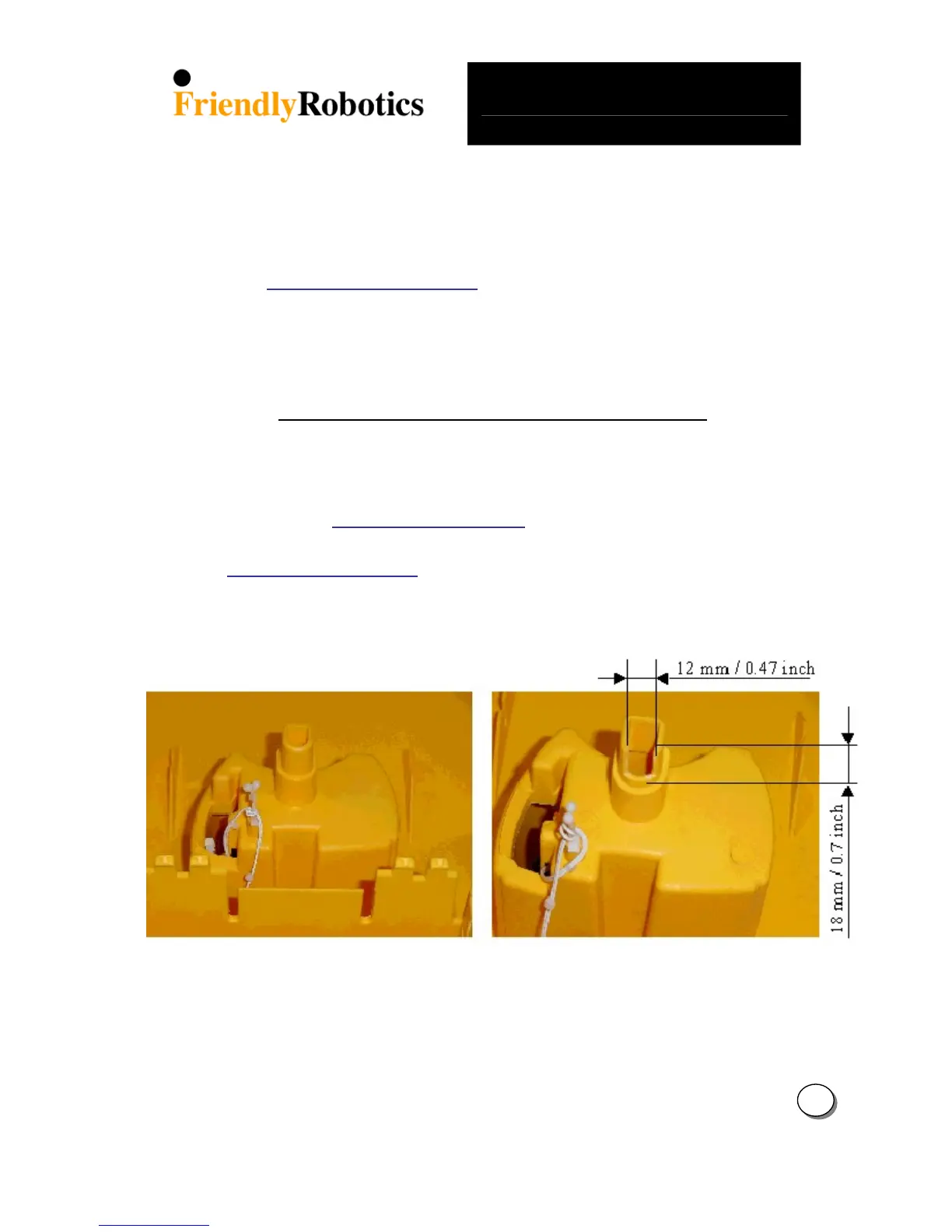

Figure 1 Figure 2
