Service Bulletin #RL0340-10
Technical Service Bulletin
Date:
October 02, 2002
Part Number:
SPP0020A
Product Model:
All
Serial Range:
All
Thermistors Kit (SPP0020A) Installation Instructions
The following instructions are in addition to the standard procedure defined in the Service
Guide.
7
2

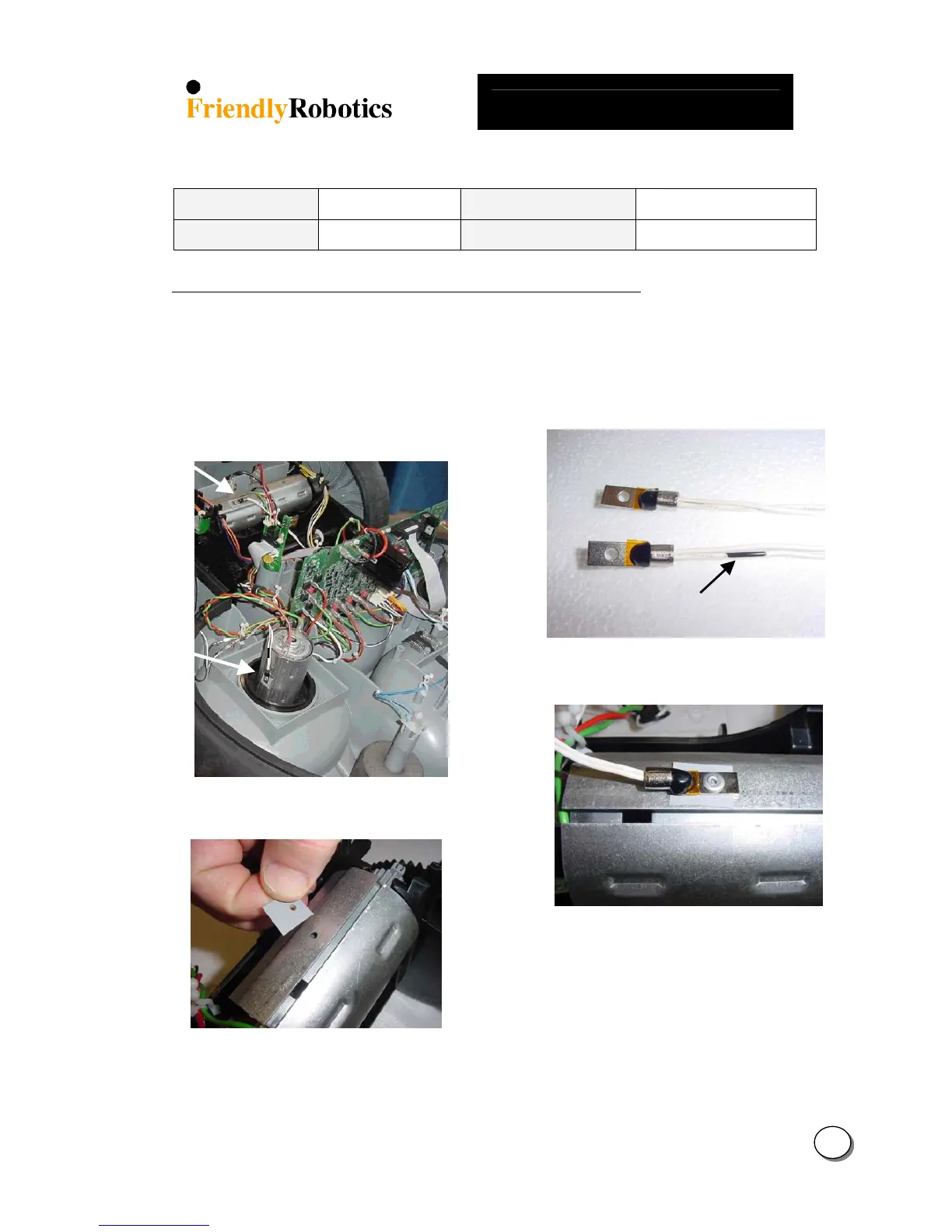

1. Thermistors should be assembled to
the right motors (Drive and Mow).
Confirm the motor shields are round
(if it is hexagon replace them)
3. Confirm the cable with the black mark
is connected to the Mowing side.
2. Pad Placement
4. Attach the pop rivet with the Thermistor to
the motor shield (view from the rear side)
5. Remove the left piece of the pop rivet
Mowing side
