4.1.4 Front Wheel with axle replacement (SPP0011A)
Required tools: Flat screwdriver Procedure duration: 10 minutes
A. Remove the Power Pack from the Robomow.
B. Turn the Robomow on its back and place it on a soft surface to protect it from scratches.
C. Unscrew the front wheel, as illustrated in Figure 4.1.4.1 all the way until the highest mowing
position.
D. Identify the front wheel spring/stopper and its latch that is preventing the complete removal of
the front wheel. Insert a screwdriver into the notch and push
backwards, as illustrated in Figure 4.1.4.2.

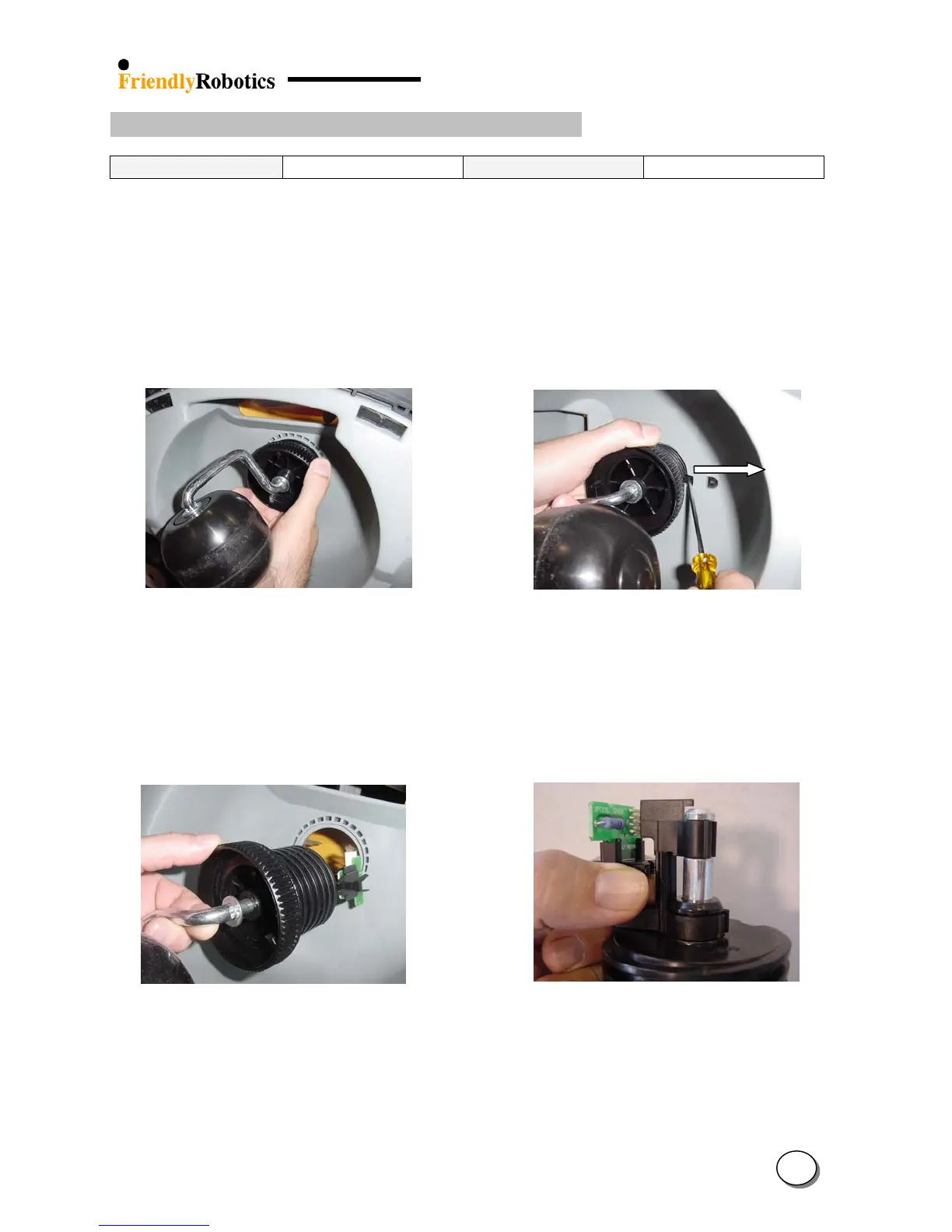

Figure 4.1.4.1 Figure 4.1.4.2
Unscrewing the Front Wheel Retracting the front wheel
spring/stopper for front wheel removal
E. While the stopper is in the retracted position, unscrew the front wheel completely and remove it
slowly from its hole, taking care not to strain the wire connection (Figure 4.1.4.3)
F. Remove the Holder with the drop-off board by pulling hard on the holder (Figure 4.1.4.4).
Figure 4.1.4.3 Figure 4.1.4.4
Front Wheel removal from its cavity Removal of the drop-off board holder
G. Remove the flag from the metal shaft in a similar method – by pulling hard on the flag (Figure
4.1.4.5)
