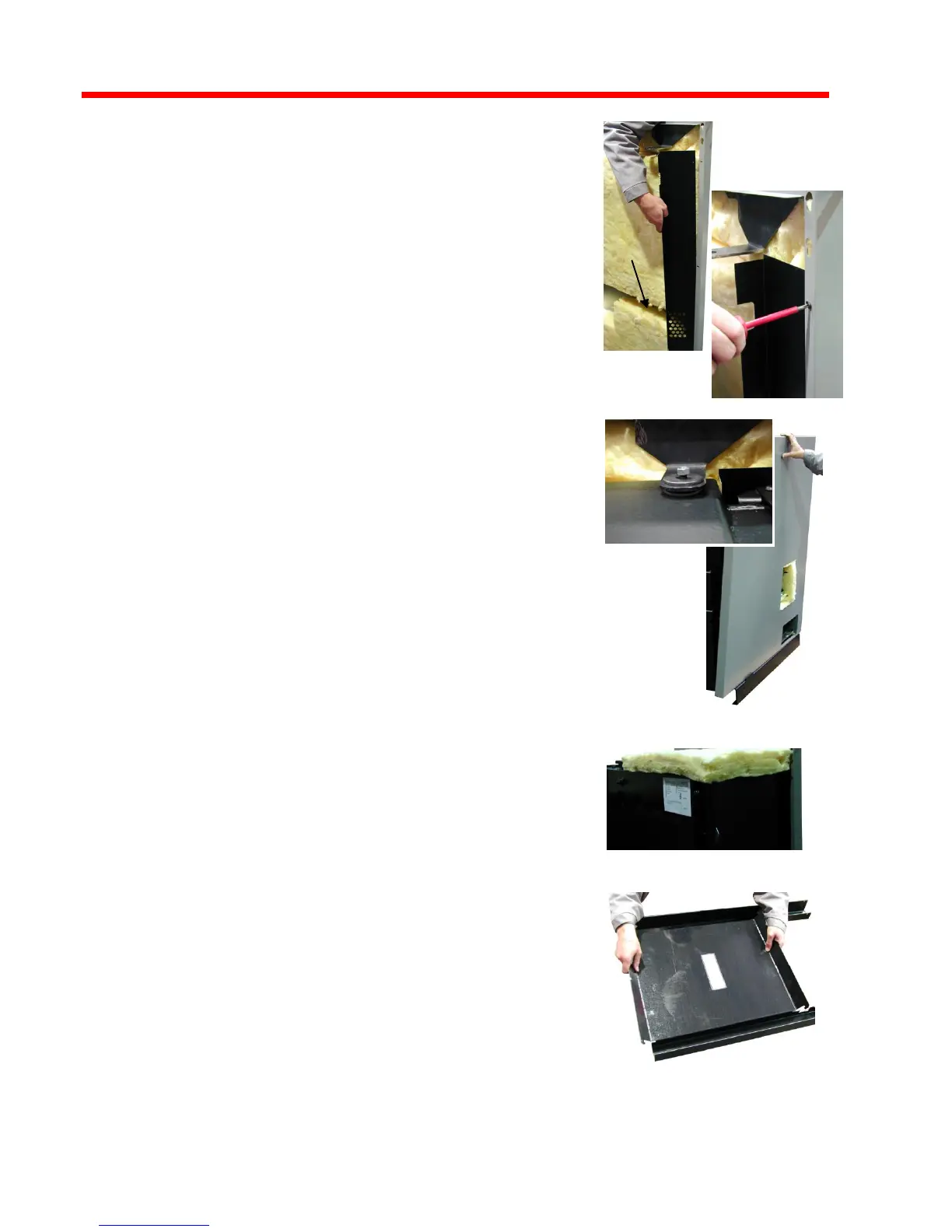

Insert the L-plate into the insulating
side panel as shown
Fix the L-plate in position using 3
self-tapping screws
Caution! Air channels (1) must not
be obstructed (do not insulate)
Insert the insulating side panel into
the tab (2) at the base of the boiler.
Hang the top of door from the door
bracket using the threaded bolt
Fit the spacer washers and screw
the nuts on lightly
Lay the insulating wool pad for the
top surface in position
Pull the insulating wool pad
completely forward, so that the
entire switch panel base is 100%
insulated
Bend up the end plates on the cable
tray to form right angles
