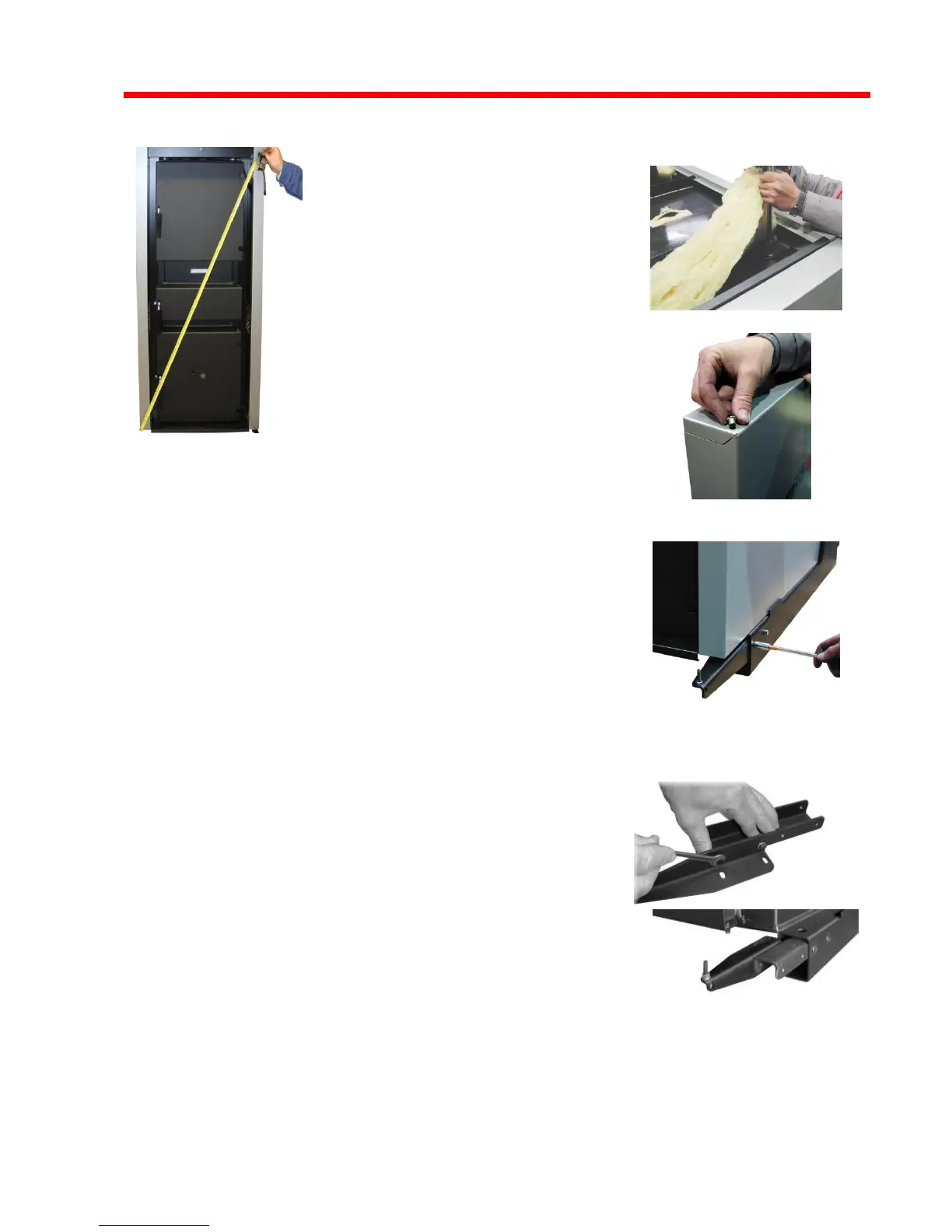

Align the insulating side panels by
measuring the diagonal in the
corner and tighten the nuts on the
threaded bolts
Fasten the right and left insulating
side panels
If the insulating door is attached on
the left:
Insert flange bushings at the top
and the bottom on the left-hand
side of the insulating door
The following steps are for a door
attached on the right:
If the insulating door is attached
on the left, carry out the steps with
the sides reversed accordingly.
Slide the lower door bracket into
the base of the boiler and attach
using 2 hexagon head screws
Do not fully tighten the screws at
this point
Push an M6 x 30 hexagon head
bolt through from below at the
front end of the door bracket and
attach using a nut
For the FHG 40/50, an additional
U-profile must be fitted:
Screw the door bracket onto the U-
profile using 2 M6 x 12 hexagon
head screws
Slide the door bracket, together
with the U-profile, into position and
attach using 2 hexagon head
screws hexagonal screws
