Boiler Installation
Boiler Assembly
Froling GmbH, Industriestrasse 12, A-4710 Grieskirchen, Austria Page 25
www.froling.com M1060008_US

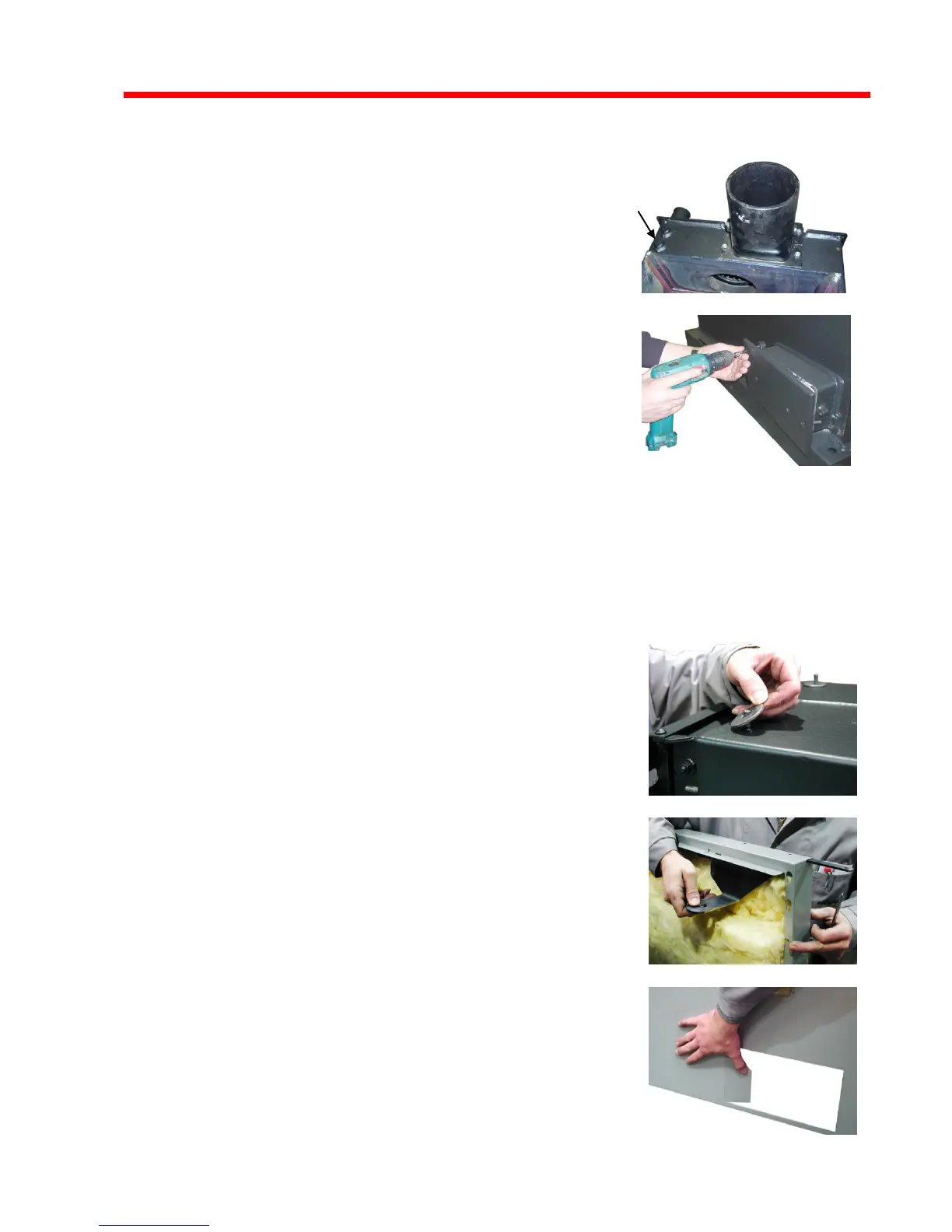

Add a 1/2” well (provided) into
tapping 1 as indicated. This will be
used with the Honeywell L4008B
aquastat (provided) as the over-
heat dump zone limit.
Detach blank cover for the side
cleaning port
3.5.5 Installing the insulating side panels
IMPORTANT: The separate parts of the boiler insulation are fitted
with a protective film. This must always be removed before
installation!
The following steps apply if the
insulating door is attached on the right
side:
If the insulating door is on the left,
carry out the same steps with the
sides reversed accordingly.
Fit the spacer washers onto the
threaded bolts
Insert the door bracket into the
upper edge of the insulated panel
on the side that the door will be
atached to the boiler (the same side
as for the three boiler doors) and fix
in place.
Push in the pre-cut perforated
corners at the cleaning ports to
form an angle of approximately
100°
Do not remove the corners
