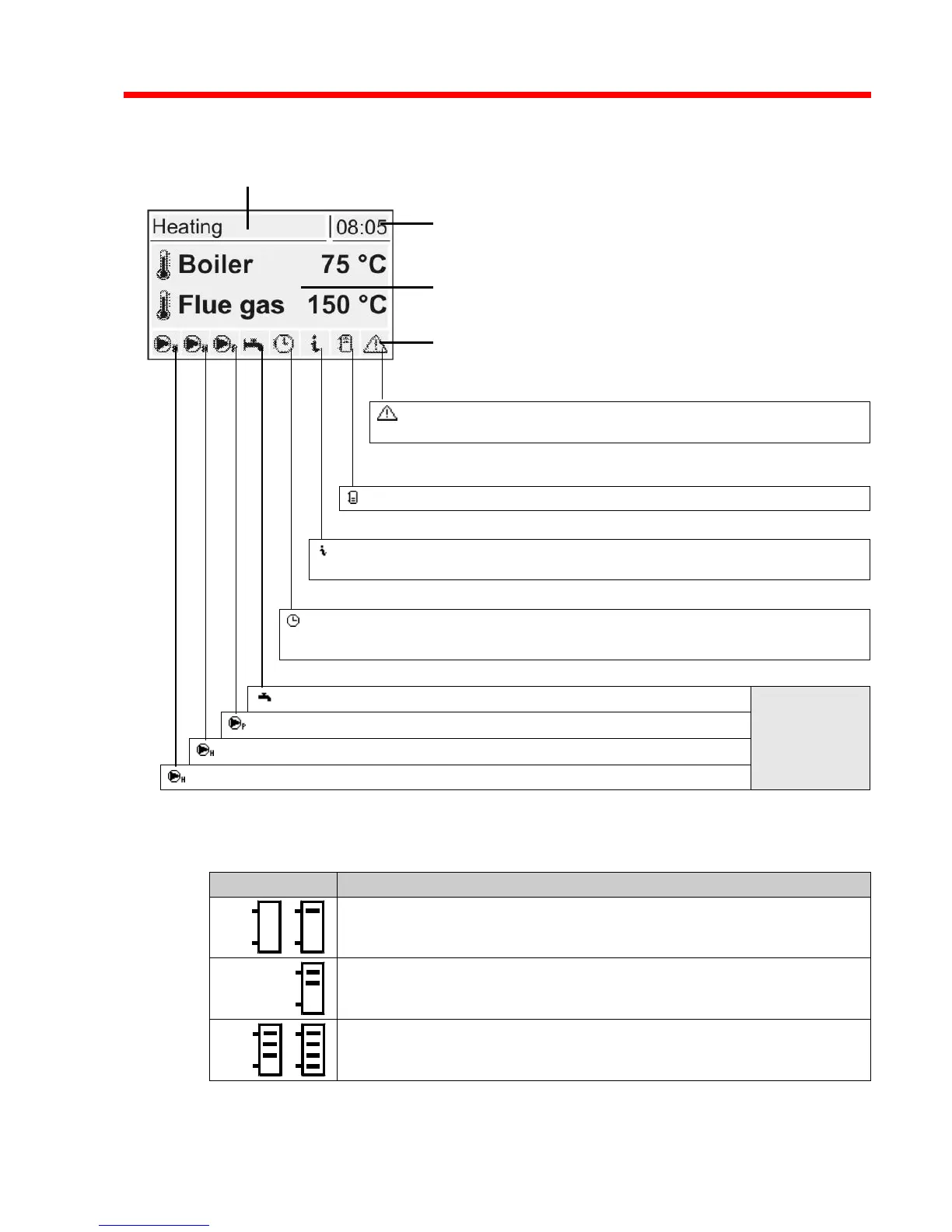

5.1.4 Graphical Display
Shows operating mode or menu name
Shows the current time
Shows the main values in the Basic Display (adjustable), menu
content, parameters and info texts
Status line
... Shown when an error message is pending.
Pressing the info key displays texts for troubleshooting.
... Shows the Thermal Storage System loading status
... Indicates that an info text is displayed. Info texts are also identified
by a frame.
... Shows activation of boiler
See page 47, Function Keys
... not used
Only shown
in the Basic
Display!
... shows that the Thermal Storage System circulator is active
... not used
... not used
Thermal Storage System loading status
Loading Status
Description
No dash or one dash visible in loading status symbol:
You can fill up the Fuel Loading Chamber completely and set fire.
Two dashes visible in loading status symbol:
Only fill half the Fuel Loading Chamber.
Three or four dashes in loading status symbol:
Do not heat up or recharge the boiler! The Thermal Storage System is
still too hot to store additional amount of energy.
