Boiler Installation
Electrical connection
Froling GmbH, Industriestrasse 12, A-4710 Grieskirchen, Austria Page 43
www.froling.com M1060008_US
3

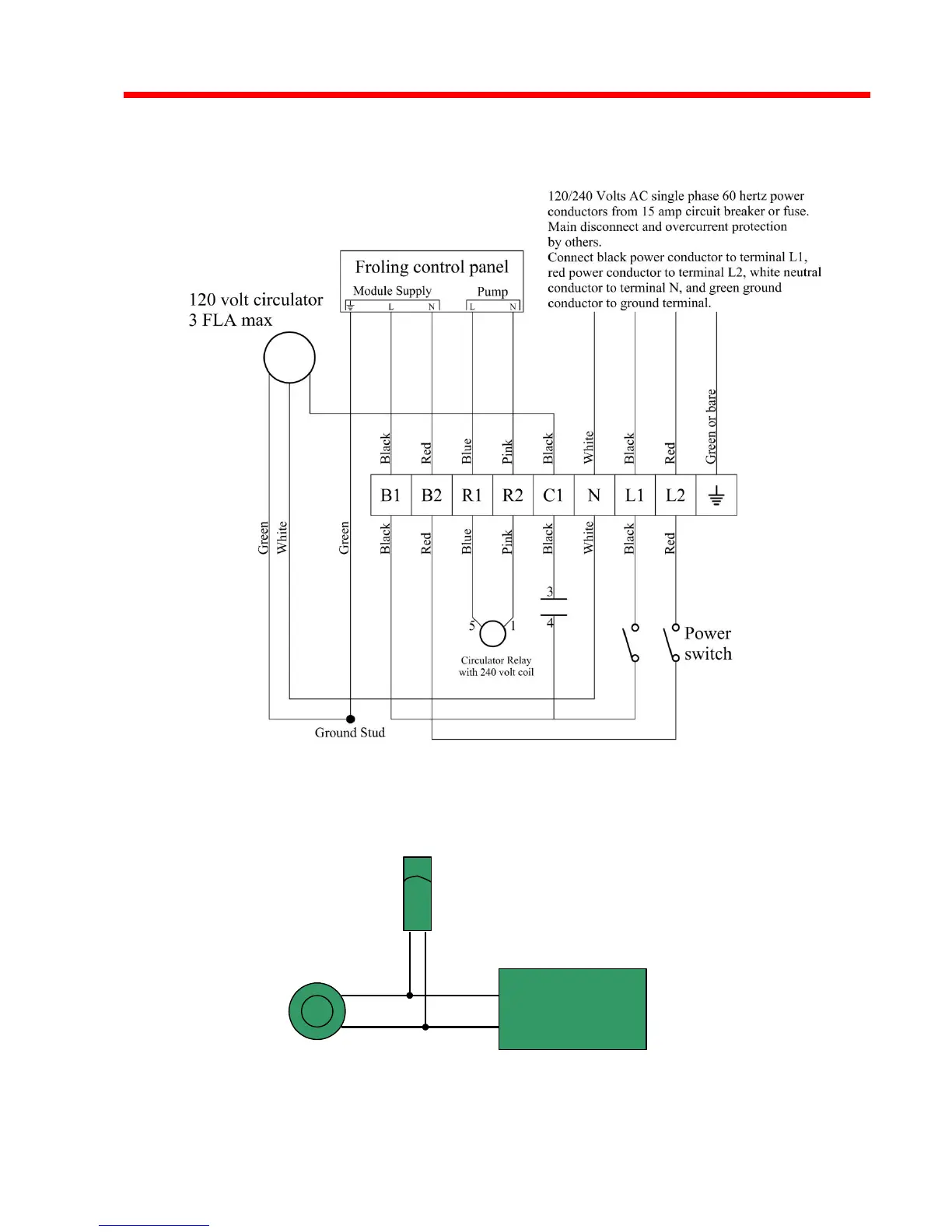

Wiring diagram
Wiring diagram for overheat aquastat connections
Typical Circulator or
Zone Valve Controller
Honeywell L4008B
(Overheat Control)
Set to 200ºF
Largest Heat
Zone
Thermostat
