Froling FHG 20 - Boiler Sensor and Sensor of Safety Temperature Limiter

Boiler Installation
Electrical connection
Froling GmbH, Industriestrasse 12, A-4710 Grieskirchen, Austria Page 41
www.froling.com M1060008_US
3

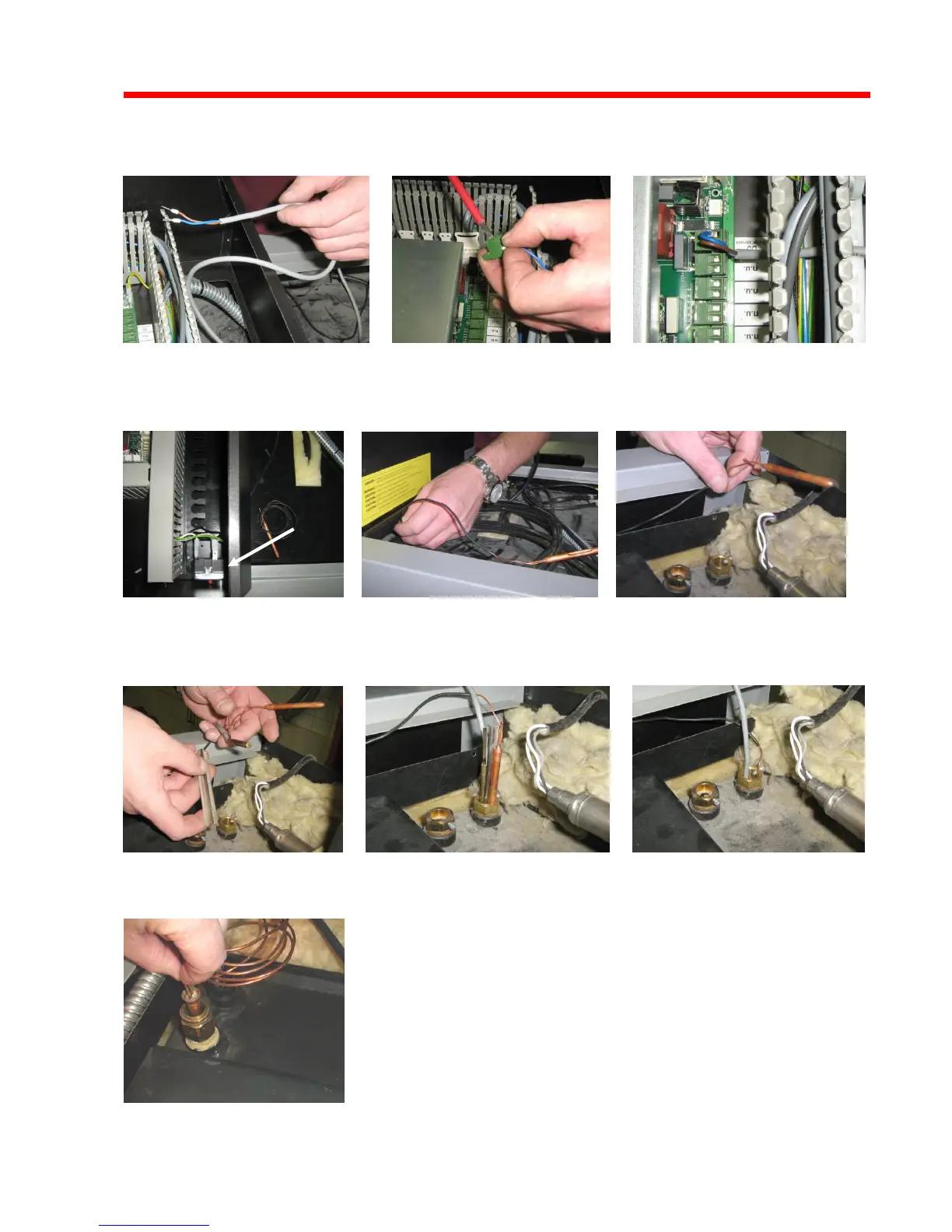

Boiler sensor and Sensor of Safety Temperature Limiter
Locate Safety
Temperature Limiter
and its bulb
Feed bulb and
capillary to back of
boiler
Bring the bulb to the
back of the boiler
Prepare STL bulb and
boiler temperature
sensor
Install bulbs into well
Install overheat
aquastat bulb and well
Make sure the sensors
are pushed completely
into well
Feed Boiler Sensor Wires
(sensor is installed below
with STL)
Connect Wires to
Connector
Plug in Boiler Sensor
Connector
