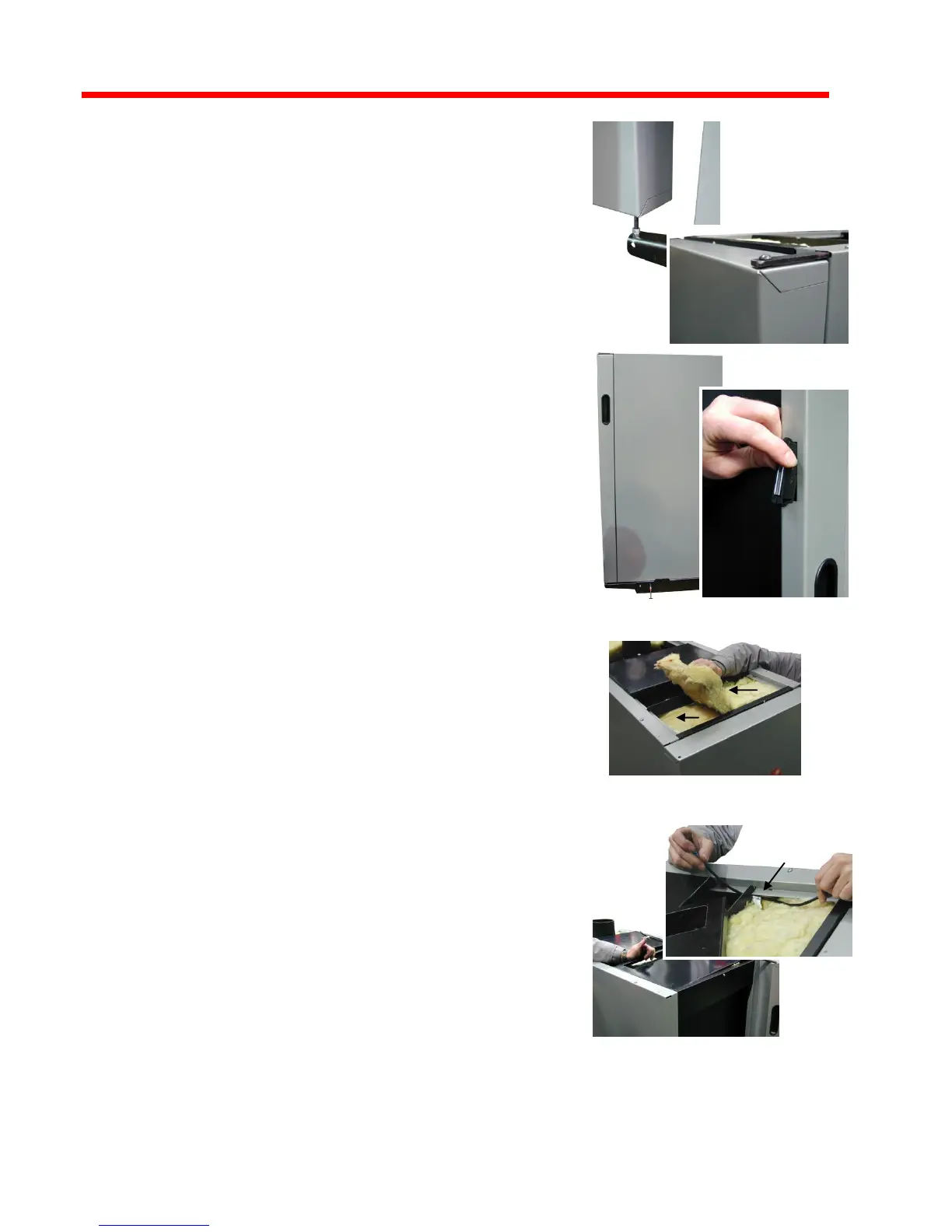

Mount the insulating door onto the
lower door bracket using the
hexagon head screw
Attach the insulating door at the
upper door bracket using a hinge
pin
Adjust so there is an air gap of
equal dimensions between the
insulating door and the insulating
side panel
Fasten the lower door bracket so
that this set up is maintained
Install magnetic latches top and
bottom on the inside of the
insulating door
Lay the additional insulating wool
pad (1) in position
The side openings (2) at the L-
plates must be completely covered.
Danger of the controller
overheating due to chimney
draught effect.
Thread in the cable for the door
contact switch
Place the cover with the door
contact switch in position
Tighten front jacket mounting bolts
and ash pit door mounting bolts
