2.2.3 Wood chip module

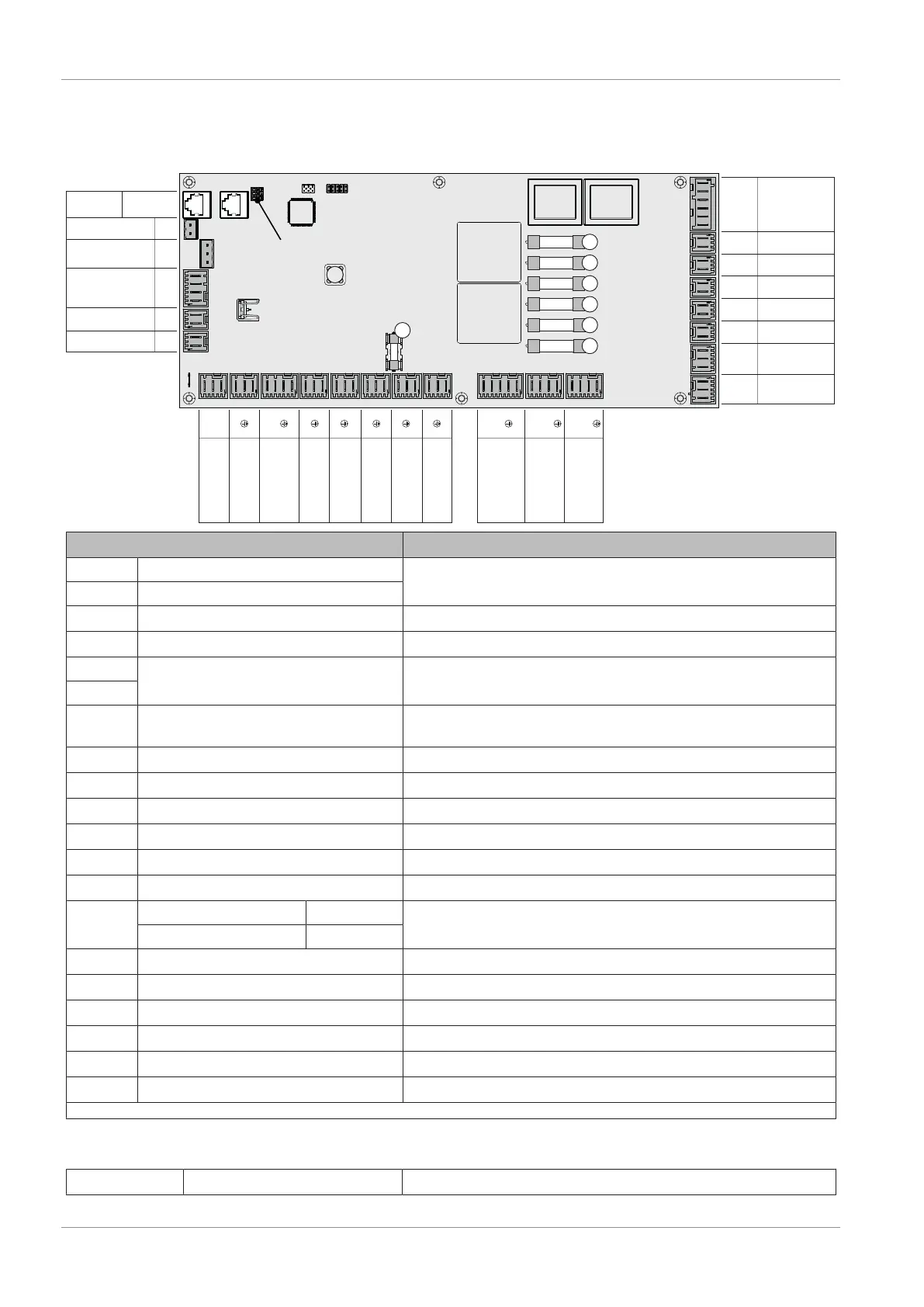

The wood chip module is included in standard delivery and has the connections of the hardware components for
the wood chip boiler:
N
L
N
L
N
L
N
L
N
L
N
L
L2
N
L1 L3 L2 L1 L3 L2 L1 L3
N
L_AUF
L_ZU
NC
COM
NO
HG-08
(Störmeldung)
HG-09
(Reserve)
HG-15
(Elektrische Zündung)
HG-16
(Netz)
HG-10
(Rücklaufmischer)
HG-11
(siehe Tabelle ...)
HG-12
(siehe Tabelle ...)
HG-13
(siehe Tabelle ...)
HG-14
(siehe Tabelle ...)
HG-17
(siehe Tabelle ...)
HG-18
(siehe Tabelle ...)
GND
IN
GND
GND
GND
+24V
GND
IN
GND
+24V
GND
+24V
IN
HG-02
(Bus)
HG-01
(Bus)
HG-03
(Rücklauffühler)
HG-05
(Unterdruckmessdose)
HG-06
(24V-Versorgung)
HG-07
(24V-Versorgung)
HG-04
(siehe Tabelle ...)
F1
F3
F4
F5
F6
F7
F2
IN
GND
+24V
IN
GND
+24V
+24V
IN
+24V
IN
+24V
IN
+24V
IN
OUT
GND
OUT
GND
+24V
GESCHL.
+24V
OFFEN
HG-19
(siehe Tabelle ...)
HG-20
(siehe Tabelle ...)
HG-25
(siehe Tabelle ...)
HG-26
(siehe Tabelle ...)
HG-21
(Verriegelung)
HG-24
(Fallschachtdeckel)
HG-22
(siehe Tabelle ...)
HG-23
(siehe Tabelle ...)
FRHGM17
Wood chip module
End jumper
Connection / Name Note
HG-01 BUS
Patch cable CAT 5 RJ45 SFTP 1:1 configuration
HG-02 BUS
HG-03 Return feed sensor
Connection cable
1)
2 x 0.75 mm
2
HG-05 Underpressure transmitter
Use connection cable of the component
HG-06 24 V power supply
Connection cable
1)
2 x 0.75 mm
2
HG-07
HG-08 Fault message
Connection cable
1)
3 x 1.5 mm
2
; floating changeover contact, max.
2A / 24V, 1A / 230V
HG-10 Return mixer
Connection cable
1)
4 x 1.5 mm
2
; max. 0.15A / 230V
HG-11 Combi drive
Connection cable
1)
3 x 1.5 mm
2
HG-12 External ash removal
Connection cable
1)
3 x 1.5 mm
2
HG-14 HV cleaning
Connection cable
1)
3 x 1.5 mm
2
HG-15 Electric ignition
Use connection cable of the component
HG-16 Mains connection
Connection cable
1)
5 x 2.5 mm
2
; 400 VAC
HG-17 Feed screw T4e 20-180
Connection cable
1)
4 x 1.5 mm
2
; max. 0.55kW / 400V
Combi drive T4e 200-350
HG-18 Stoker screw
Connection cable
1)
4 x 1.5 mm
2
; max. 0.55kW / 400V
HG-19 Light barrier gravity shaft
Connection cable
1)
3 x 0.75 mm
2
; normally open contact 24V
HG-20 Monitoring combi drive
Connection cable
1)
2 x 0.75 mm
2
HG-21 Lock
Connection cable
1)
2 x 0.75 mm
2
; 24V looping through
HG-24 Gravity shaft cover
Connection cable
1)
2 x 0.75 mm
2
; normally open contact
HG-26 Tilt motor grate 1
Connection cable
1)
6 x 0.75 mm
2
1. YMM to ÖVE-K41-5 or H05VV-F to DIN VDE 0881-5
Fuses
F1, F3, F6 2.5 AT
HG-18
