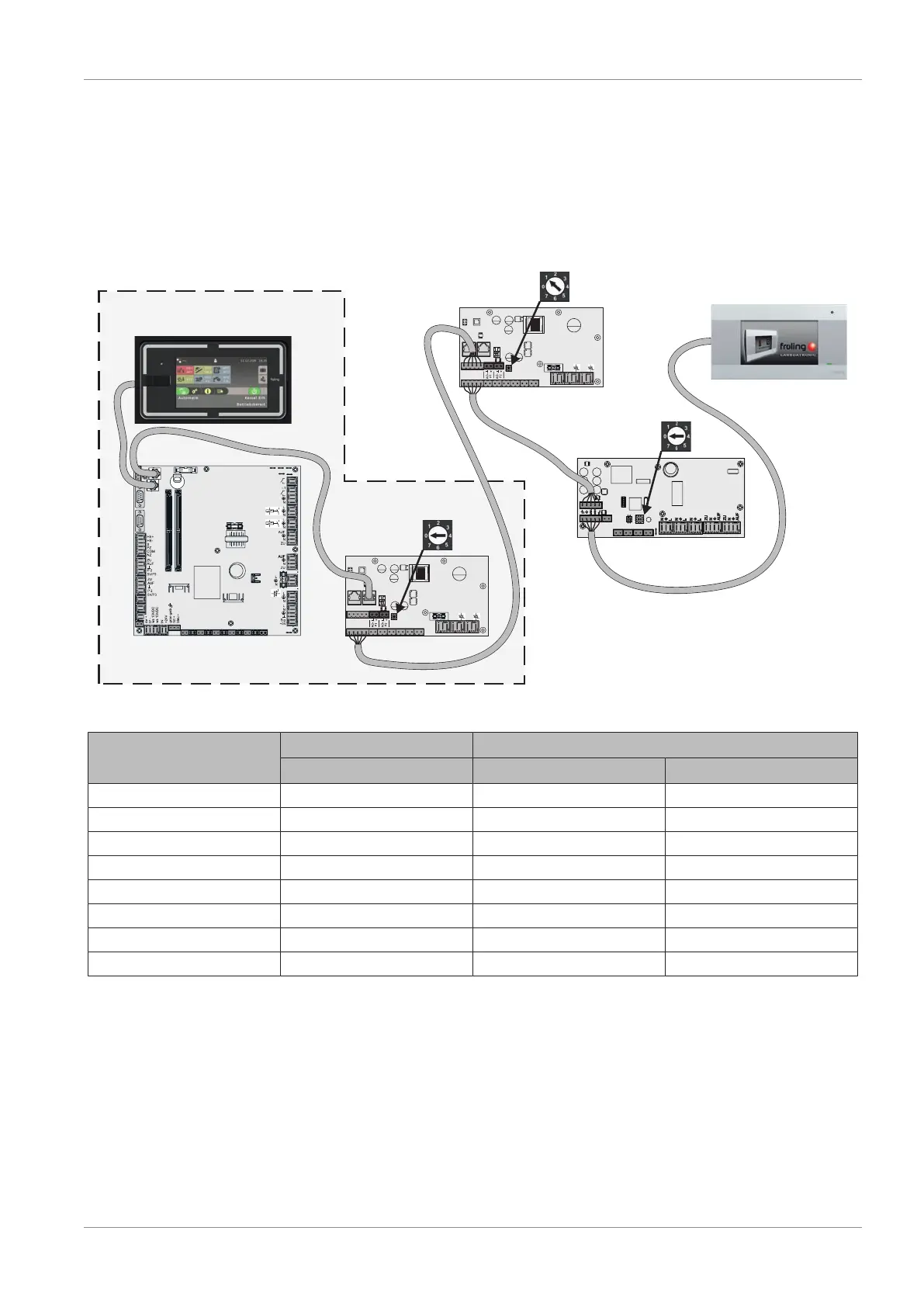

2.3.3 Setting the module address
The necessary order for hydraulic modules and heating circuit modules is set with the module addresses. The
first board of a module type should always have the address 0, so that the standard hydraulic systems set do
not have to be subsequently configured. For further module types rising module addresses (address 1 - 7) are
set.
Important! Only set the module address when the device is disconnected from the power supply!
Included in standard delivery
Lambdatronic S 3200
Touch control
Address: 0
Heating circuit 1/2
Hydraulic module
Address: 0
Address: 1
Hydraulic module
Heating circuit module
Address: 0
Heating circuit 3/4
Address: 1
RBG Touch 3200
Room console
Core module
Hydraulic module
Hydraulic module
Heating circuit
module
Module
address set
Heating circuit module Hydraulic module
Heating circuit Sensors Pump
0 03 – 04 0.1 – 0.6 0.1 – 0.2
1 05 – 06 1.1 – 1.6 1.1 – 1.2
2 07 – 08 2.1 – 2.6 2.1 – 2.2
3 09 – 10 3.1 – 3.6 3.1 – 3.2
4 11 – 12 4.1 – 4.6 4.1 – 4.2
5 13 – 14 5.1 – 5.6 5.1 – 5.2
6 15 – 16 6.1 – 6.6 6.1 – 6.2
7 17 – 18 7.1 – 7.6 7.1 – 7.2
