Initial start-up with settings wizards | 3
B1820023_en | Service handbook Lambdatronic H 3200 - T4e 41

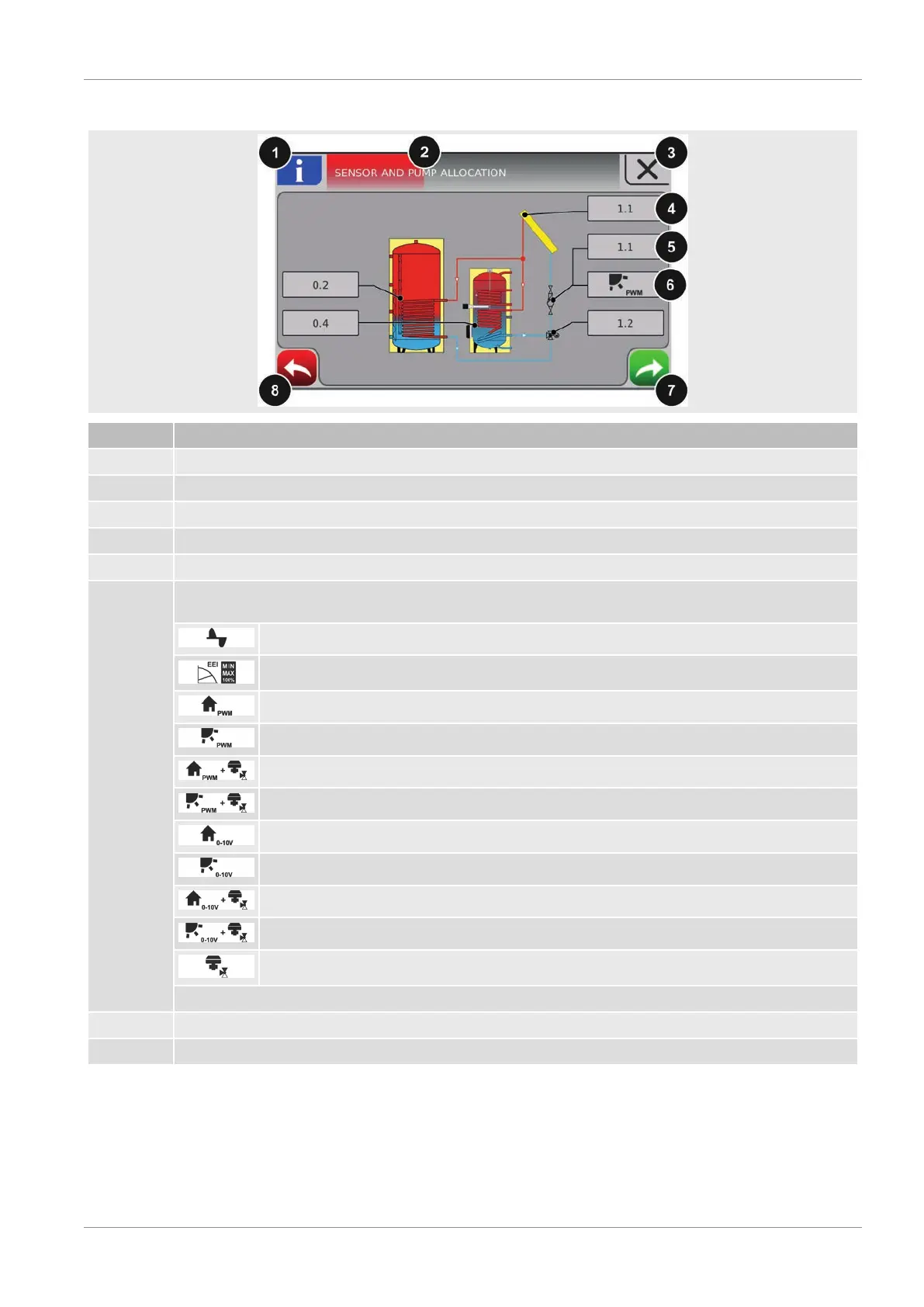

Navigation as well as sensor and pump settings
Number Description
1
If the Info button has a blue background, more information is available for this overview page.
2
Progress bar for the respective settings wizards
3
Cancel setting wizard
4
Setting the address to which the respective sensor was connected
5
Setting the address to which the respective pump was connected
6
Defining the control signal of the respective pump. The following options are available depending on the
selected menu:
Pump without control line
HE pump without control line
Field pump / PDM
Solar pump / PDM
Field pump PDM + valve
Solar pump PDM + valve
Field pump / 0 - 10 V
Solar pump / 0 – 10 V
Field pump 0-10 V + valve
Solar pump 0-10 V + valve
Switch valve
Ü "Activation options of pump outlets" [}96]
7
Continue to the next step
8
Go back one step
