MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 1: SERVICE PROCEDURES
1-16
1.8.9 Replacing Burner Ceramic Targets (cont.)
10. To replace only the ceramic targets, straighten the target locking tabs with a pair of needle nose
pliers or a screwdriver, and slide the target up and off the bracket. Slide the replacement target
onto the bracket and bend the locking tabs inward towards the burner target.
To replace the entire target assembly, use a ½-inch (13 mm) box end wrench to remove the two
brass orifices that hold the assembly to the burner manifold. Position the new assembly and
replace the orifices.
WARNING
Use extreme care to prevent cross-threading and stripping when reinstalling the
brass orifices.
11. Reverse steps 1-8 to reinstall the burner assembly. Check spacing and alignment of targets in
accordance with Section 1.6.

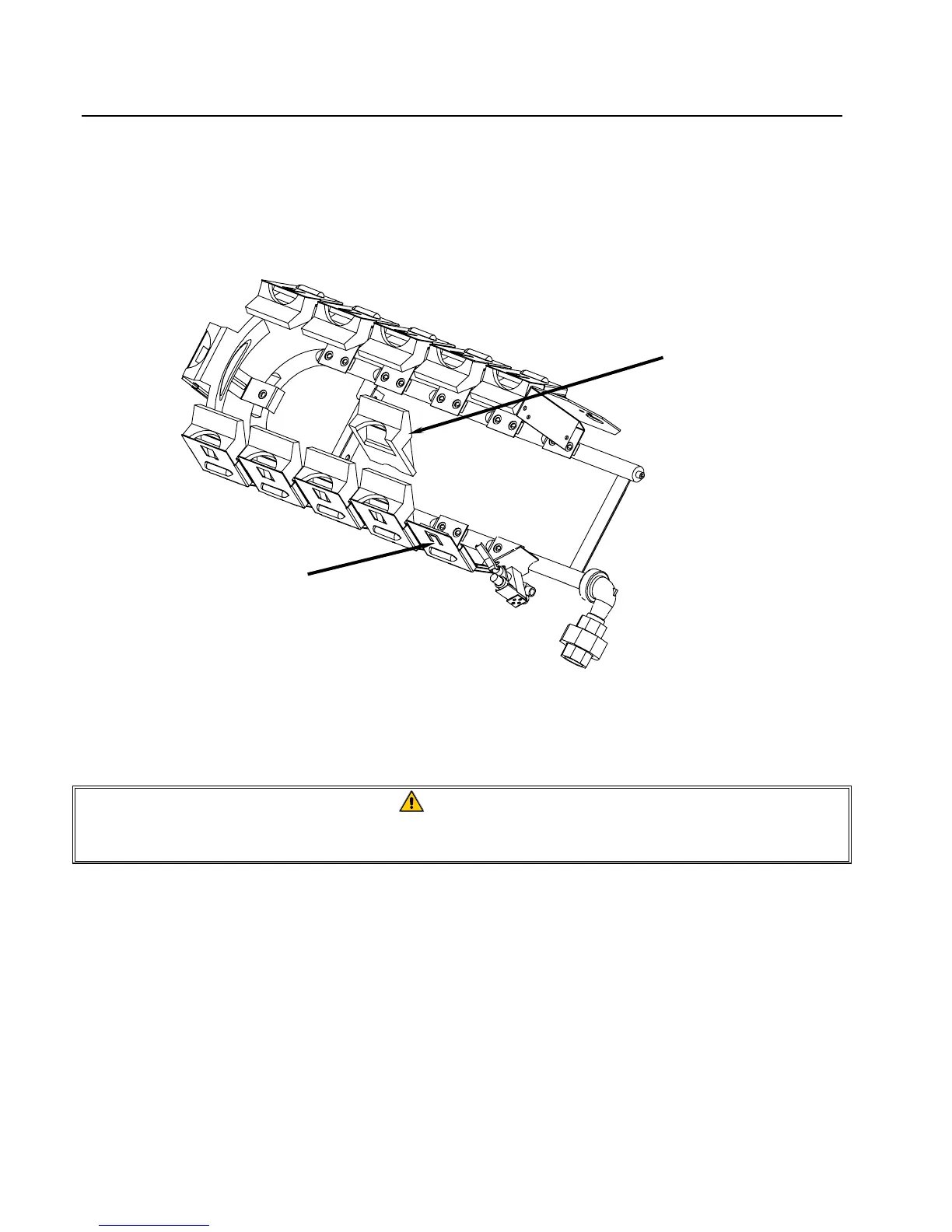

Straighten lock-tab
to remove ceramic
target.
Remove
damaged target
by lifting up from
bracket. Install
new target and
bend lock-tab in
to lock target in
bracket.
