Frymaster FMCFE - Oil Return Handle Components - Units Built Prior to April 2001

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-21

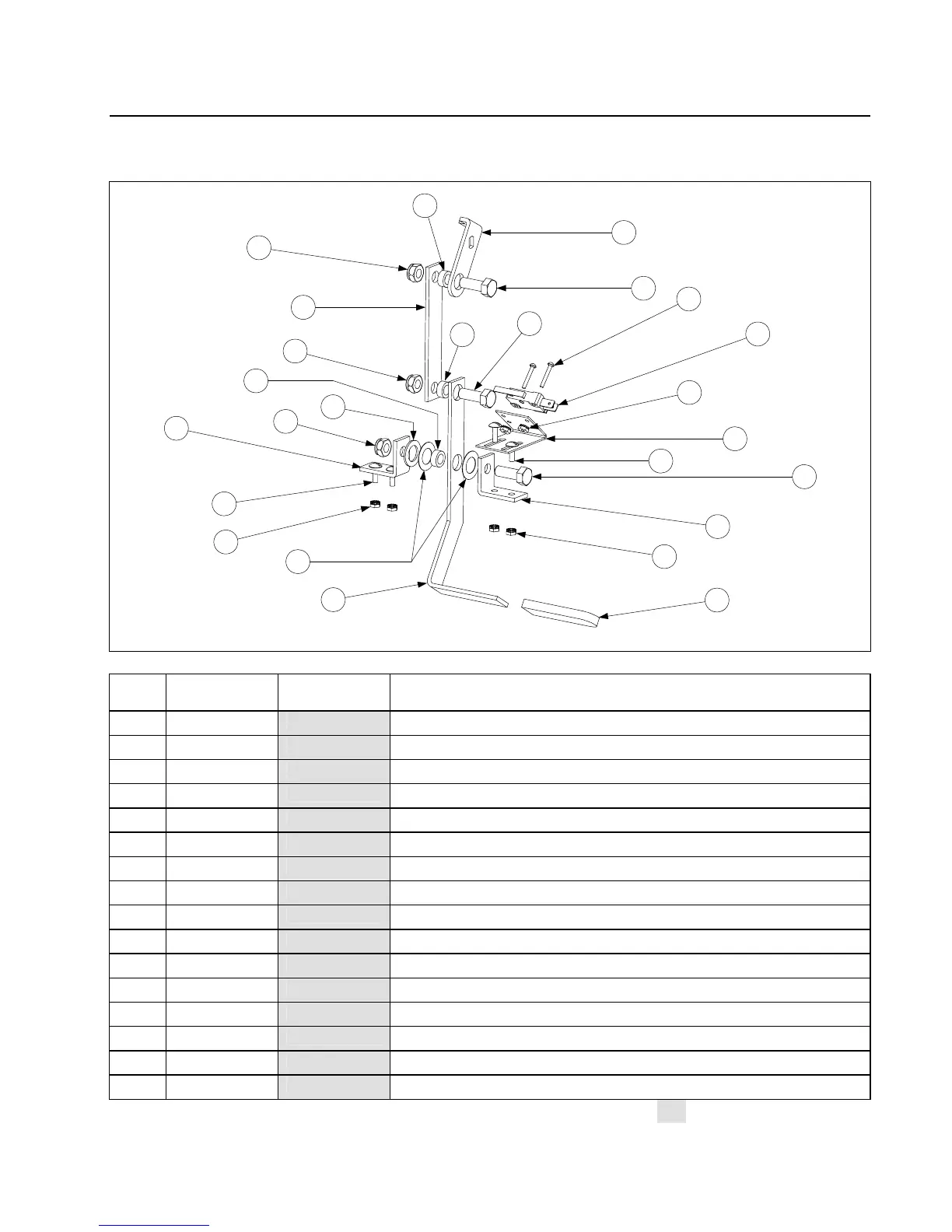

2.7.4 Oil Return Handle Components – Units Built Prior To April 2001
1
2
3
3
4
5
6
7
8
9
11
11
12
13
14
15
16
10
12
12
13
14
11
10
10
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
1 807-2103
Microswitch
2 930-0839
Bracket, Microswitch
3 810-1999
Bracket, Valve Handle
4 900-1853
Handle, Oil Return
5 814-0047
Sleeve, Handle
6 900-0239
Arm, Oil Return Valve
7 920-0220
Linkage, Oil Return Valve
8 809-0200
Washer, Flat ½”
9 826-1381
Washer, ½ I.D. x 7/8 O.D.- Nylatron (Qty: 10)
10 810-0220
Spacer, Tubular, .493 O.D.
11 809-0142
Screw, 5/16-24 x ¾” Hex Head
12 809-0056
Nut, 5/1624, Hex Head, Nylon Lock
13 809-0104
Screw, 4-32 x ½” Slotted Head
14 809-0247
Nut, Keps Hex, 8-32
15 826-1359
Screw, 4-40 x ¾” Slotted Head (Qty: 25)
16 826-1366
Nut, Keps Hex, 4-40 (Qty: 25)
Use standard part.
