MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-13
2.5.3 Filter Box Assemblies (cont.)
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
1 823-1584
Box, Control- FMCF Filter
* 823-1585
Box, Control- Under-Counter CF-Filter
* 807-0124
Bushing, Heyco (Control Box Back)
2 807-0012
Relay, 18 Amp- 1/3 HP 24V Coil (4-terminal)
* 807-2434
Relay, 18 Amp- 1/3 HP 24V Coil (5-terminal)
3 806-4358
Resistor, Pan Heater Light
4 807-0276
Terminal Block, 12-Pin
5 810-1168
Terminal Block (CE)
6 810-1164
Terminal Block (CE)
7 807-0800
Transformer, 24V – 120V 50/60 Hz 50 VA
* 807-0680
Transformer, 24V – 240V 50/60 Hz 43 VA
8 807-1999
Transformer, 24V – 240V 50/60 Hz 50 VA (CE Only)
* Not illustrated.
Use standard part.

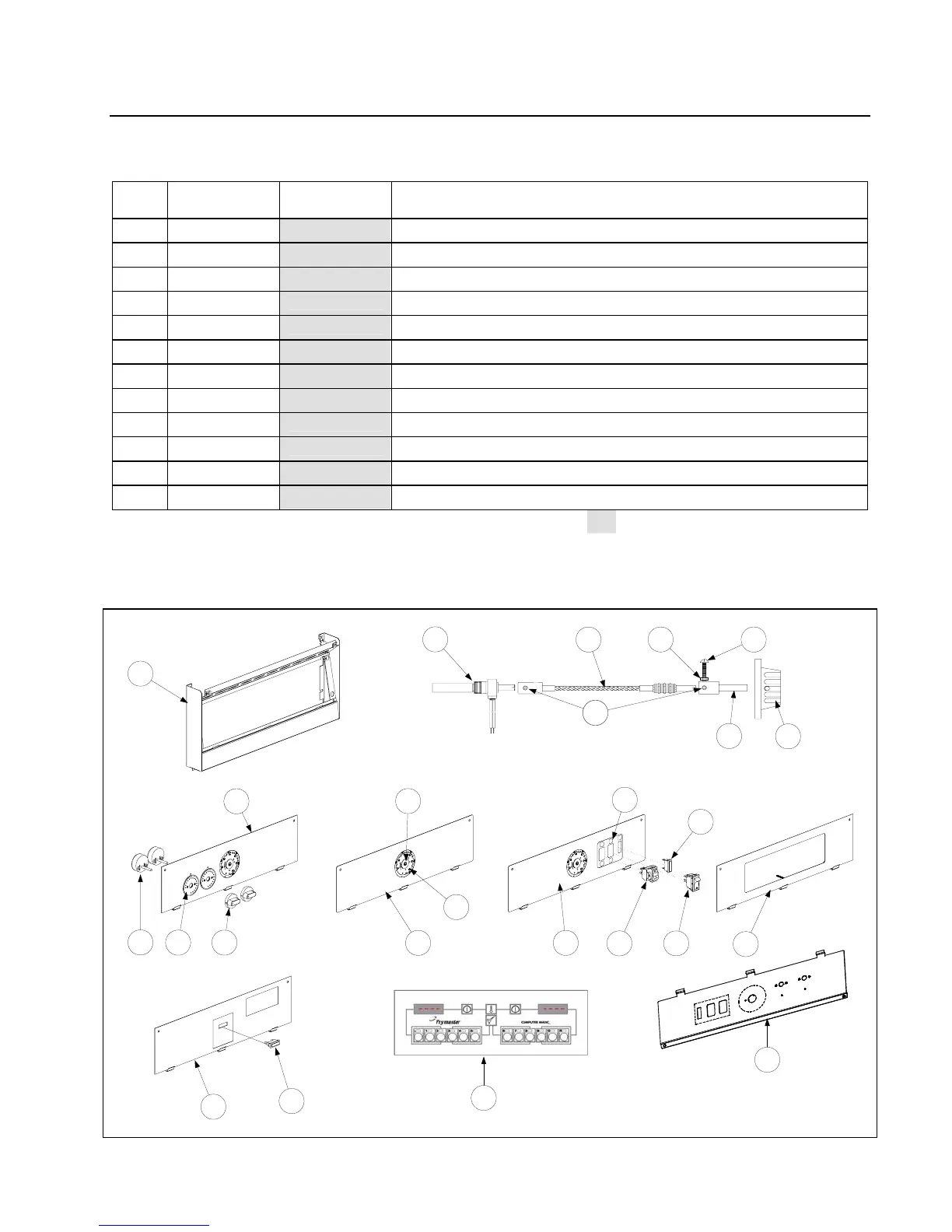

2.6 Control Panel Assemblies and Related Components
1
9
10
11
13 16
17
18 19
20
21
12
14
15
24
22
23
2
3
5 6
7
8
4
25
