Frymaster FMCFE - Filter Magic II Filter Pan Components - Outer Pan Components

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-18

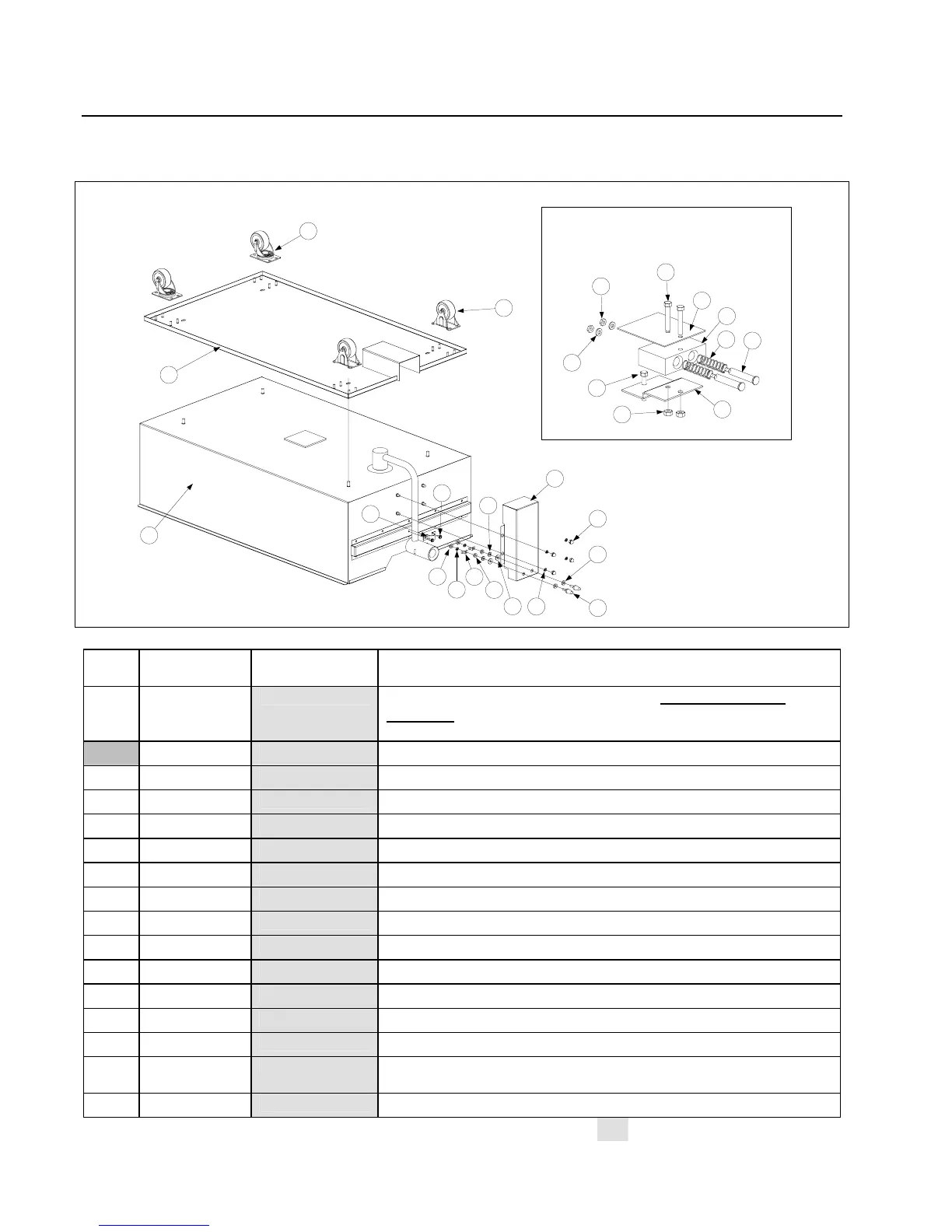

2.7.2 Filter Magic II Filter Pan Components – Outer Pan Components
1
2
3
4
5
6
7
8
9
7
10
11
12
13
14
15
8
7
10
16
17
18
19
20
21
22
23
CONTACTOR BLOCK
ASSEMBLY
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
* 806-6095SP
FMCF Complete Filter Pan Assembly – Inner & Outer Pan
Assembly (Crumb Screen Not Included – Order Separately,
Page 2-18
)
806-4470SP FMCF Filter Pan- Outer Pan Assembly, Complete
* 806-4373
Heater, Pan- 24V 25W FMCF
1 810-0006
Caster, Swivel- 2" (Front Only)
2 810-0005
Caster, Rigid- 2" (Rear Only)
* 809-0189
Washer, Flat- ¼"
* 826-1362
Nut, ¼-20 Hex (Qty: 10)
3 823-1421
Base, Outer Filter Pan
4 823-1452SP
Pan, Filter- Outer Pan (Pan Only)
5 910-1350
Clamp, Suction Tube
6 826-1371
Screw, #8 x ½" Hex Head (Qty: 25)
7 809-0053
Nut, 10-32 Hex (Also Used With Contactor Block Assembly)
8 809-0184
Washer, Lock- #10
9 826-1337
Tab, Terminal (Qty: 5)
10 809-0185
Washer, Flat- #10 SAE (Also Used With Contactor Block
Assembly)
11 807-1367
Insulator, Flat Washer
* Not illustrated. Use standard part.
