MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-12
2.5.2 Component Shield Assemblies – With Interface Board (cont.)
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
Complete Shield Assemblies
806-4773SP
120V, 50/60 Hz, With Interface Board
806-4775SP
240V, 50/60 Hz, With Interface Board
Shield Components
1 807-0066
Block, Terminal, 20-Pin
2 807-2469
Bushing, Heyco, 1” ID
3 810-2243
Clip, Relay Retaining
4 807-0160
Connector, 12-Pin
5 806-3548
Interface Board, Universal Replacement
6 900-4340
Shield, Component
7 809-0349
Spacer, 4 x 6 mm, Interface Board Standoff
8 824-0161
Support, Interface Board
9
Transformer, 12V
807-0855
120V 50/60 Hz 20VA
807-0979
240V 50/60 Hz 20 VA
10
Transformer, 24V
807-0800
120V 50/60 Hz 50 VA
807-0680
240V 50/60 Hz 43 VA
* Not illustrated.
Use standard part.

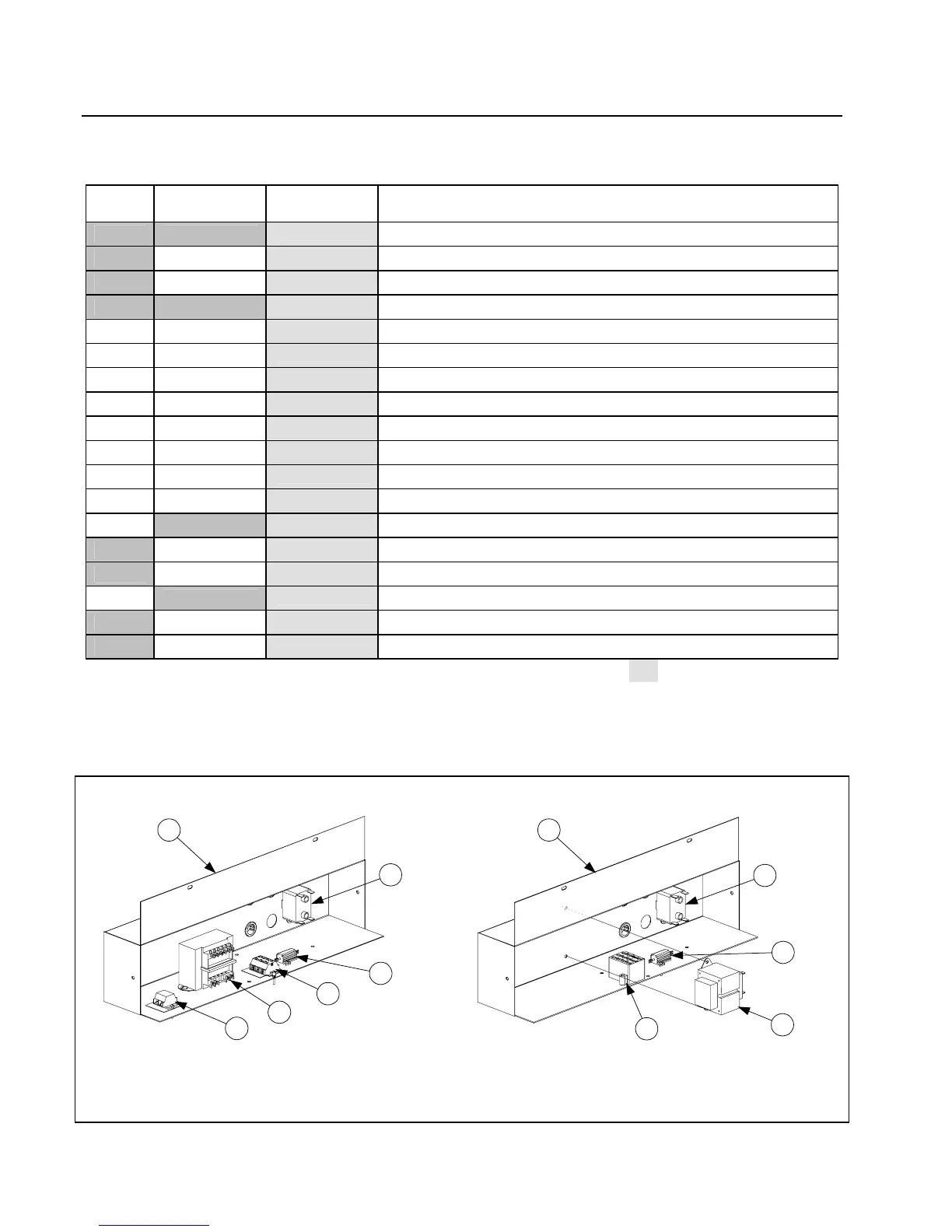

2.5.3 Filter Box Assemblies
1
2
3
5
6
8
CE FILTER COMPONENT BOXES NON-CE FILTER COMPONENT BOXES
1
2
3
4
7
