MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-11
2.5.1 Component Shield Assemblies – No Interface Board (cont.)
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
826-1546 806-9622
Kit, Melt Cycle Timer
(Replaces for Melt Cycle Timer Motor) [Items 5, 6
& 7]
5 900-8741
Bracket, Melt Cycle Timer
6 806-9613
PC Board Assembly, Melt Cycle Timer (50 and 60 Hz)
7 809-0580
Standoff, PC Board
8
Transformer, 24V
807-0800
120V 50/60 Hz
807-0680
240V 50/60 Hz
9 826-1374
Screw, #10 x ½" Hex Washer Head (Qty: 25)
10 809-0097
Screw, 6-32 x 1" Slotted Head
* 807-0670
Relay, Lockout Older Units
* 826-1358
Nut, 6-32 Hex (Qty: 25)
* Not illustrated.
Use standard part.

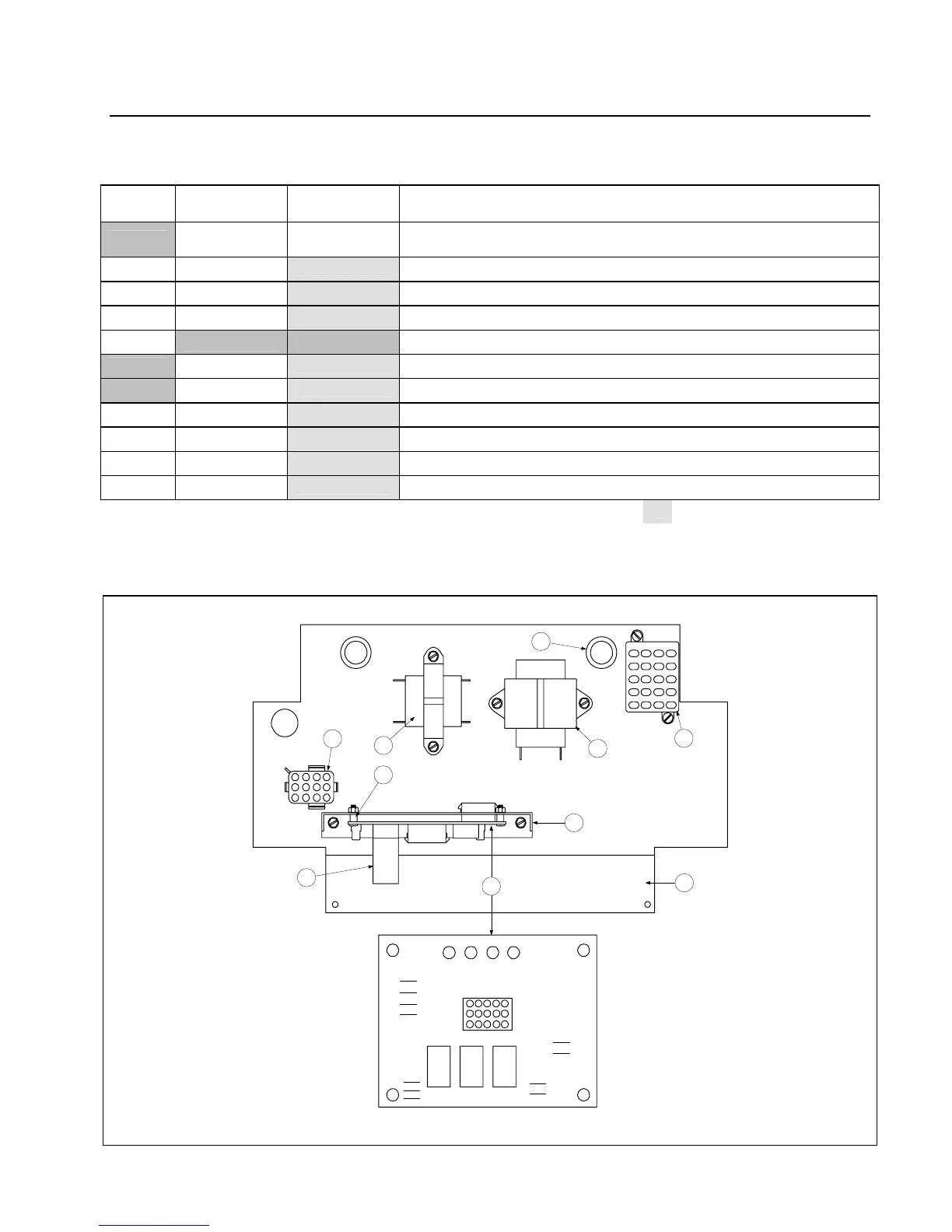

2.5.2 Component Shield Assemblies – With Interface Board
24V
COMP AC
GV AL 24V
COMP
SD
AC
COM
HOT
AC
COM
HOT
Component Shield Assemblies with Interface Boards
1
2
3
4
5
6
7
8
9
10
11
12
1 2 3
4
5
6
7
8
9
10 11
12
13
14 15
16
17
18 19 20
2
1
3
4
5
6
7
8
9
10
