Frymaster FMCFE - Filter Magic II Filter Pan Components - Inner Pan Components

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-19
2.7.2 Filter Magic II Filter Pan Components – Outer Pan Components (cont.)
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
12 824-0292
Cover, Suction Tube
13 809-0020
Nut, Cap- 10-24 NP
14 807-1270
Insulator, Nylon Shoulder
15 810-0695
Pin, Contact- Suction Tube Cover
806-4694SP Contactor Block Assembly
16 826-1389
Bolt, ¼-20 x ¾" Hex Head (Qty: 10)
17 826-1372
Nut, Grip- ¼-20 Hex (Qty: 10)
18 809-0291
Bolt, ¼-20 x 1-½" Hex Head
19 816-0126
Insulation, Contactor Block Terminals
20 810-0694
Block, Contactor
21 810-0696
Spring, Contactor Contacts
22 810-0693
Contact Pin, Contactor Block
23 900-1521
Bracket, Contactor Block
* Not illustrated. Use standard part.

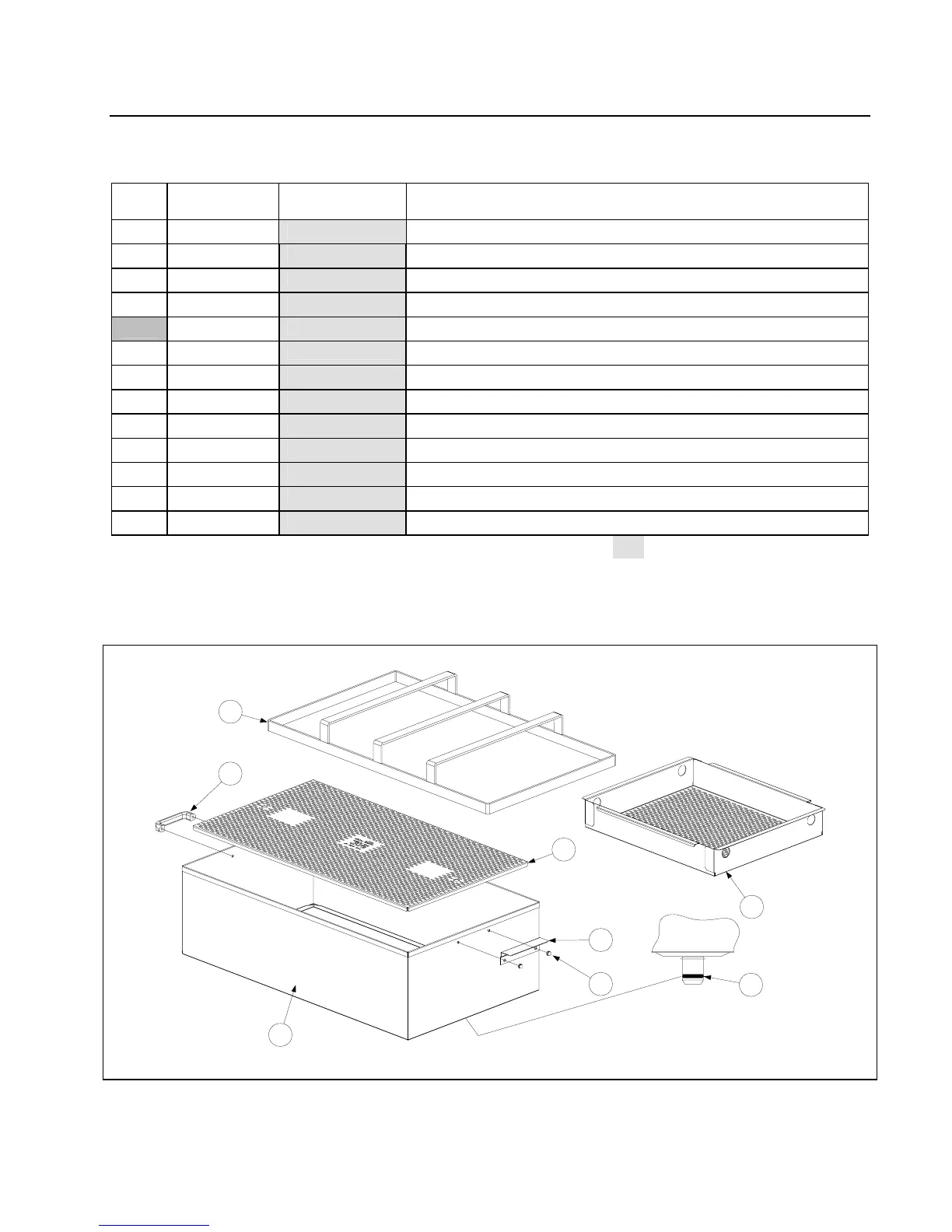

2.7.3 Filter Magic Filter Pan Components – Inner Pan Components
1
2
3
4
5
6
7
8
