Frymaster FMCFE - Wiring Connectors, Pin Terminals and Power Cords

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-31

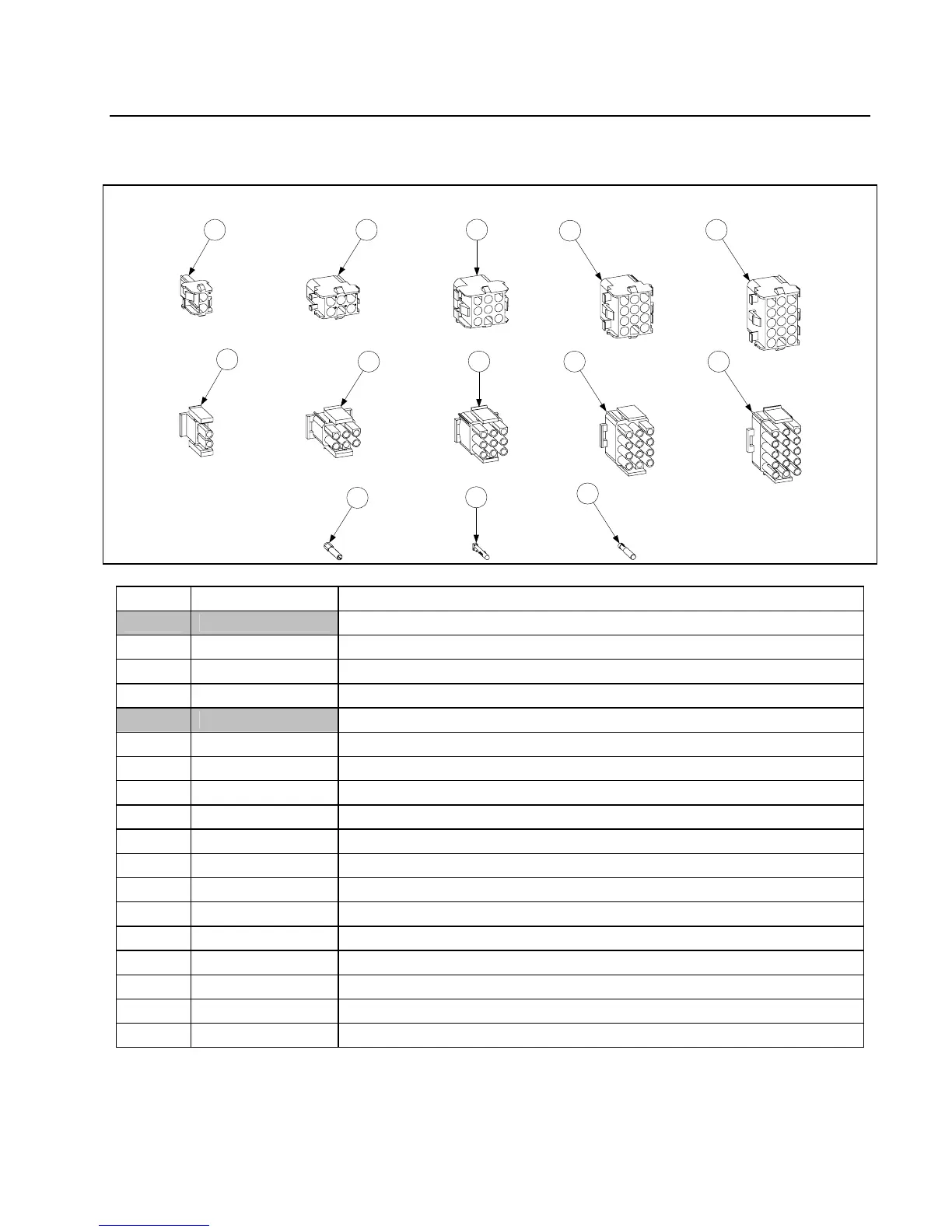

2.9 Wiring Connectors, Pin Terminals and Power Cords
1 2
4
5
3
6
7 9 10
8
11
13
12
ITEM PART # COMPONENT
Power Cords
* 807-0154 100/120V–15A w/grounded plug
* 806-6229SP 100/208/240V–15A, w/o plug
* 807-1685 100/208/240V–18A, w/o plug
Connectors
1 807-1068 2-Pin Female
2 807-0158 6-Pin Female
3 807-0156 9-Pin Female
5 807-0159 12-Pin Female
5 807-0875 15-Pin Female
6 807-1067 2-Pin Male
7 807-0157 6-Pin Male
8 807-0155 9-Pin Male
9 807-0160 12-Pin Male
10 807-0804 15-Pin Male
11 826-1341 Terminal, Female Split Pin (Qty: 25)
12 826-1342 Terminal, Male Split Pin (Qty: 25)
13 807-2518 Plug, Mate-N-Lock (Dummy Pin)
* Not illustrated.
