MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-3

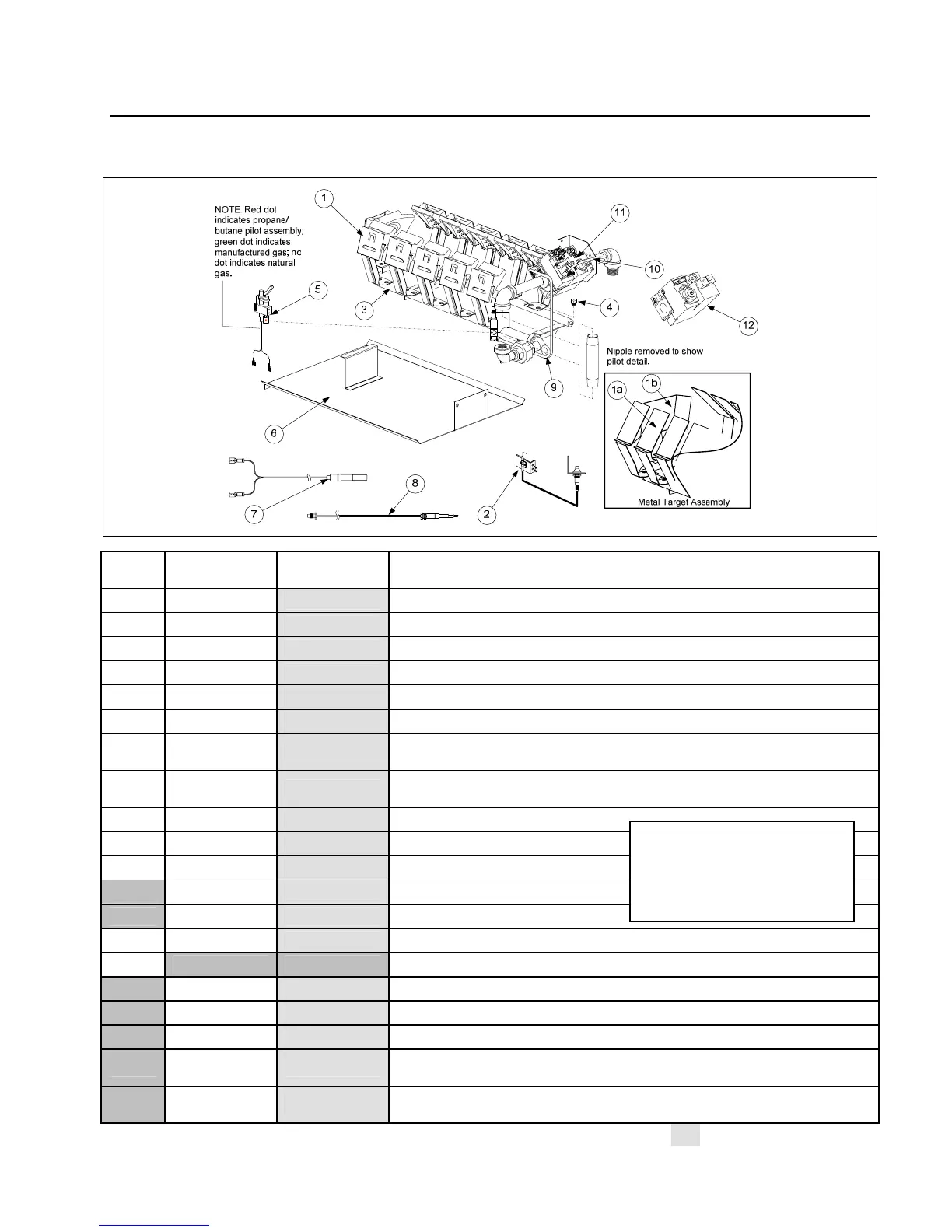

2.2 Burner Manifold Components
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
1 806-0225SP Deflector Assembly (Ceramic Target Assembly), Side
* 806-3605SP Deflector Assembly (Ceramic Target Assembly), Back
* 910-0226 Bracket, Deflector- Side
* 814-0034 Target, Ceramic- Side
* 910-1465 Bracket, Deflector- Back
* 810-0424 Target, Ceramic- Back
* 806-1980SP
Burner Control Assembly, Natural (Metal Targets) (use 106-0010 for
Single)
* 806-1981SP
Burner Control Assembly, Propane (Metal Targets) (use 106-0048
for Single)
1a 230-1177
Deflector, Side Metal Target
1b 230-1180 Deflector, Rear Metal Target
2 826-1155 Ignitor Kit, Optional Piezo
807-1906 Electrode Assembly
810-1001 Trigger
3 823-0289 Manifold, Burner
4 Orifice (Altitudes 0-1999 Feet; For Alt ≥ 2000 Feet, Contact Factory)
826-1386 Natural Gas- 1.40 mm (Non-CE & CE; Qty: 10)
812-0910 Propane (LP) Gas- 0.90 mm (Non-CE Only)
812-0906 Propane (LP) Gas- 0.95 mm (CE Only)
810-0407
Manufactured Gas- 2.15 mm [Contact factory with gas specifications
(I.E. CO
2
, CH
4
, N
2
, H
2
, etc.,) for correct orifice part #.]
812-0916
Manufactured Gas- 2.26 mm [Contact factory with gas specifications
(I.E. CO
2
, CH
4
, N
2
, H
2
, etc.,) for correct orifice part #.]
* Not illustrated.
Use standard part.
NOTE: Metal targets
can be co-mingled
with ceramic targets.
