Frymaster FMCFE - Oil Return Plumbing

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-23

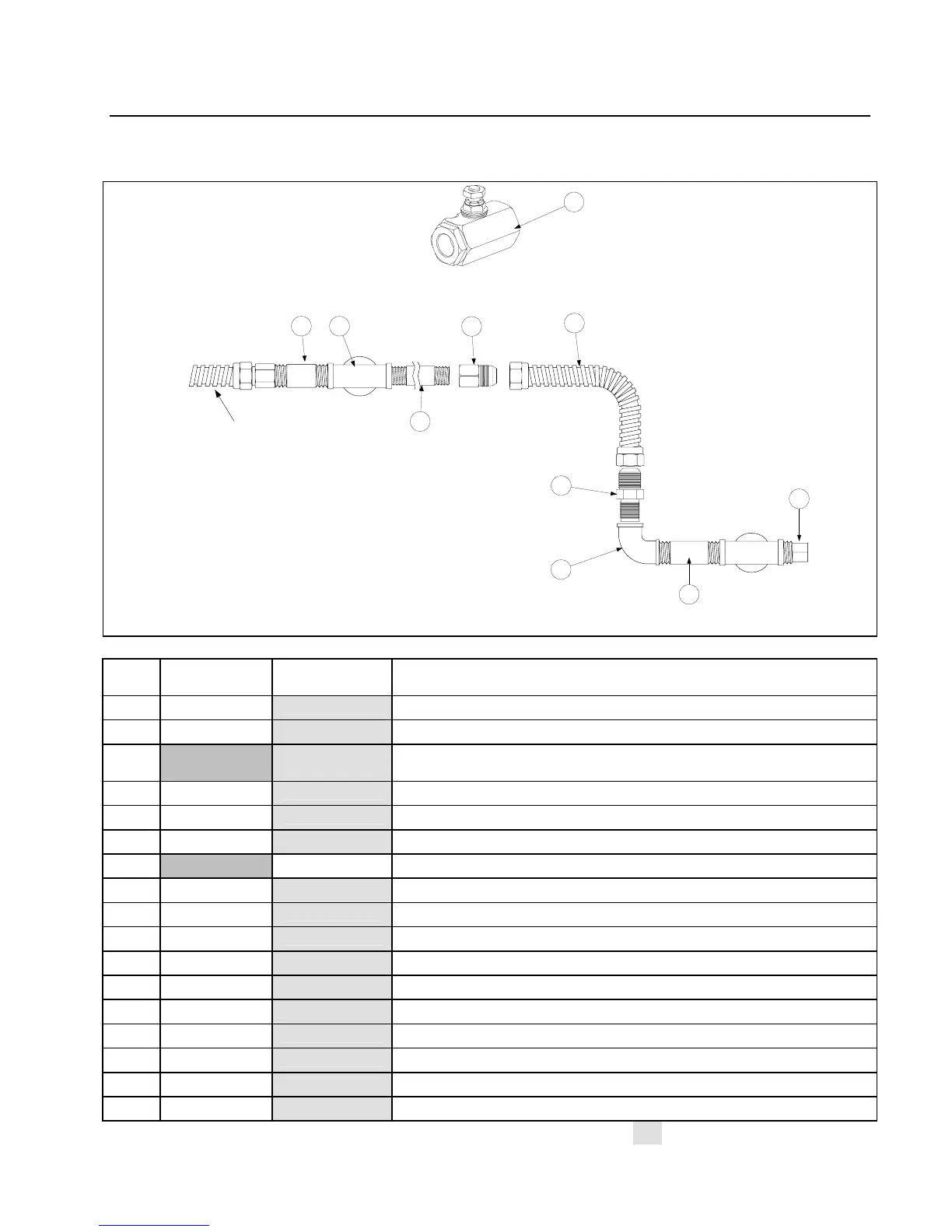

2.7.6 Oil Return Plumbing
FLEX LINE TO NEXT POT
(WHERE APPLICABLE)
OIL RETURN PLUMBING
FILTER MAGIC II (TYPICAL)
1
2
3
4
5
7
8
9
10
6
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
1 810-0278
Valve, Oil-Return- ½"
* 900-2935
Retainer, Oil-Return Valve Nut
2
Flexline, Oil-Return – Measure Flexline to Determine Length
Needed
* 810-1043
Flexline, Oil-Return- 9-½"
* 810-1055
Flexline, Oil-Return- 11-½"
* 810-1057
Flexline, Oil-Return- 13"
* 806-9438SP Flexline, Oil-Return- 14” with Male Ends
* 810-1369
Flexline, Oil-Return- 17-½"
* 810-1068
Flexline, Oil-Return- 21-½"
3 813-0087
Nipple, ½ x 1-½" NPT BM
4 813-0003
Tee, ½" NPT BM
5 813-0362
Nipple, ½ x 7-½" NPT BM
6 810-1669
Adapter, Female- 5/8 O.D. x ½" NPT
7 810-1668
Adapter, Male- 5/8 O.D. x ½" NPT
8 813-0062
Elbow, 90° ½" NPT BM
9 813-0265
Nipple, ½ x 2-½" NPT BM
10 813-0156
Plug, ½" NPT BM
* Not illustrated. Use standard part.
