Frymaster FMCFE - Euro-Look Drain Manifold Components

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-17

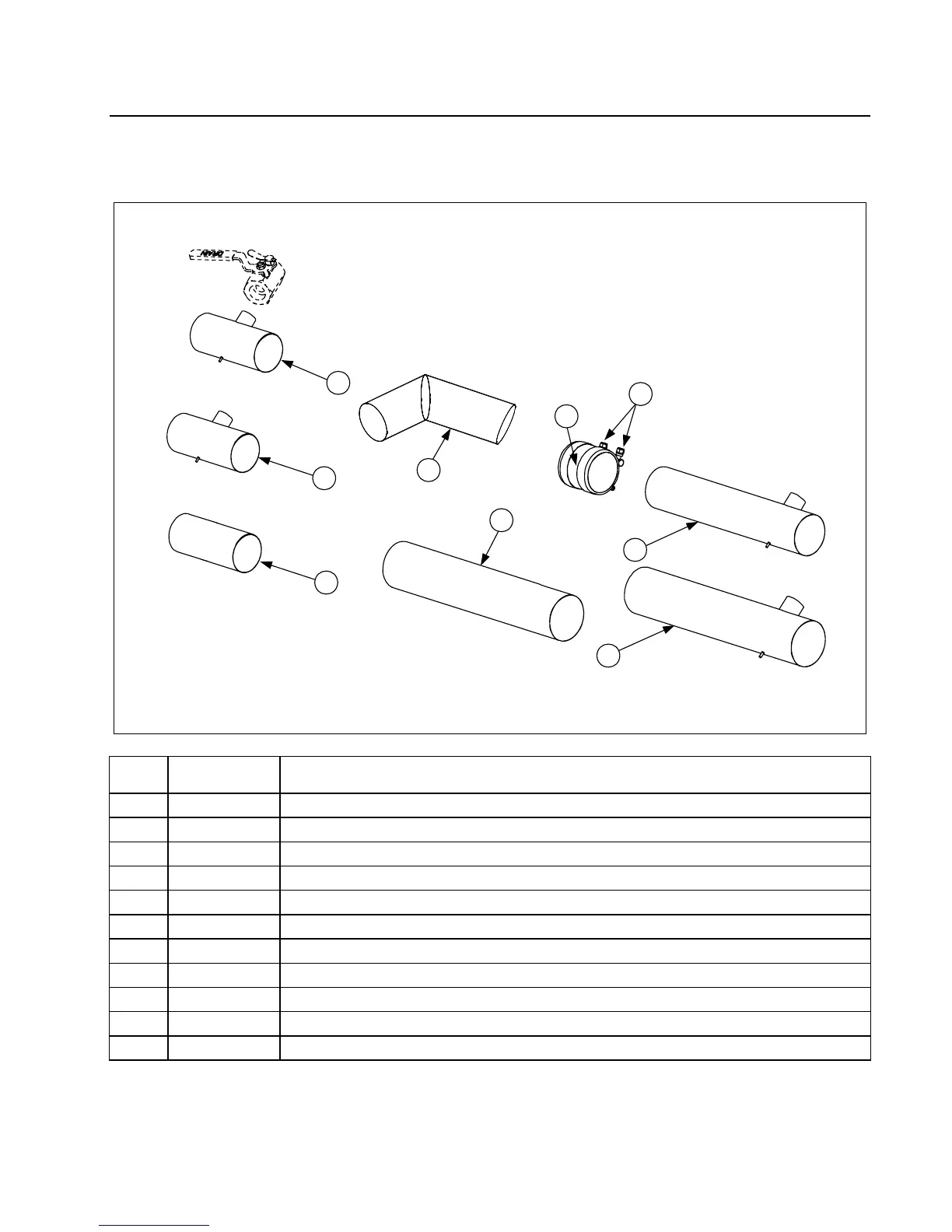

2.7.1.2 Euro-Look Drain Manifold Components
7
6
3
4
5
2
1
8
9
ITEM
EURO-LOOK
PART # **
COMPONENT
1 823-4764 Drain Tube, Left End Open /Right End Closed, Short
2 823-4763 Drain Tube, Left and Right Ends Open, Short
3 823-5031 Drain Tube, Left End Open /Right End Closed, Long
4 823-5030 Drain Tube, Left and Right Ends Open, Long
5 823-4765 Drain W/A, Elbow CF
6 816-0625 Sleeve
7 809-0969 Clamp
8 200-6974 Tube, Drain SPR CF Short
9 200-6973 Tube, Drain SPR CF Long
* KIT6033 Kit, Round Drain Clamp (2 or Item 7 and 1 of Item 6)
* 816-0630 Screw Covers
* Not illustrated. ** See page 2-16 for a standard parts list.
See page 2-27
for Euro-Look
Drain Valve
Assemblies.
