2.5 Component Shield, Filter Box Assemblies and Components
2.5.1 Component Shield Assemblies – No Interface Board

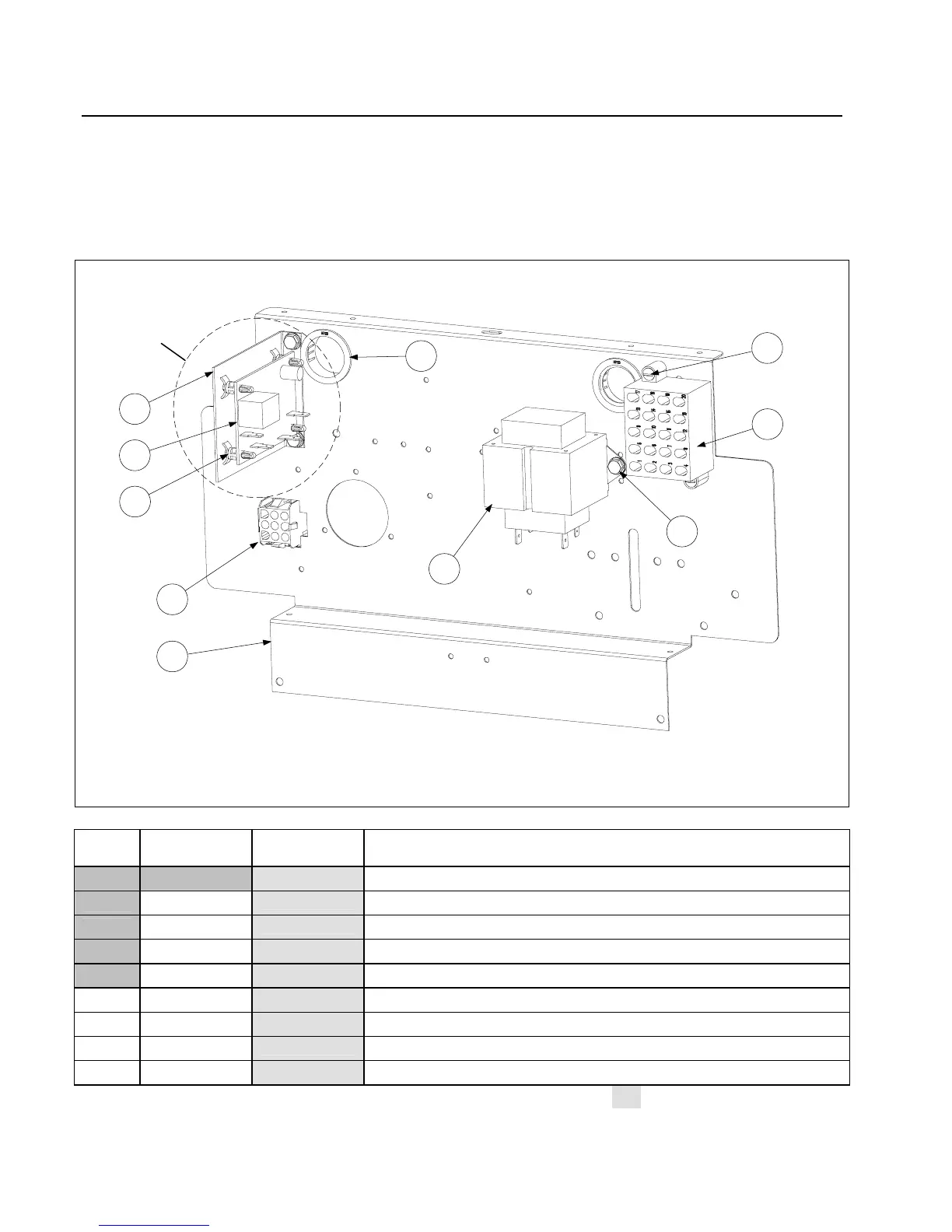

Component Shield Assemblies without Interface Boards
Timer and Bracket
Assembly is omitted on
806-4774SP and
806-4776SP
1
2
3
4
5
6
7
8
9
10
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
Component Shield Assemblies- Complete
806-4774SP
120V, 50/60 Hz, w/o Interface Board
806-4776SP
240V, 50/60 Hz, w/o Interface Board
806-4772SP
120V, 50/60 Hz, w/o Interface Board, w/Melt Cycle Timer
806-4777SP
240V, 50/60 Hz, w/o Interface Board, w/Melt Cycle Timer
1 807-0066
Block, Terminal, 20-Pin
2 807-2469
Bushing, Heyco, 1” ID
3 807-0156
Plug, 9-Pin
4 900-4340
Shield, Component
* Not illustrated.
Use standard part.
