Frymaster FMCFE - Oil Return Handle Components -Units Built April 2001 and after

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 2: PARTS LIST
2-22

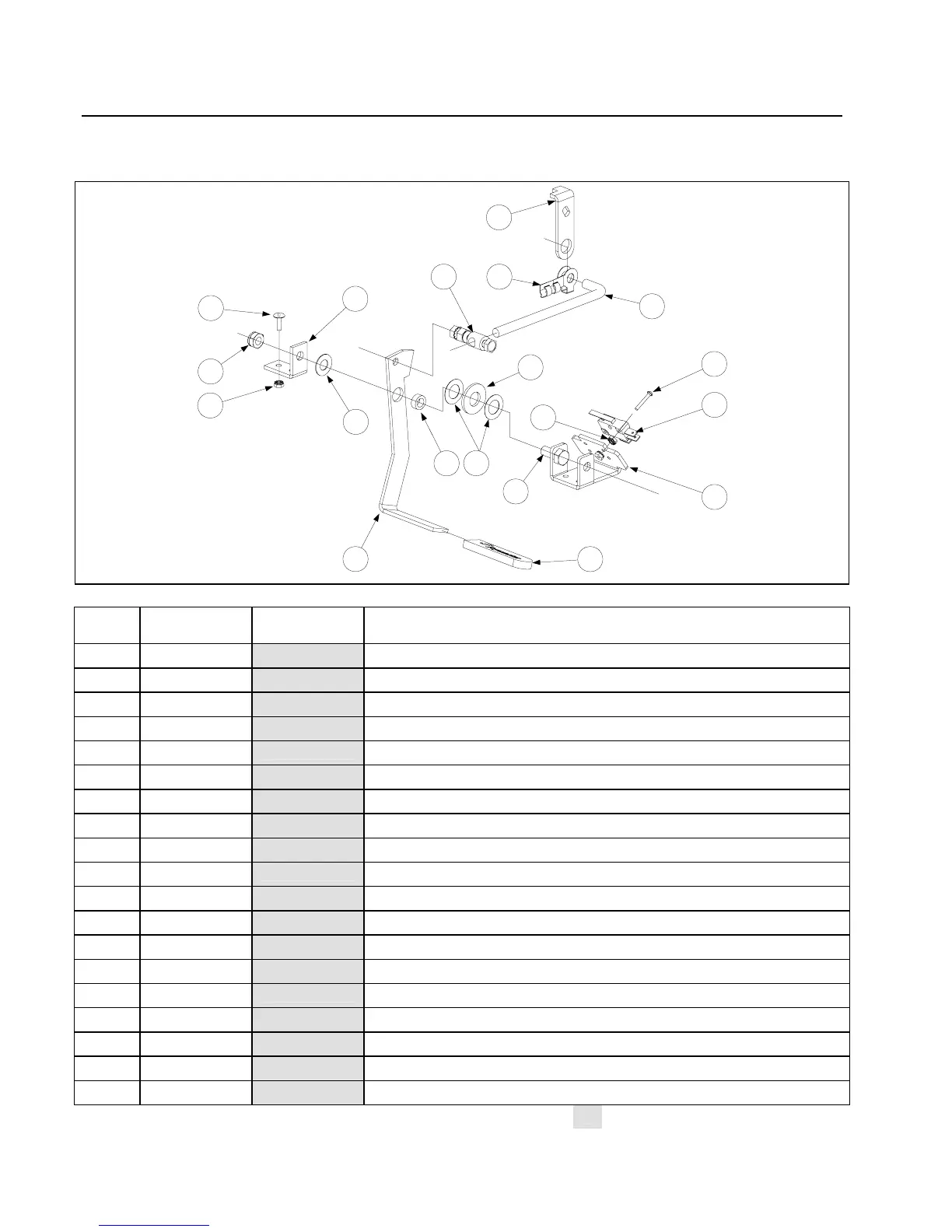

2.7.5 Oil Return Handle Components –Units Built April 2001 and After
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
1819
ITEM
STANDARD
PART #
EURO-LOOK
PART #
COMPONENT
1 807-2103
Microswitch
2 200-0821
Bracket, Microswitch
3 810-1999
Bracket, Valve Handle
4 200-0938
Handle, Oil Return
5 814-0047
Sleeve, Handle
6 900-0239
Actuator Arm, Oil Return Valve
7 200-1059
Rod, Oil Return Linkage
8 809-0200
Washer, Flat ½”
9 826-1381
Washer, ½ I.D. x 7/8 O.D.- Nylatron (Qty: 10)
10 810-0220
Spacer, Tubular- 0.493 O.D.
11 809-0142
Bolt, 5/16-24 x ¾” Hex Head
12 809-0056
Nut, 5/16-24, Hex Head, Nylon Lock
13 809-0104
Screw, 4-32 x ½” Slotted Head
14 809-0247
Nut, Keps Hex- 8-32
15 826-1359
Screw, 4-40 x ¾” Slotted Head (Qty: 25)
16 826-1366
Nut, Keps Hex, 4-40 (Qty: 25)
17 810-1165
Washer, Teflon- 0.372 I.D. x 0.753 O.D.
18 809-0601
Clip, Clevis- Oil-Return Linkage Rod
19 810-0285
Swivel Control, Oil-Return Linkage Rod
Use standard part.
