Frymaster FMCFE - Wiring Diagrams; MJCF Millivolt Wiring Diagram, Non-CE

MASTER JET CF SERIES ATMOSPHERIC GAS FRYERS
CHAPTER 1: SERVICE PROCEDURES
1-35
1.12 Wiring Diagrams

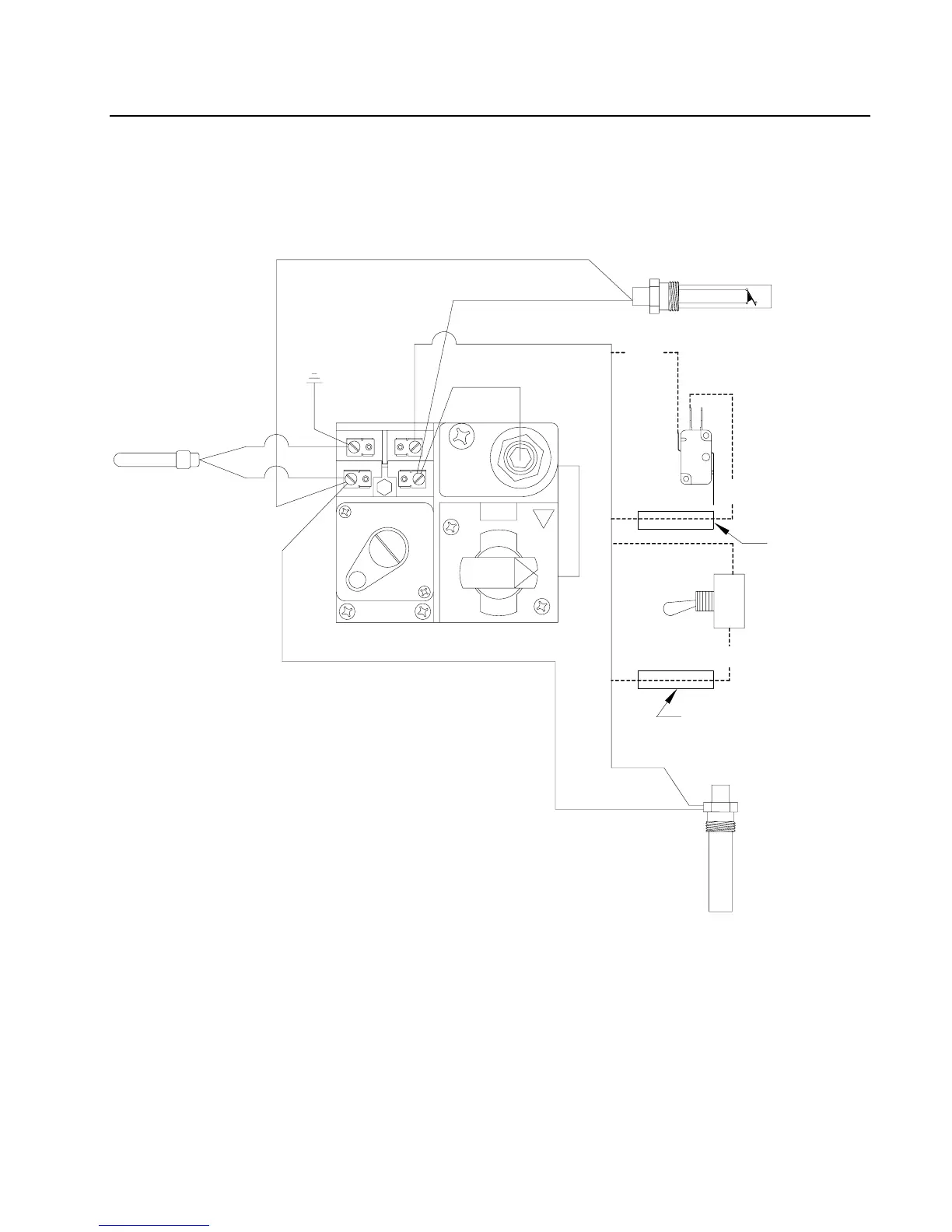

1.12.1 MJCF Millivolt Wiring Diagram, Non-CE
8050438C
HONEYWELL 1/2 P.S.I.
1/2 P.S.I.
HONEYWELL
OFF
ON
PILOT
C
HONEYWELL
1/2 P.S.I.
ADJ.
PILOT
17C
17C
12C
PILOT
GENERATOR
HIGH-LIMIT
THERMOSTAT
SAFTY DRAIN
SWITCH
(OPTIONAL)
IN-LINE
SPLICE
ON/OFF
SWITCH
(OPTIONAL)
FENWALL
OPERATING
THERMOSTAT
IN-LINE
SPLICE
