6.4 Selecting Options
6-15
Chap. 6 SELECTING PERIPHERAL EQUIPMENT
[ 1.3 ] Compact model

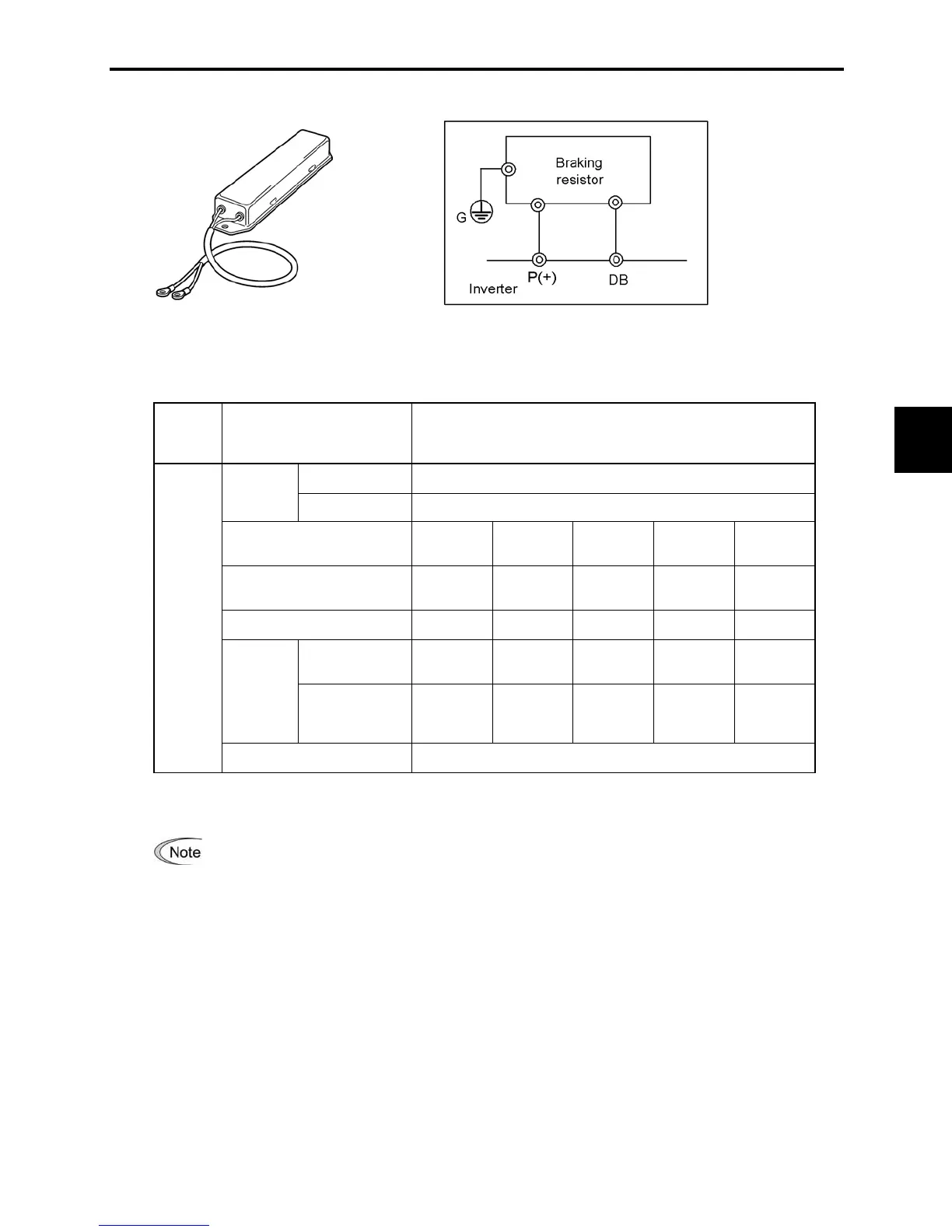

Figure 6.8 Braking Resistor (Compact Model) and Connection Example
Table 6.9 Braking Resistor (Compact Model)
Power
supply
voltage
Item Model: TK80W120:
Capacity (HP) 0.107
Resistor
Resistance (:) 120
Applicable inverter model
FRNF50
C1
-2U
FRN001
C1
-2U
FRN002
C1
-2U
FRN003
C1
-2U
FRN005
C1
-2U
Applicable motor output
(HP)
1/2 1 2 3 5
Average braking torque (%) 150 150 150 100 100
Allowable
duty cycle (%)
15 5 5 5 5
Allowable
braking
properties
Allowable
continuous
braking time
15 sec 15 sec 10 sec 10 sec 10 sec
230 V
Braking unit Not required
Notes: 1) A box (
) in the above table replaces S or E depending on enclosure.
This braking resistor is not suitable for use with the 460V class of inverters.
