8-12
Classifi-
cation
Symbol Name Functions
Related
function
codes
(For PTC
thermistor)

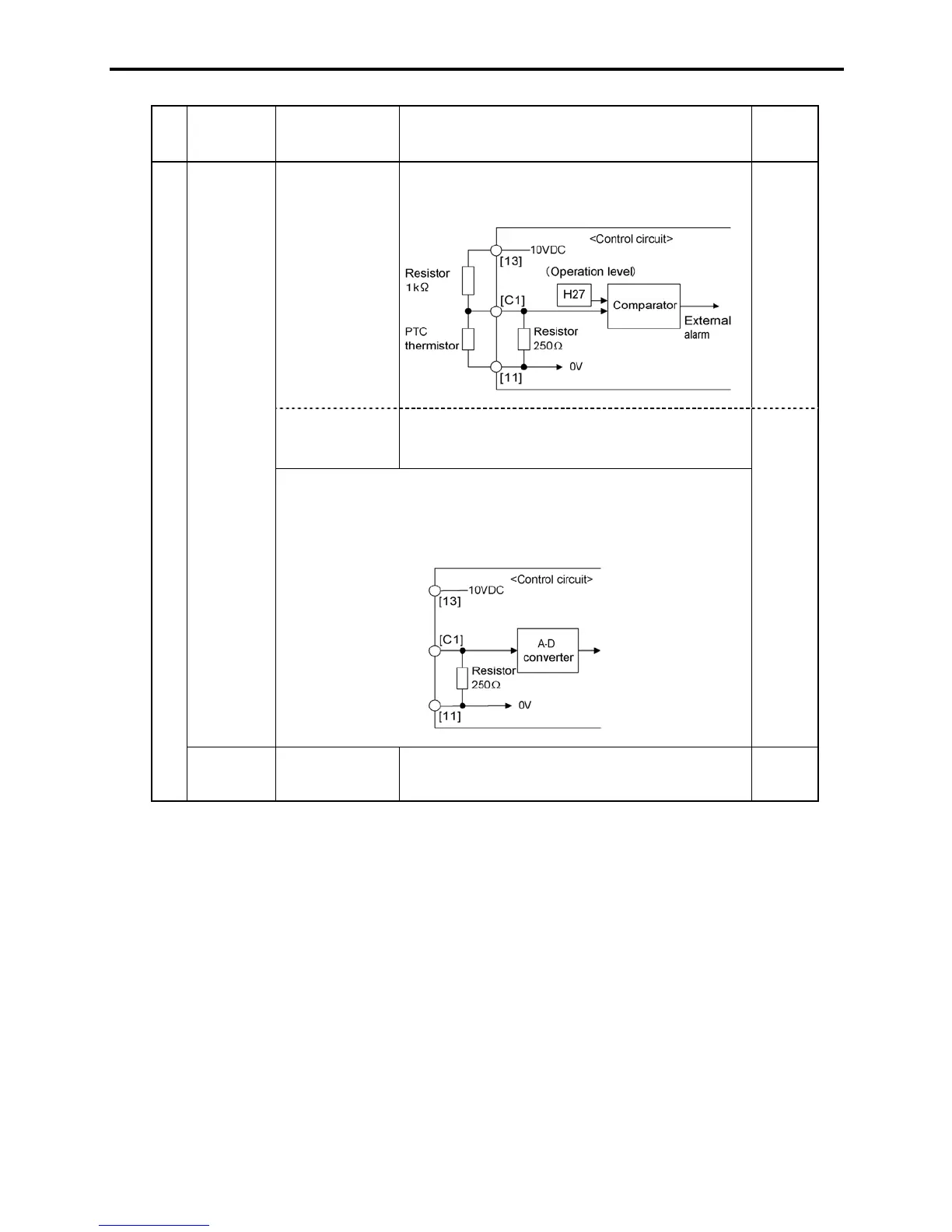

Connects a PTC thermistor for motor protection.
(Connect an 1 k: external resistor to terminal [13] -
[C1].)
H26,
H27
(Frequency
auxiliary setting)
Used as additional auxiliary setting to various main
settings of frequency.
[C1]
Electric characteristics of terminal [C1]
• Input impedance: 250 :
•
Allowable maximum input current: +30 mADC
(If the input current exceeds +20 mADC, the inverter will limit it at +20
mADC.)
E62
Analog input
[11] Analog common Common for analog input signals ([13], [12], [C1])
(Isolated from terminals [CM] and [Y1E].)
