3.3 Programming Mode
3-15
Chap. 3 OPERATION USING THE KEYPAD

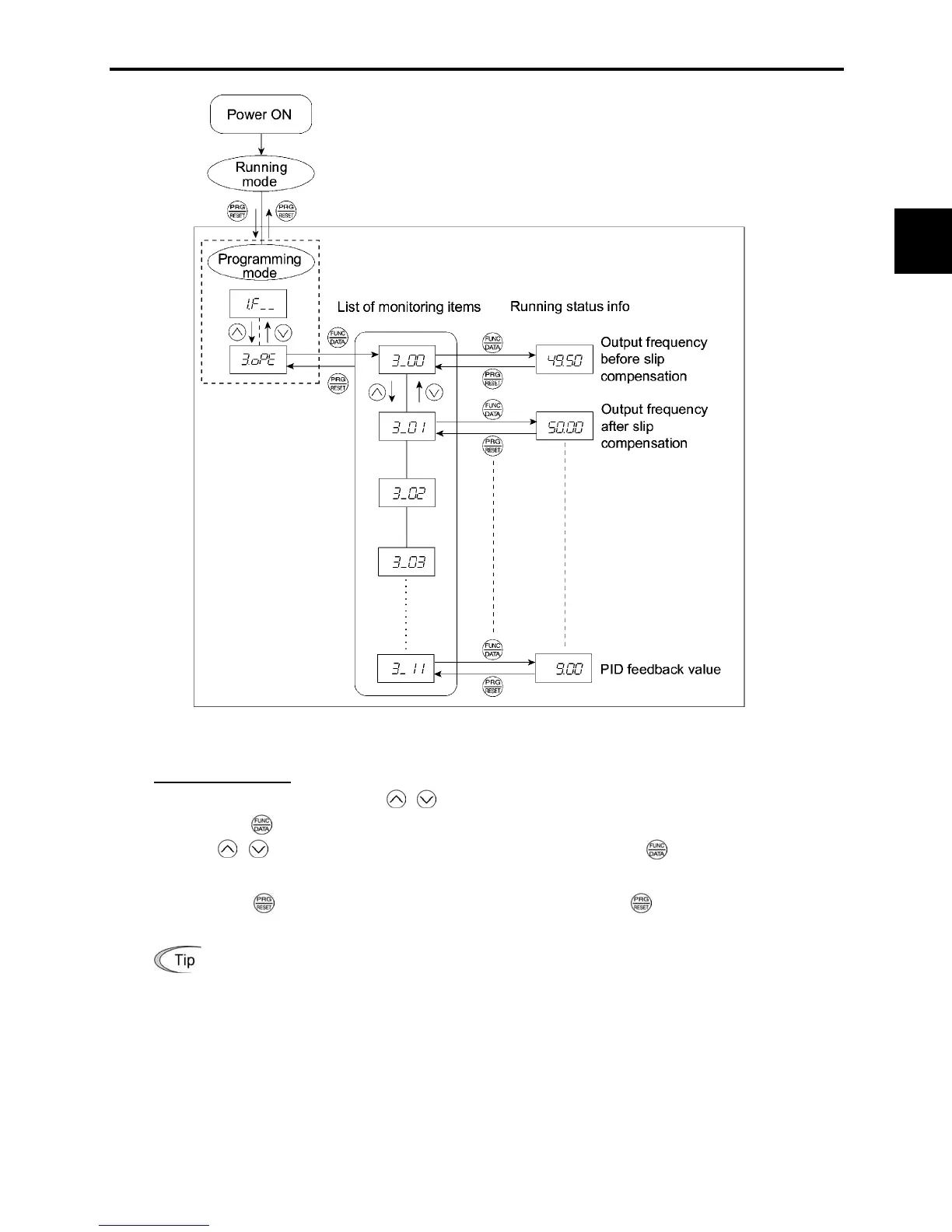

Figure 3.7 Drive Monitoring Status Transition
Basic key operation
(1) With the menu displayed, use
/ keys to select "Drive monitoring" (
.
QRG
).
(2) Press the key to display the desired code in the monitoring items list (e.g.
A
).
(3) Use
/ keys to select the desired monitoring item, then press the key.
The running status information for the selected item will appear.
(4) Press the key to return to the monitoring items list. Press the key again to return to the
menu.
If the menu cannot switch to any other one, set function code E52 to 2 (Full-menu mode).
To Next Page
