Replacing Consumables

397

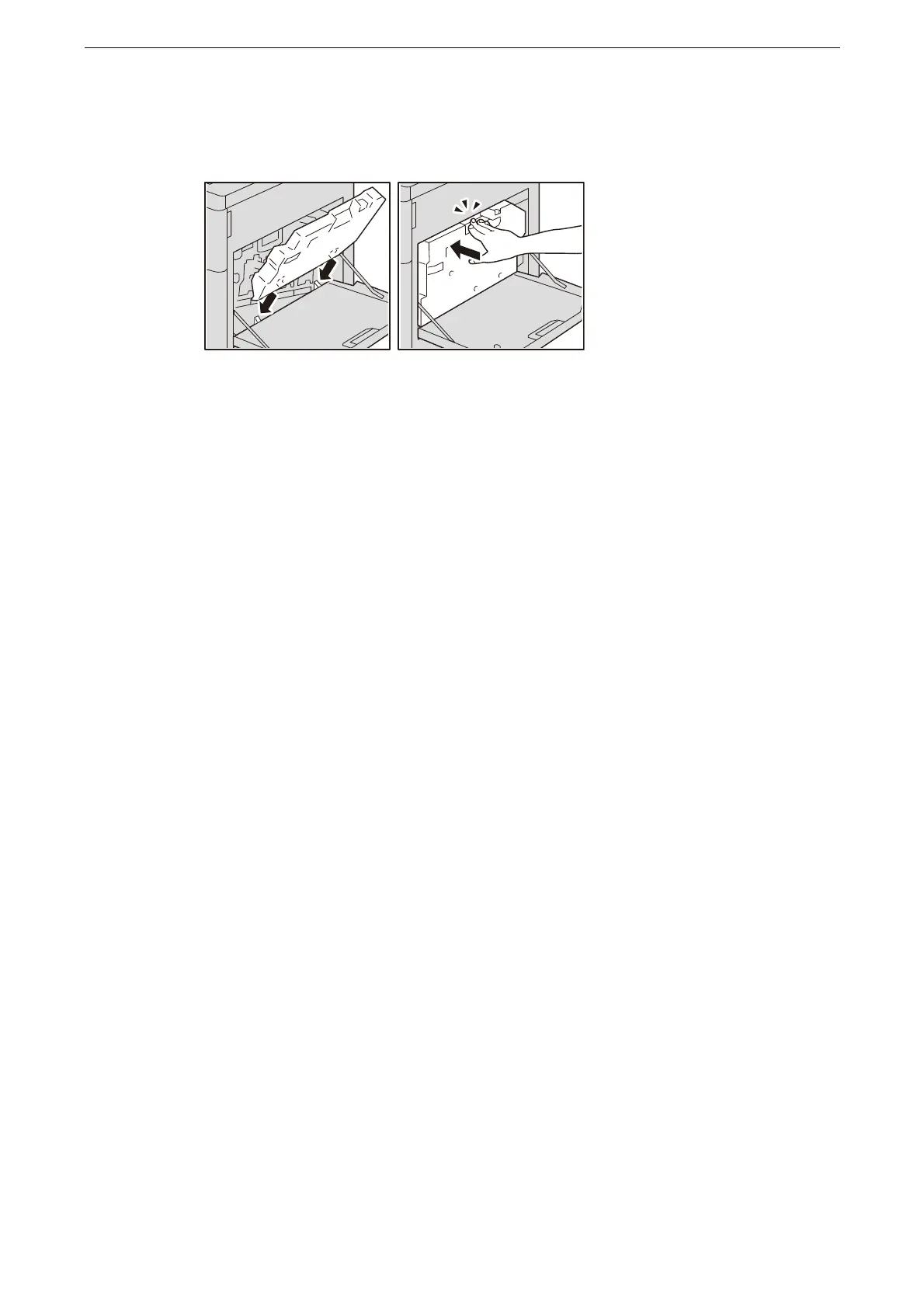

Match the holes on the bottom of the waste toner container into the protrudes of the main

unit then push the top forward until the latch clicks into place.

Confirm that the waste toner container is firmly mounted.

Close the right door.
