Installing A4 FAX LOW KIT
469
6

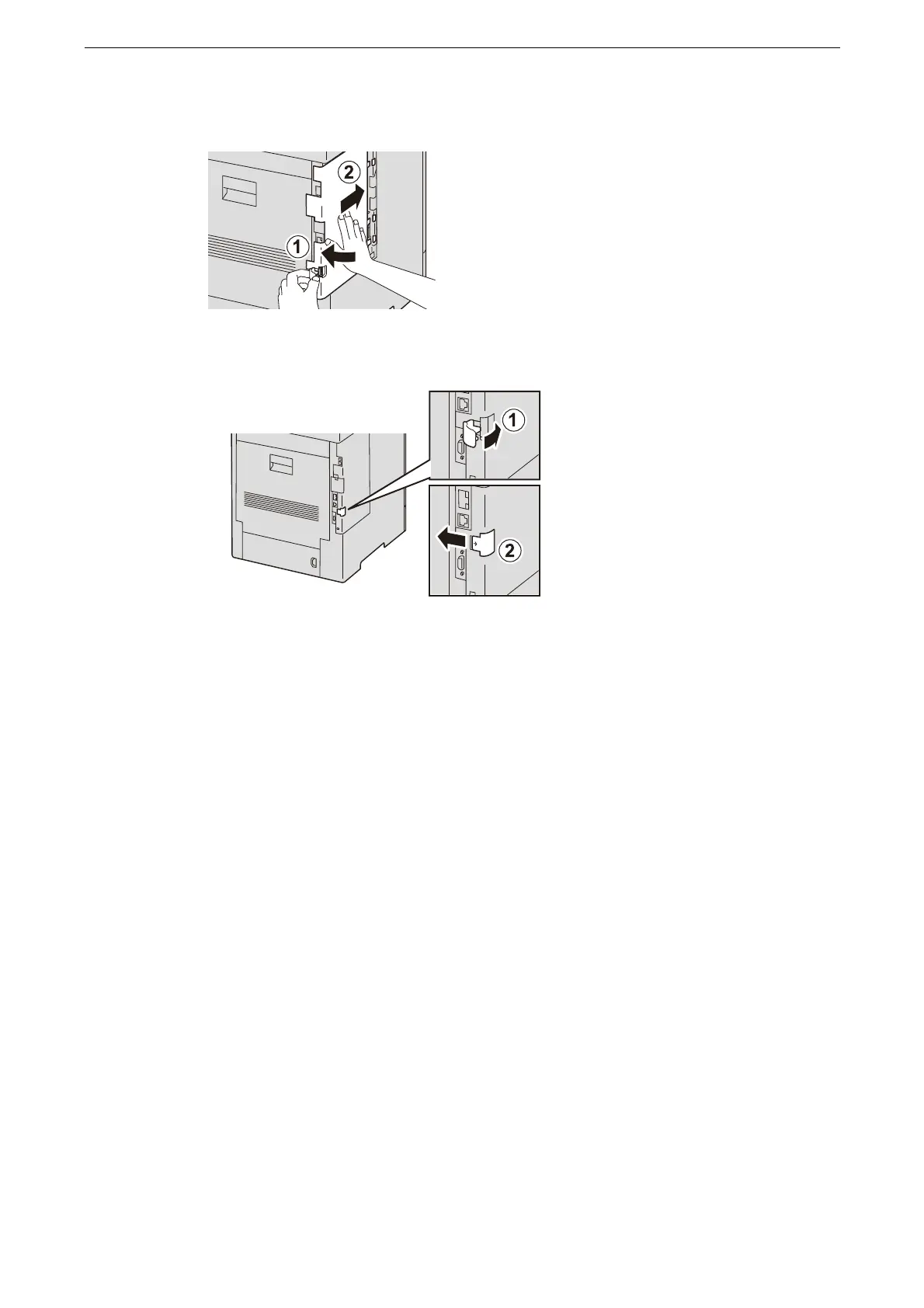

Slide the cover on the left side toward the front of the device, and insert the protrusion into
the hole on the main unit.
7
Tilt the latch forward, then slide it to the left to lock the cover.
8
Connect the power cord, and press the power button to power on.
By printing [Configuration Report], you can check whether the A4 FAX LOW KIT is installed correctly.
