2 Product Overview
40
Product Overview
2
*1 Only available when the Finisher D4 with Booklet Maker is installed.
*2 Only available when the Folding Unit (Z and C) is installed.
Note • The Finisher D4 with Booklet Maker is optional. In this guide, the Finisher D4 with Booklet
Maker is referred to as the "finisher".

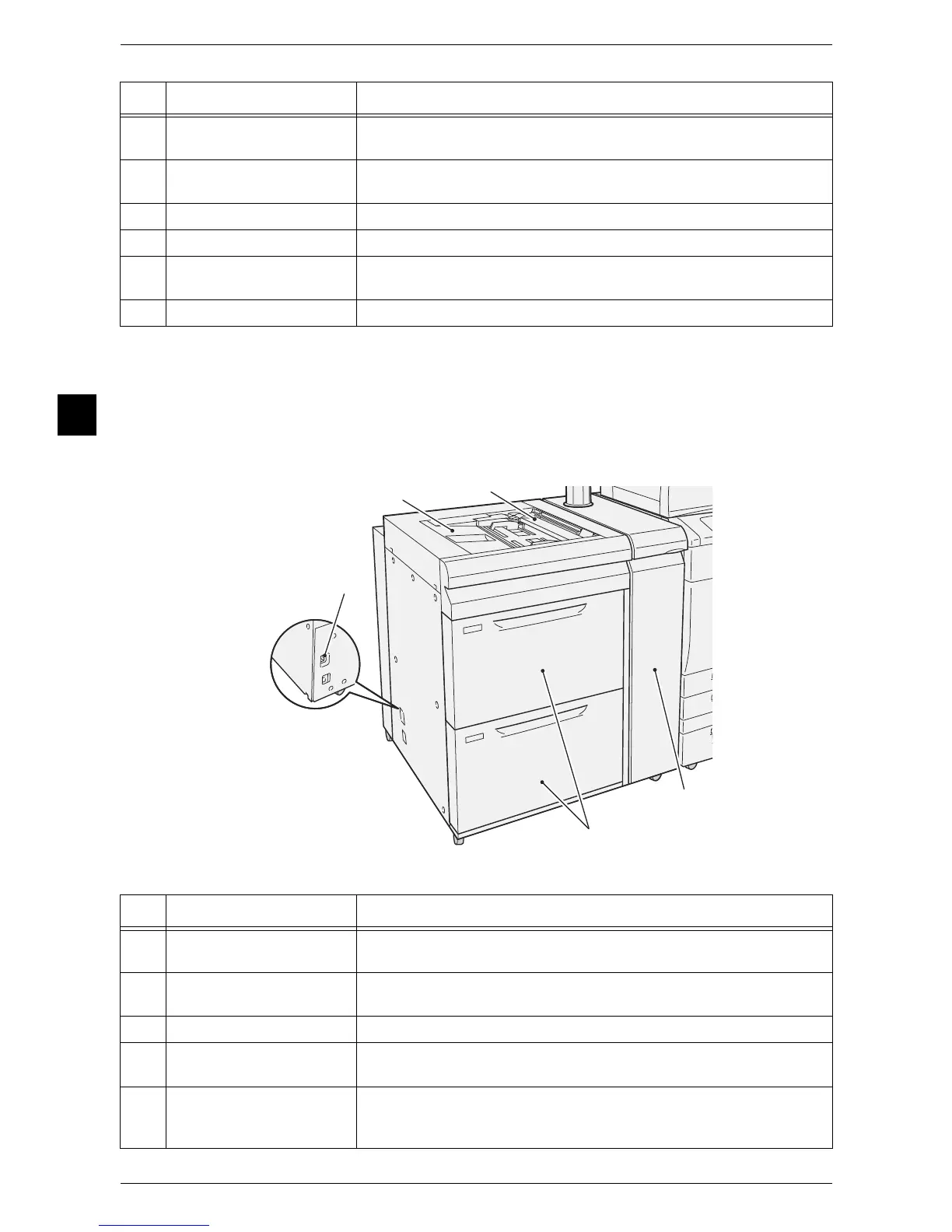

High Capacity Feeder C1-DS (optional)
11 Staple cartridge Contains staples. Remove this cartridge when you need to add staples
or clear staple jams.
12 Hole punch waste
container
Collects waste from the puncher. Remove this when emptying the
container.
13 Tri-Fold output tray
*2
Delivers tri-folded (C fold and Z fold) copies.
14 Tri-Fold output tray button
*2
Press this button to open the Tri-Fold output tray.
15 Left cover Open this cover to access the interior of the machine to clear paper
jams.
16
Interface module front cover
Open this cover to clear paper jams.
No. Component Function
1 Circuit breaker This breaker automatically turns the machine off when a current leakage
is detected.
2 Tray 5 (bypass) Use this when copying or printing on paper that cannot be loaded in
Trays 1 - 3, such as heavyweight paper or other special media.
3 Tray 5 (bypass) top cover Open this cover to clear paper jams.
4 Feeder module front cover Delivers paper fed through the High Capacity Tray or Tray 5 (bypass) to
the main unit. Open this unit when clearing paper jams.
5 High Capacity Feeder
C1-DS (Trays 6 and 7)
(optional)
Load paper here.
No. Component Function
