Machine Components
39
Product Overview
2

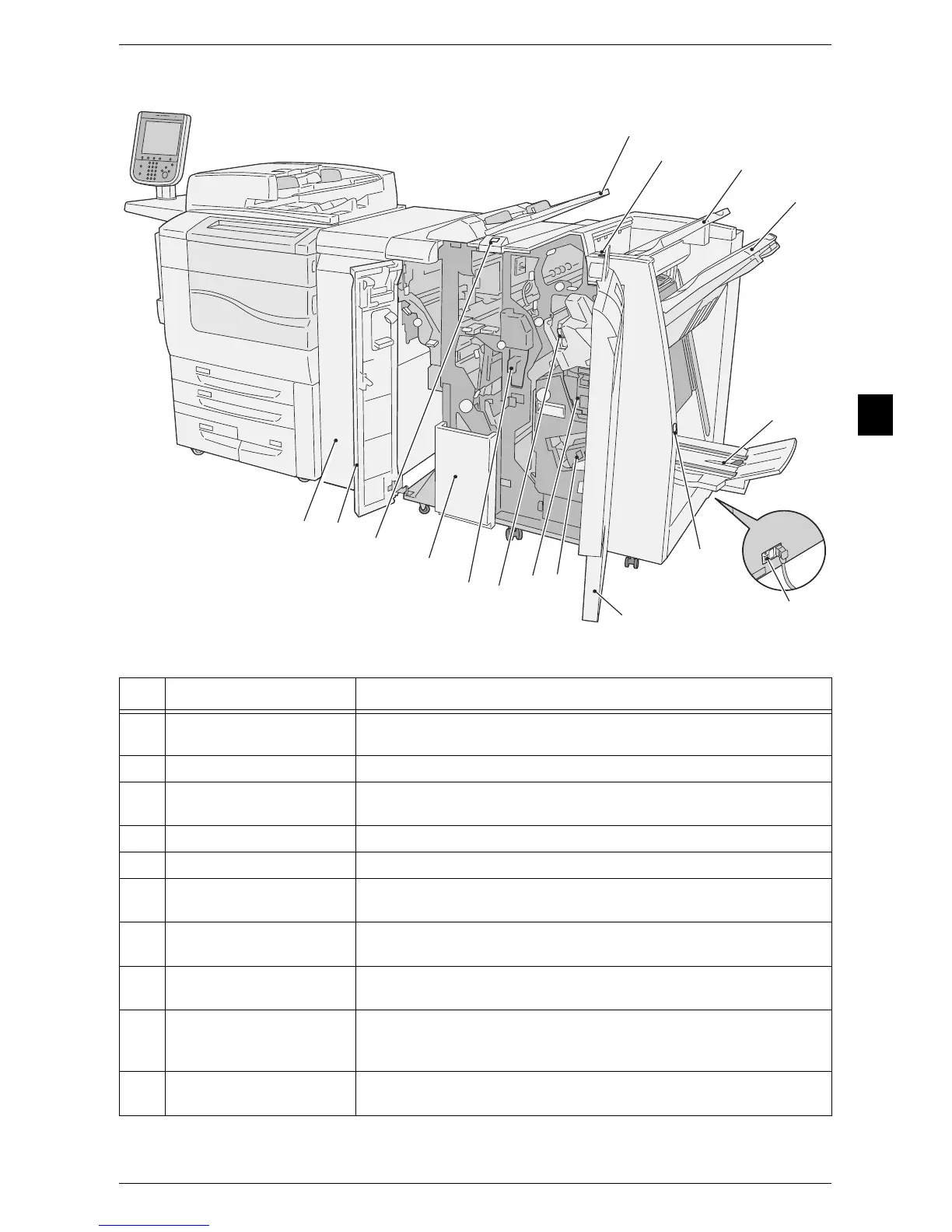

Finisher D4, Finisher D4 with Booklet Maker (optional)
No. Component Function
1 Tray 8 (Interposer) Load paper or transparencies to be used for covers or separators. The
machine does not copy on paper or transparencies loaded in this tray.
2 De-curl button Eliminates curl of paper.
3 Output tray Delivers regular copies. Also delivers copies or prints when [Collated] or
[Uncollated] is selected.
4 Finisher tray Stapled or punched paper is delivered to this tray.
5 Booklet output tray
*1
Single-folded or single-folded and stapled paper is delivered to this tray.
6 Circuit breaker This breaker automatically turns the machine off when a current leakage
is detected.
7 Booklet output tray button
*1
Press this button to move booklets that have been delivered to a
position where they can be removed.
8 Right cover Open this cover to clear paper or staple jams, replace staples, or empty
punch waste.
9 Staple cartridges for
booklet
*1
There are two staple cartridges installed for Booklet Creation (gutter).
Take the cartridges out when clearing staple jams, or when replacing
them with new ones.
10 Staple waste container Collects waste from the stapler. Remove this cartridge to replace the
staple waste container.
1
2
3
4
5
7
8
9
10
12
11
14
15
13
16
6
