3. Machine Set Up QD002-07
38 NXT Setup Manual

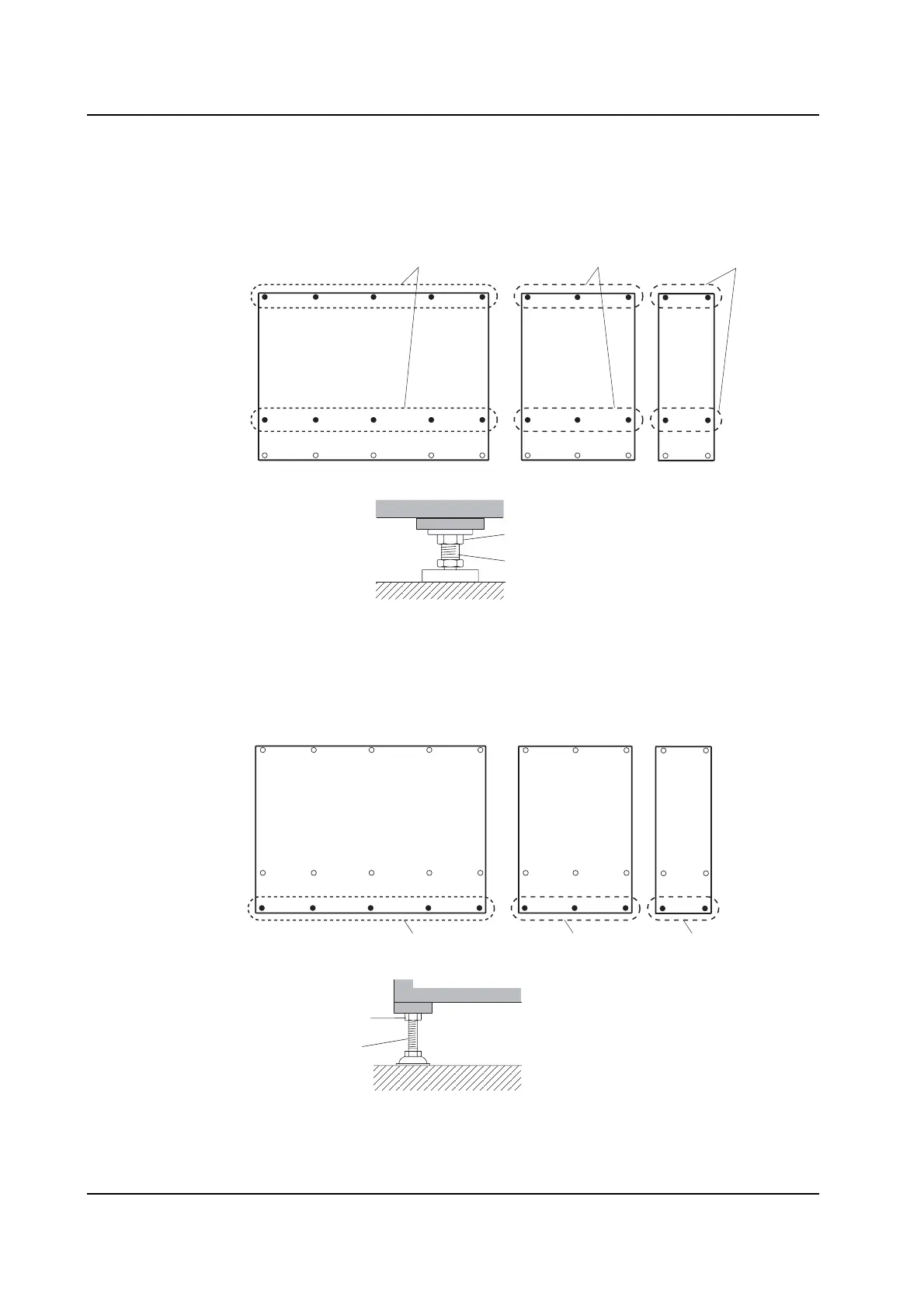

2. Loosen the lock nuts on the leveling bolts shown in the drawing below. Rotate the
leveling bolts to adjust the conveyor height so that it matches the panel conveyance
height. Adjust the height while watching the spirit levels to ensure that the bases
remain level.
3. Next loosen the nuts on the leveling bolts at the front side of the base. Rotate the front
side leveling bolts so that the machine weight is applied lightly.
Note: Avoid applying too much of the machine weight to the front side leveling bolts to the extent that the
base leveling is affected. These bolts are used as a back-up to support the bases when modules are
pulled out.
NXTSET219Ea
Leveling bolts Leveling bolts Leveling bolts
Lock nut
Leveling bolt
Front side Front side Front side
8M base 4M base 2M base
NXTSET220Ea
Leveling bolts
(base front side)
Leveling bolts
(base front side)
Leveling bolts
(base front side)
Lock nut
Leveling bolt
(base front side)
8M base 4M base 2M base
To Next Page
