FujiFilm NXT - Connecting NXT Bases

QD002-07 3. Machine Set Up
NXT Setup Manual 41
3.7 Connecting NXT Bases
Follow this procedure to connect independent NXT bases. Refer to section 3.8 "Installing
Additional Dependent Bases" for details of installing additional NXT bases.
Note: In the following explanations, the example NXT panel flow is left to right.
NXTBAS135E

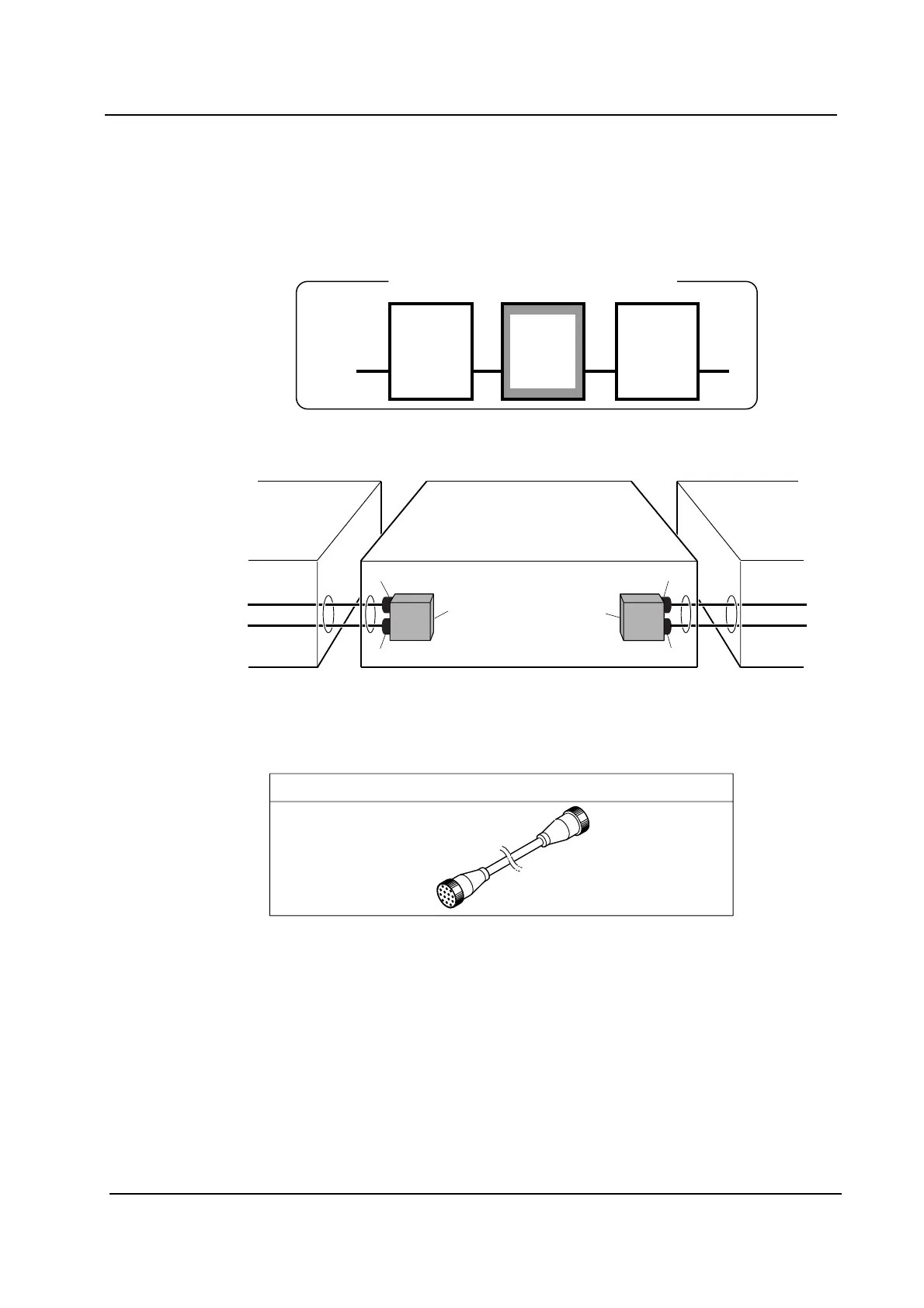

When connecting NXT bases together.
NXT
base
NXT
base
NXT
base
NXTBAS127Eb
Lane 1
Lane 2
Lane 1
Lane 2
3. Connector LANE1
4. Connector LANE2
1. Previous stage panel loading I/F box
2. Next stage panel loading I/F box
NXT base NXT base NXT base
Connecting cable for lane 1 and 2
3
3
1
4
2
4
<Previous Stage> < Next Stage>
