3.10 Tray Unit-L
Perform the following procedures to adjust the height and levelness for a new tray unit-L,
or a tray unit-L which is being used at a particular machine for the first time. Once tray unit-
L height and levelness adjustments have been made for that machine, it is not necessary
to perform adjustments again when removing or attaching the tray unit-L.
3.10.1 Adjusting the Height and the Levelness
Two level gauges are needed to perform the procedures listed below. First, perform a
preliminary adjustment of the height and levelness of the tray unit-L when it is removed
from the machine. Then, attach the tray unit-L to the machine and perform final
adjustments.
1. Release the left and right lock levers located near the bottom of the tray unit-L.
2. Turn the handle to adjust the height of the tray unit-L until the roller to match with the
groove of the part supply base.
Do not insert the tray unit-L into the NXT yet.

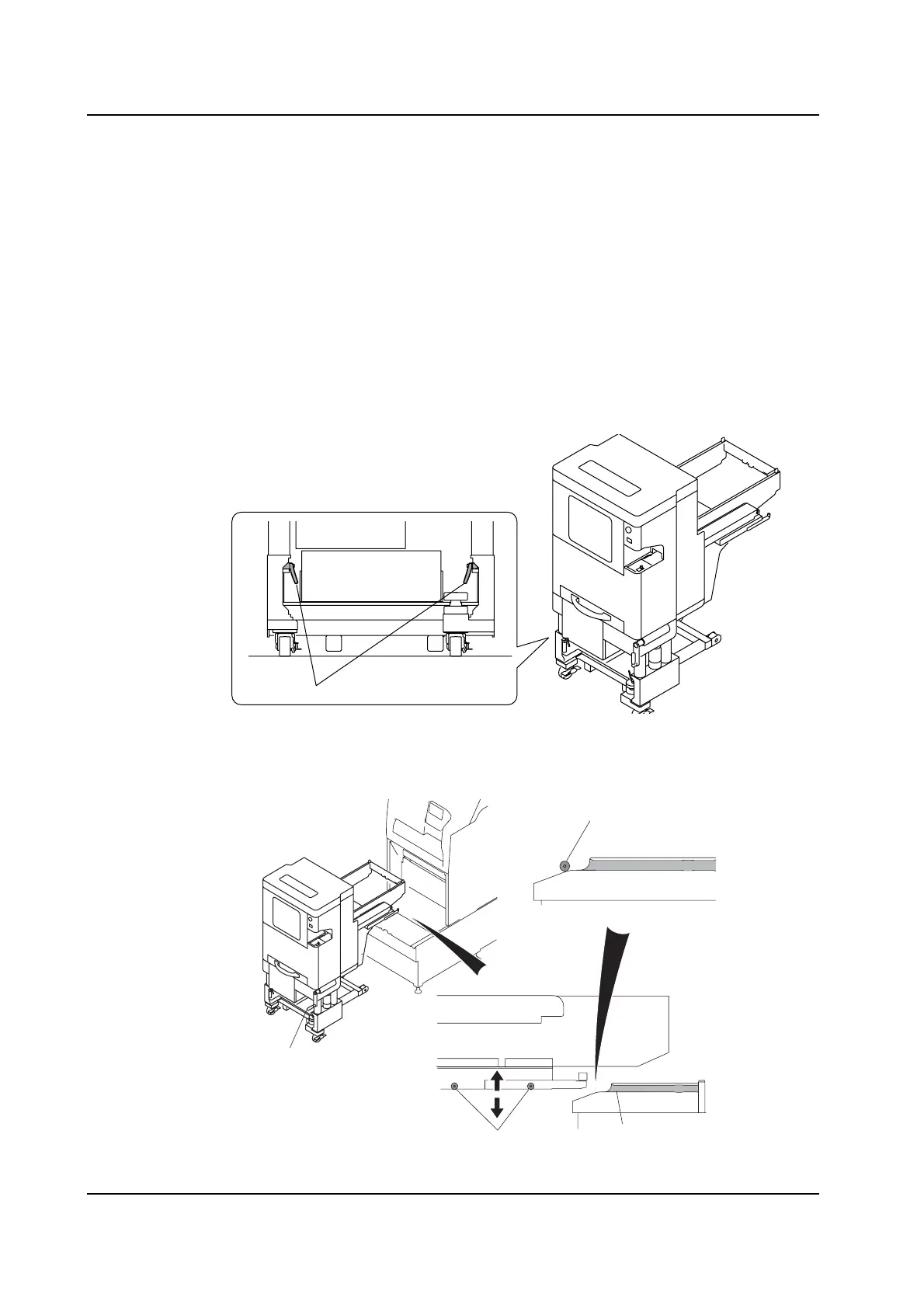

Lock levers
NXTMTU013E
Tray unit rollers
Handle
Part supply base groove
NXTMTU014Ea
Tray unit roller
