QD002-07 3. Machine Set Up
NXT Setup Manual 119

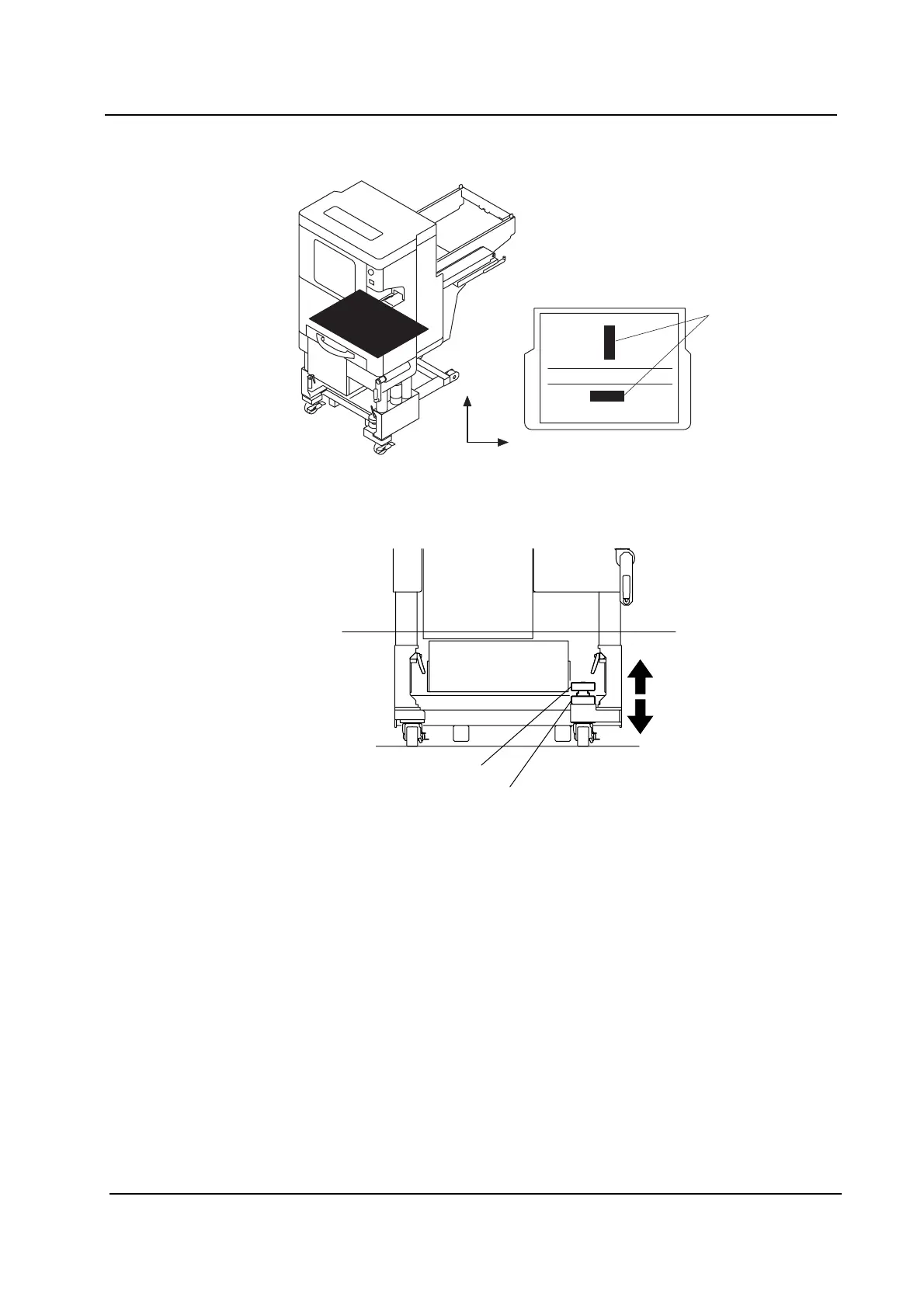

3. Place 2 levels on the lower plate of the tower inside the tray unit-L.
4. Loosen the lock knob on the bottom of the tray unit-L by turning it to the left. While
looking at a level gauge, turn the adjustment knob until the tray unit-L is level in the X-
direction.
5. With the power to the machine on, carefully insert the unit into the machine. Once fully
inserted, the tray unit-L is automatically clamped.
Door side
Levels
Y
X
NXTMTU015E
Adjusting knob
Lock knob
XX'
NXTMTU016E
To Next Page
