FujiFilm NXT - Transport Procedure

QD002-07 3. Machine Set Up
NXT Setup Manual 25

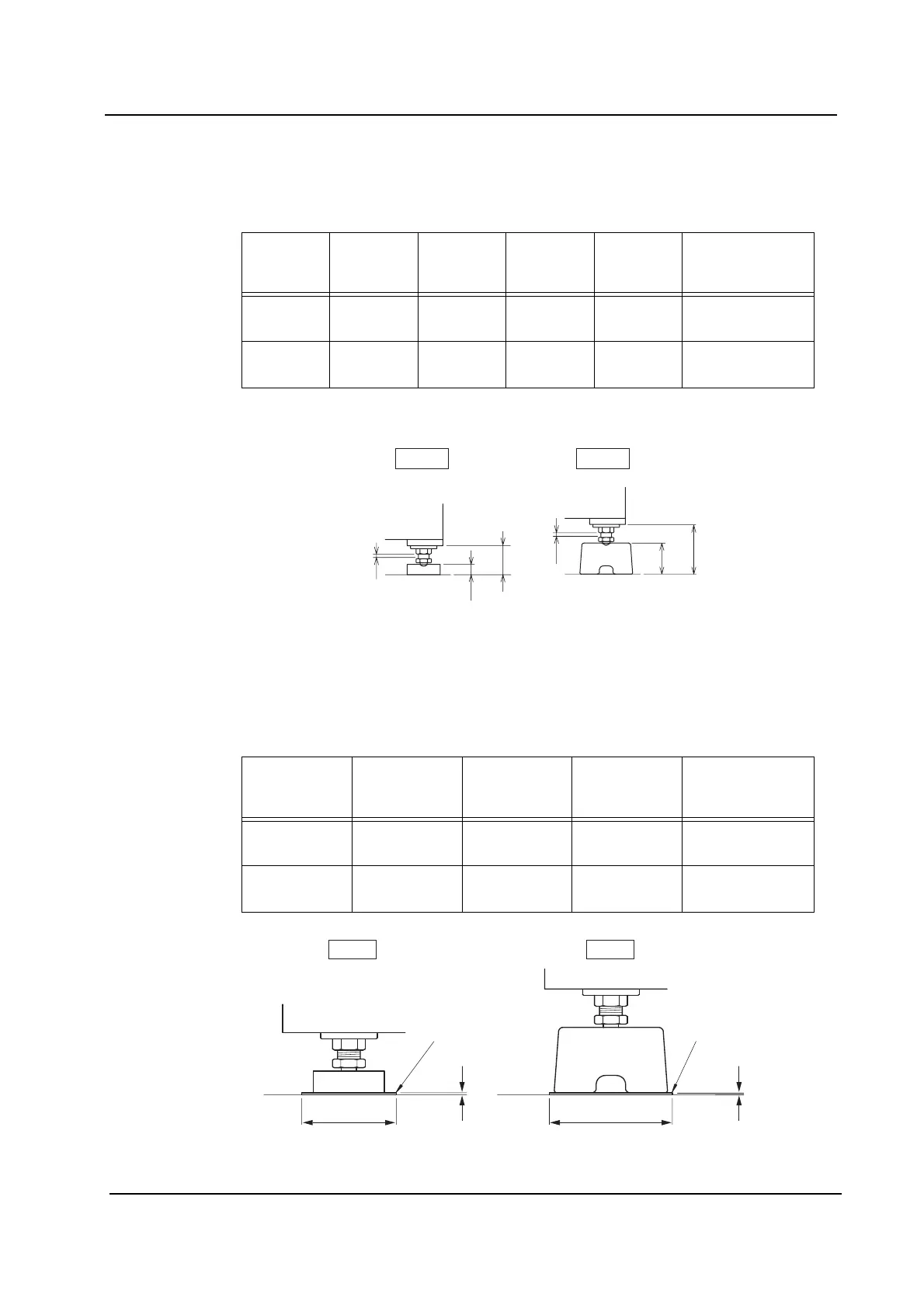

3.1.2 Transport Procedure
1. Prepare the required number of leveling sheets suitable for the panel conveyance
height.
Note: The dimensions in the drawing below with an asterisk (*) are reference values.
2. When using 4M bases independently or when connecting two 2M bases, place
adhesive sheets between the floor and the leveling sheets to prevent the bases from
shifting. Prepare the required number of adhesive sheets.
Note: When using 2M bases independently, secure the bases to the floor with anchor bolts. (Refer to 3.8.3
"Using One 2M Base".) Furthermore, multiple bases should be connected using brackets. (Refer to
3.8.13 "Fastening Extensions".)
Drawing
No.
Part
Name
No. of
Sheets/
8M Base
No. of
Sheets/
4M Base
No. of
Sheets/
2M Base
Panel
Conveyance
Height
GGA8020 Leveling
sheet
10 6 4 For H = 900
GGA8040 Leveling
sheet
10 6 4 For H = 950
Drawing No. Part Name No. of Pads/
4M Base
No. of Pads/
2M Base
Panel
Conveyance
Height
PG01890 Anti-vibration
pad
64For H = 900
PG01900 Anti-vibration
pad
64For H = 950
NXTSET001c
25
70*
8.4*
H=900
75
120*
8.4*
H=950
100 130
Anti-vibration pad
(PG01890)
Anti-vibration pad
(PG01900)
t = 1
t = 1
NXTSET017Ea
H=900 H=950
