QD002-07 3. Machine Set Up
NXT Setup Manual 47
3.8.3 Using One 2M Base
Installing the Base

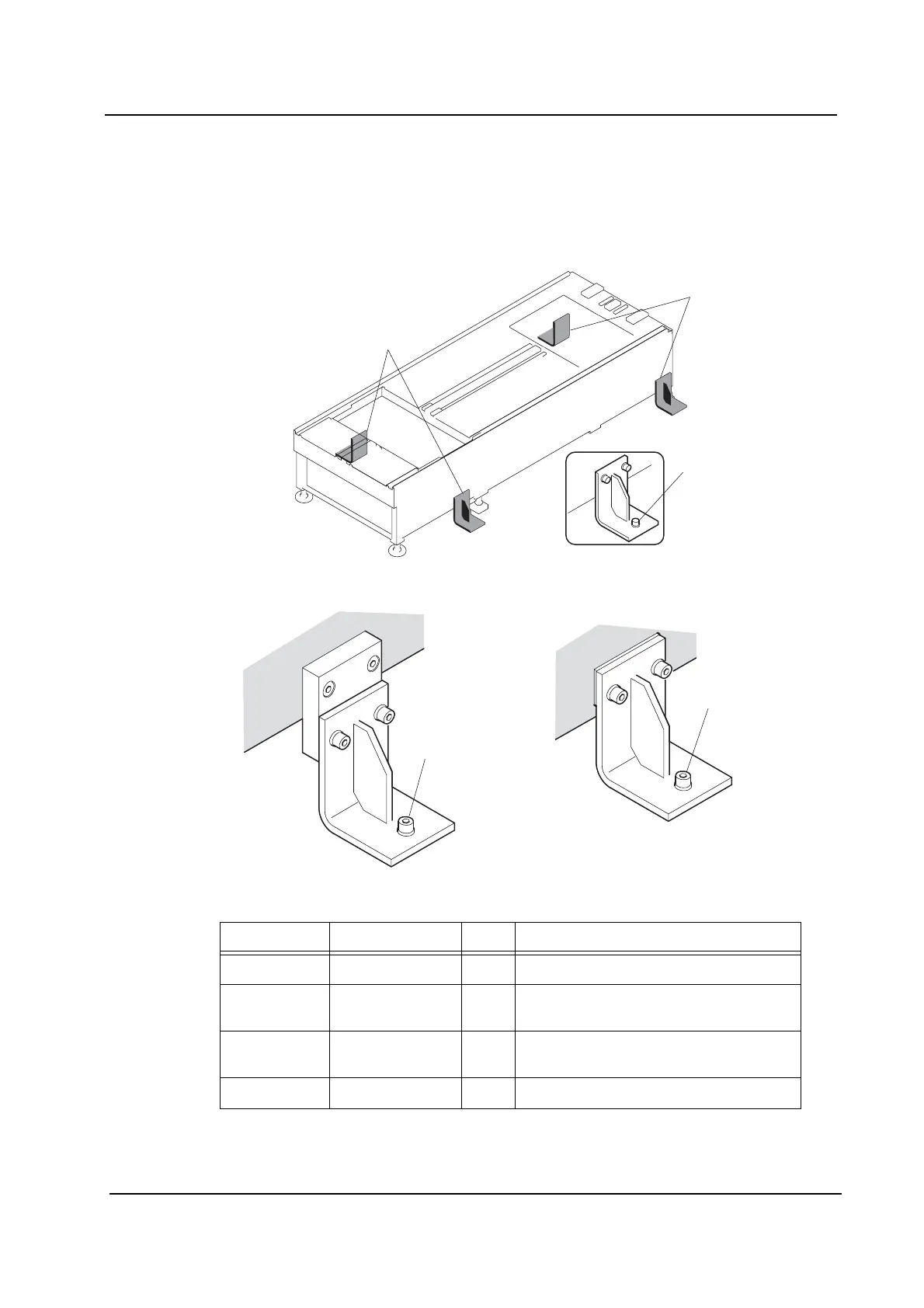

Carry out leveling, and then fasten the 2M bases to the floor at the positions shown in the
following diagram.
Anchor bolt
Bracket
Bracket
NXTSET015E
Anchor bolt
Anchor bolt
H = 950 mm
*H is the height from the floor to the level of panel conveyance.
H = 900 mm
NXTSET016E
DWG. No. Description Qty. Remarks
PB18723 Bracket 4 –
PB24701 Spacer 4 Not required on bases retrofitted for
side cover interference prevention.
PB21792 Spacer 4 Required when the panel conveyance
height is 950 mm.
H5123B Anchor bolt 4 9-6-5-M10 (cut anchor)
To Next Page
