3.8.2 Pneumatic Connections

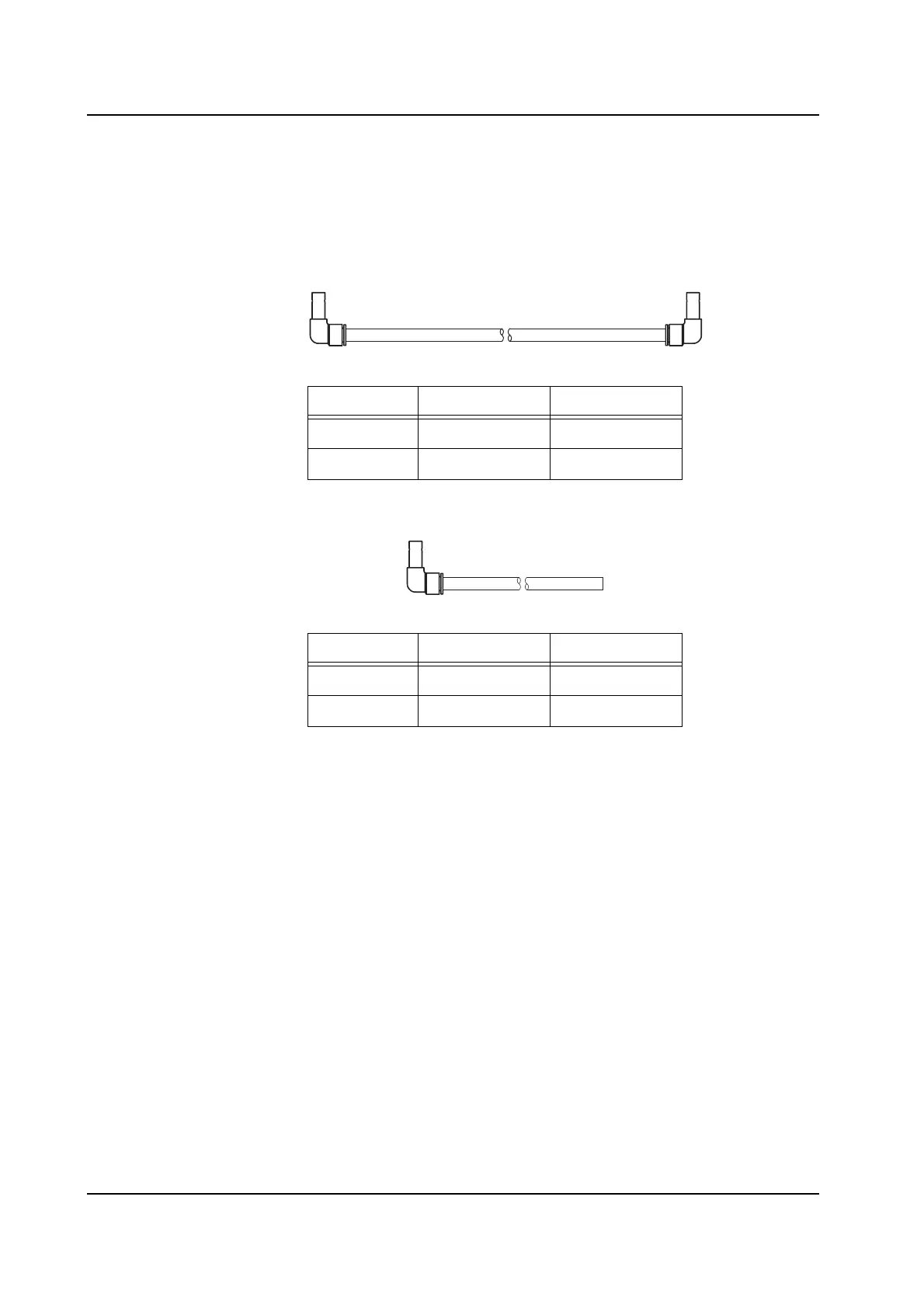

The type of pneumatic tube (as shown below) used, and number required to connect the
air supply between bases differs depending on the base extension pattern used. Refer to
the extension configuration for details of which type, and how many tubes are required.
T1-tube
T2-tube
DWG. No. Description Qty.
PZ16570 Tube 2
A40687 Elbow 4
NXTSET037
DWG. No. Description Qty.
PZ11190 Tube 2
A40687 Elbow 2
NXTSET038
