FujiFilm NXT - Leveling the Machine; Procedure

QD002-07 3. Machine Set Up
NXT Setup Manual 37
3.5 Leveling the Machine
Use spirit levels to keep the bases level and adjust the conveyor height so that it matches
the panel conveyance height.
3.5.1 Procedure
1. Pull out a module and place spirit levels in both the X- and Y-directions at the
measurement position (polished surface) at the rear of the machine.
WARNING
There is a limit to the number of modules that can be pulled out
safely at the same time. (Maximum: Four M3 modules on an 8M
base, two M3 modules on a 4M base, or one M3 modules on a 2M
base.)
If the maximum is exceeded, the entire machine may fall over to the
front, possibly resulting in serious physical harm. This is
especially true when the front leveling bolts have not been
adjusted.

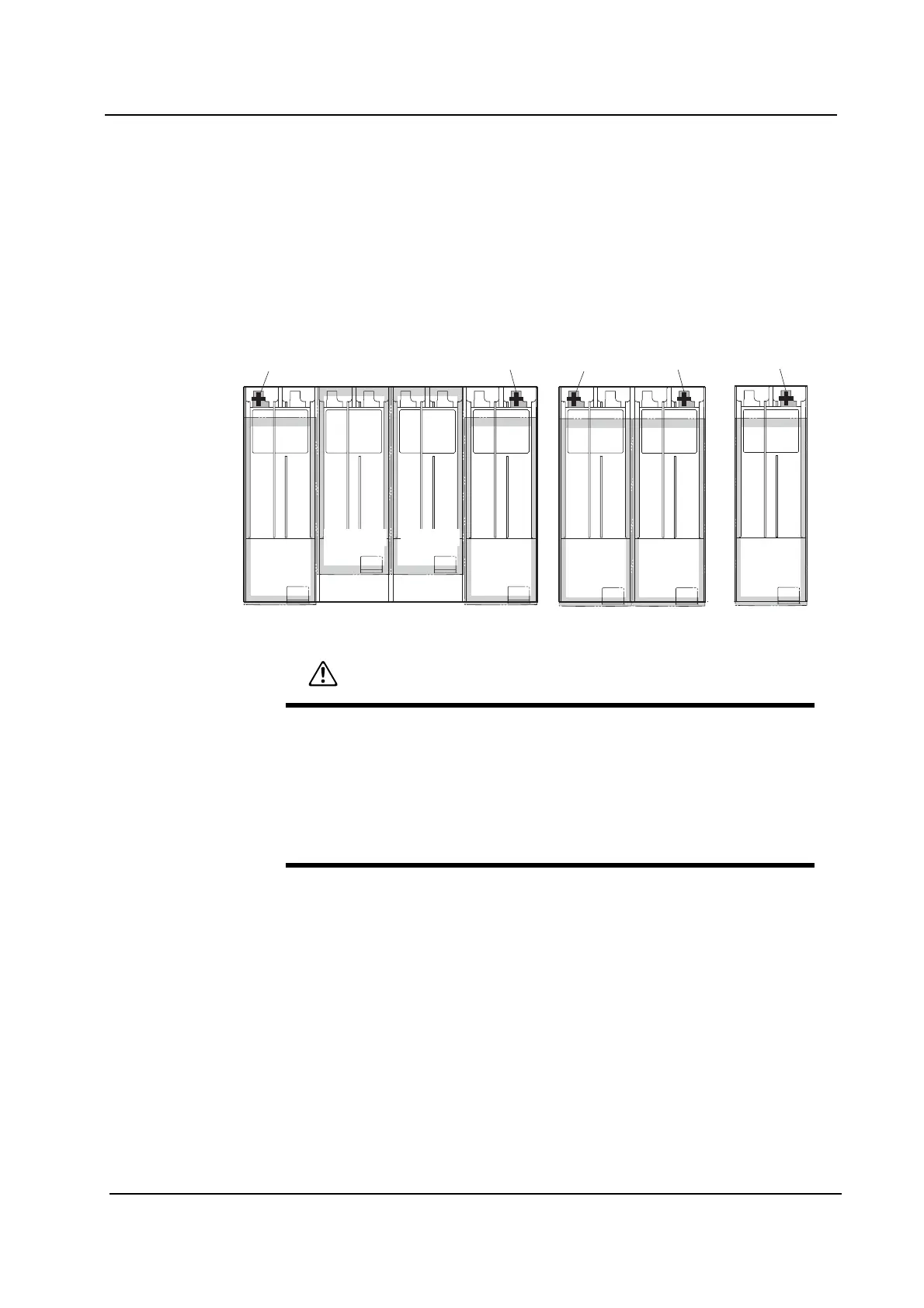

<8M Base>
Spirit levelSpirit level
Module
Module
<4M Base>
Spirit levelSpirit level
Module Module
Module Module
NXTSET003Ec
<2M Base>
Spirit level
Module
